Hair Straightener 7C 110V PTC Thermistor 16mm Yellow Insulating Thin Film Thermistor

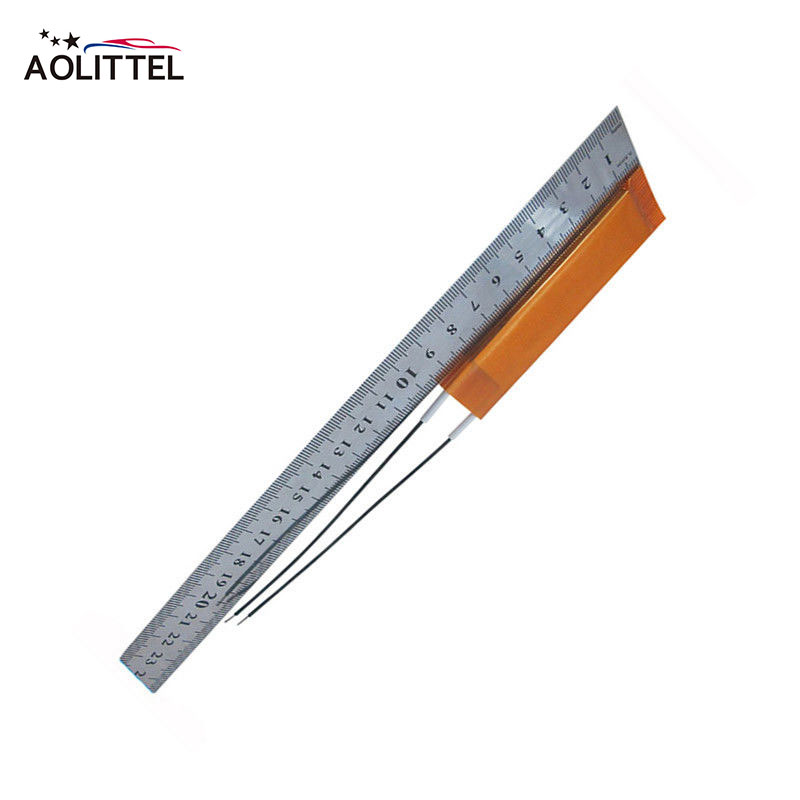

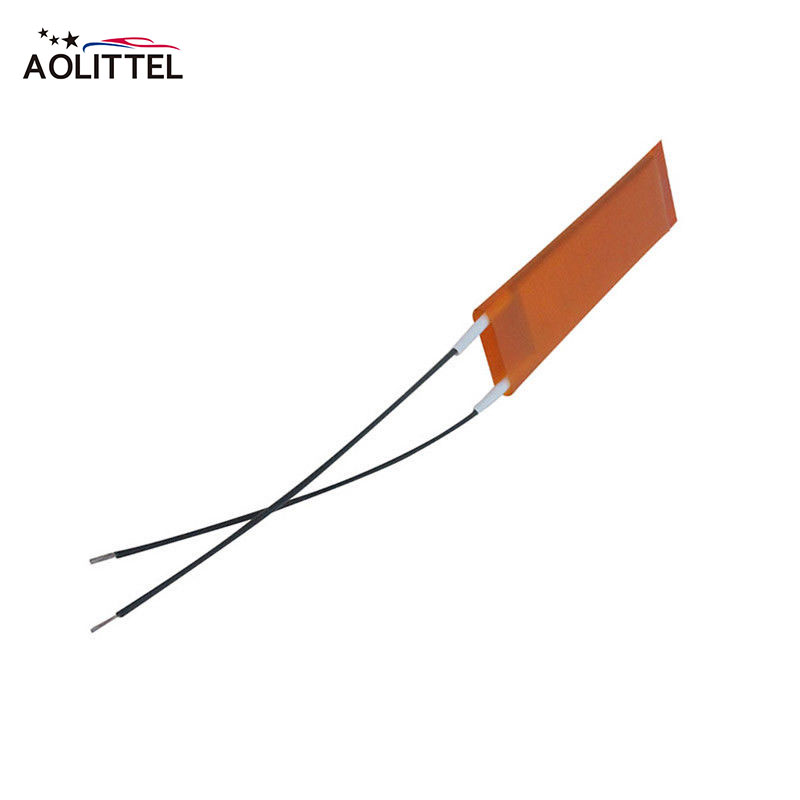

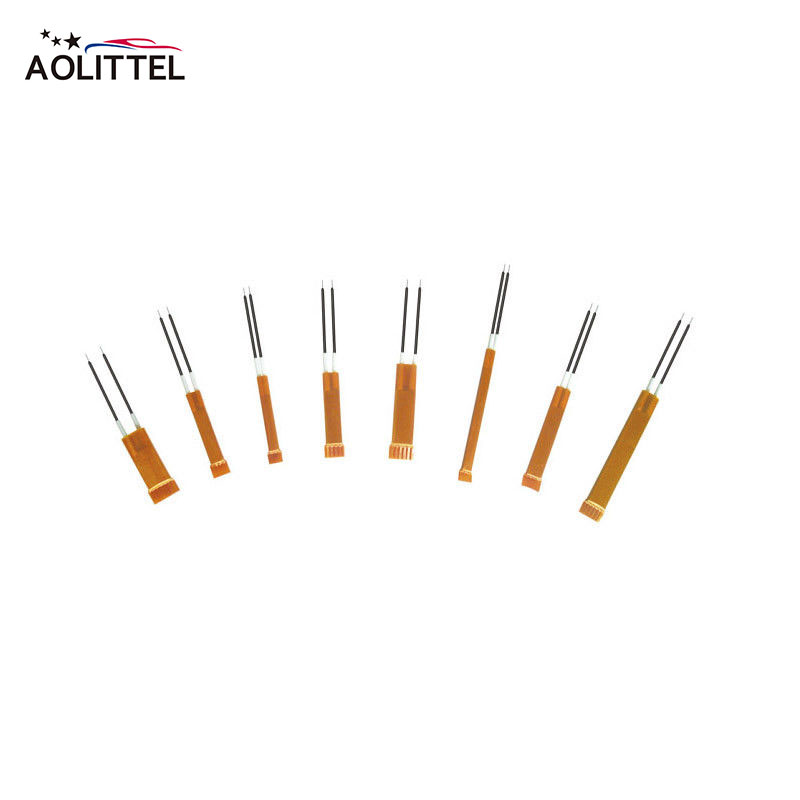

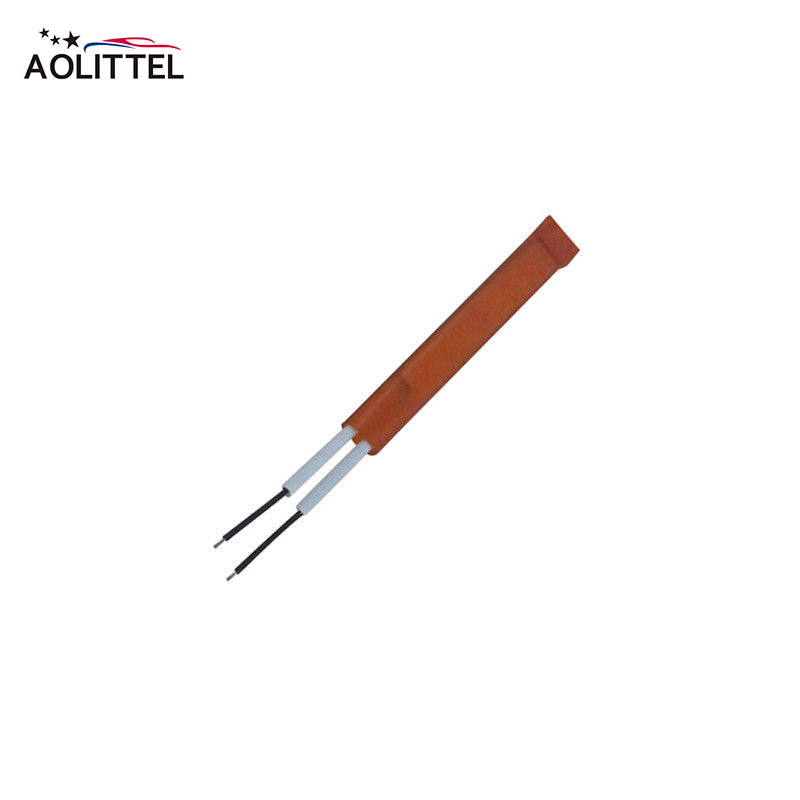

Hair Straightener 7C 110V PTC Thermistor 16mm Yellow Insulating Thin Film Thermistor Hair Straightener 7C 110V PTC Thermistor 16mm Yellow Insulating Thin Film Thermistor Hair Straightener 7C 110V PTC Thermistor 16mm Yellow Insulating Thin Film Thermistor Hair Straightener 7C 110V PTC Thermistor 16mm Yellow Insulating Thin Film Thermistor Hair Straightener 7C 110V PTC Thermistor 16mm Yellow Insulating Thin Film Thermistor

Hair Straightener 7C 110V PTC Thermistor 16mm Yellow Insulating Thin Film Thermistor

Product ID : Yellow Insulating Film Wired PTC Thermistor
Product Tags :
Product Attributes :

Yellow Insulating Film Wired PTC Thermistor 110V 240V Heater For Hair Straightener



I General Of The Yellow Insulating Film Wired PTC Thermistor



That the PTC core series(with insulated paper) is one kind of surface insulation new model PTC fever heat body. Metal electrode having assembled a pair of belt fuse in two flanks side of average PTC component, yellow paper of insulation , structure are still simple in the metal electro de outward appearance on envelop; Unnecessarily plus ch-arging the temperature device for being Okconstant temperature fever heat and the insulation intensity are high , reliable , sustainable safe the power sta- bility generating heat , usage voltage range are broad , life time is long, another external form the dim- ension is nimble various, may need according to customer reality book make various type specification.

Product Description

Process flow: Weighing → Ball Milling → Drying → Pre-sintering Synthesis → Weighing → Secondary Ball Milling → Drying and Granulating → Forming → Sintering → Upper Electrode → Inspection → Packaging





II Application Of The Yellow Insulating Film Wired PTC Thermistor



► Hair straightener

► Hair crimper

► Wax melting heater

► Vapor generator
► Humidifier

► Water boiler

► Liquid warmer

► Coffee warmer
► Polymer press-coating heater

► Hot glue gun

► Hocolate extruder
► Shoe dryer

► Hand/foot warmer

► Massager

► Physical therapy heater.





III Structure Of The Yellow Insulating Film Wired PTC Thermistor



Hair Straightener 7C 110V PTC Thermistor 16mm Yellow Insulating Thin Film Thermistor 1





IV Universal Product Specification - Inflexibility heater



Hair Straightener 7C 110V PTC Thermistor 16mm Yellow Insulating Thin Film Thermistor 2

Hair Straightener 7C 110V PTC Thermistor 16mm Yellow Insulating Thin Film Thermistor 3

Part number

Surface temperature

/℃

Length Width Thickness High pot /V

Rate voltage

/V

/mm /mm /mm
YD-75CL16W11T3.5-120VK 75 16 11 3.5 3750 100~120
YD-80CL16W11T3.5-220VK 80 16 11 3.5 3750 220~240
YD-105CL15W9T3.3-220VK 105 15 9 3.3 3750 100~240
YD-180CL24W15T3.3-220VK 180 24 15 3.3 3750 100~240
YD-190CL70W13T3.3-220VK 190 70 13 3.3 3750 100~240
YD-220CL60W13T3.3-220VK 220 60 13 3.3 3750 100~240
YD-220CL60W13T3.3-120VK 220 60 13 3.3 3750 100~120
YD-220CL35W10T3.3-220VK 220 35 10 3.3 3750 100~240
YD-250CL30W13T3.3-220VK 250 30 13 3.3 3750 100~240
YD-255CL48W10T3.5-220VK 255 48 10 3.5 3750 100~240
YD-255CL60W15T3.5-220VK 255 60 15 3.5 3750 100~240
YD-260CL60W13T3.3-220VK 260 60 13 3.3 3750 100~240
YD-260CL60W13T3.3-120VK 260 60 13 3.3 3750 100~120
YD-260CL24W15T3.3-220VK 260 24 15 3.5 3750 100~240
YD-260CL48W15T3.3-220VK 260 48 15 3.5 3750 100~240
YD-260CL35W6T3.3-220VK 260 35 6 3.3 3750 100~240
YD-260CL45W24T3.3-220VK 260 45 24 3.5 3750 100~240
YD-270CL70W13T3.3-220VK 270 70 13 3.3 3750 100~240

Notice:

1) The surface temperature can be selected between 50℃~280℃, the tolerance of surface temperature is ±7℃ usually. Rate voltage can be 6V~600V, AC or DC.

2) For getting rapid temperature rising, larger heating power, several PTC pellets are used to assemble into a larger one.

3) There are two structures of insulators, one is twining polyimide film around the heating plate; another is coating a film pipe around the heating plate, and then thermal shrinking.





V Dimension Of The Yellow Insulating Film Wired PTC Thermistor



Dimension Number. Length Width Thickness Dimension Number. Length Width Thickness
  /mm /mm /mm   /mm /mm /mm
1 15 9 2.0~3.7 20 48 13 2.0~3.7
2 16 11 2.0~3.7 21 48 15 2.0~3.7
3 22 11 2.0~3.7 22 50 13 2.0~3.7
4 23 13 2.0~3.7 23 50 24 2.0~3.7
5 24 6 2.0~3.7 24 50 30 2.0~3.7
6 24 8 2.0~3.7 25 50 38 2.0~3.7
7 24 10 2.0~3.7 26 56 11 2.0~3.7
8 24 15 2.0~3.7 27 58 6 2.0~3.7
9 30 5 2.0~3.7 28 58 13 2.0~3.7
10 30 13 2.0~3.7 29 60 10 2.0~3.7
11 30 48 2.0~3.7 30 60 13 2.0~3.7
12 35 6 2.0~3.7 31 60 15 2.0~3.7
13 35 10 2.0~3.7 32 70 8 2.0~3.7
14 35 11 2.0~3.7 33 70 10 2.0~3.7
15 35 13 2.0~3.7 34 70 13 2.0~3.7
16 36 15 2.0~3.7 35 70 15 2.0~3.7
17 45 24 2.0~3.7 36 70 30 2.0~3.7
18 48 6 2.0~3.7 37 74 30 2.0~3.7
19 48 10 2.0~3.7 38 99 16 2.0~3.7





VI Universal Product Specification - Flexibility Heating Belt



Hair Straightener 7C 110V PTC Thermistor 16mm Yellow Insulating Thin Film Thermistor 4

Notice:

1) The surface temperature can be selected between 50℃~100℃, the tolerance of surface temperature is ±5℃ usually. Rate voltage can be 6V~400V, AC or DC. Customer designed shapes are possible.

2) This product is assembled with many pieces of PTC heating elements, with a shrink tube tightened. It can be bended. It can be very long, length between 0.1 ~ 20 m , width between 6 ~ 16 mm, thickness between 2.5 ~ 3.5 mm. It is uesd for large area constant temperature heating.





VII Completed Product Summary Of The Yellow Insulating Film Wired PTC Thermistor



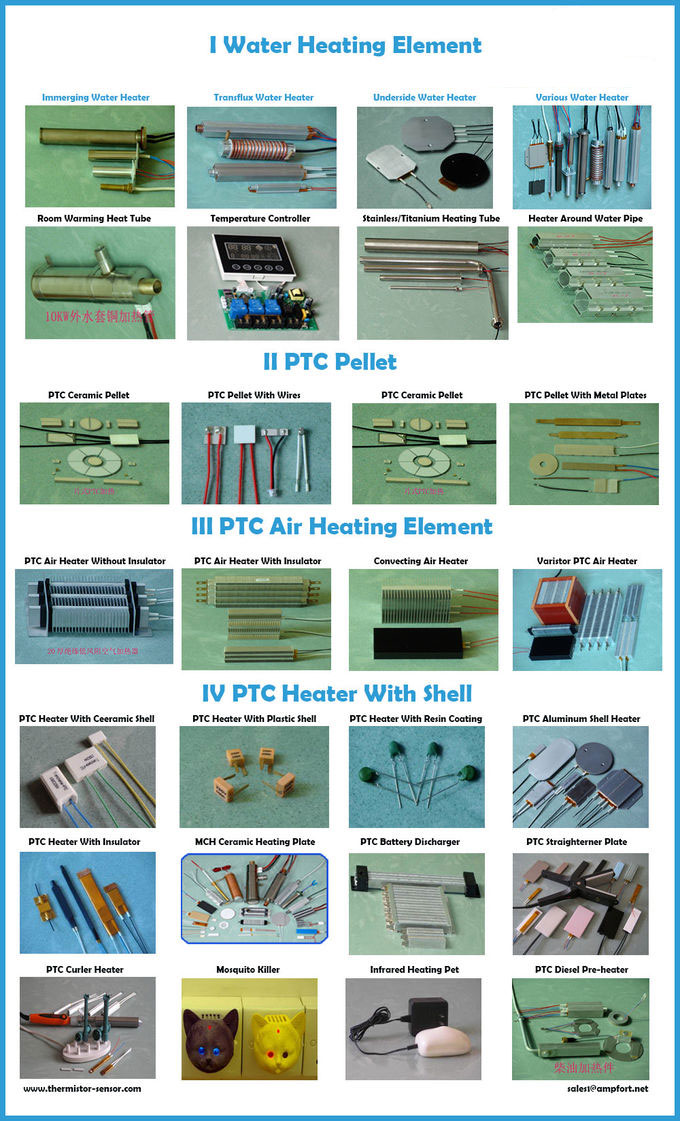

Hair Straightener 7C 110V PTC Thermistor 16mm Yellow Insulating Thin Film Thermistor 5





VIII Workshop Show Of The Yellow Insulating Film Wired PTC Thermistor



Hair Straightener 7C 110V PTC Thermistor 16mm Yellow Insulating Thin Film Thermistor 6





VIIII PTC can be used in these fields below





a. Prevent frostbite and wet: outdoor preventing frostbite for electric equipment, water pipe, oil pipe, electric circuit.

b. Drying, humidifying: shoe, clothes, tea hot fan dryer, wardrobe, bookcase, shoebox, moistureproof heater.

c. Boiling water warming: reservior water heater, shower bath, liquid heater, water transflux heater, tankless shower water heater, instant water heater, footbath, three phase voltage, multi-voltage heating tube, inrustant-withstanding, dry-operating heating tube, stainless steel, titanium, 304, 316, heating tube, solar, air energy water heater, solar panel heating tube.

d. Hairdressing: hair curler, hot comb, hair straightener, wax melter, moulter, hair wave plate.

e. Agriculture stockbreeding: hatcher, seed budding warmer, tea dryer, warmer for animal, fish, plant.

f. Car, motor car: Air heater for car, pre-heater for diesel tank, filter, pipe, heater for carburetor, battery pre-heating, heating system for electric car, hybrid energy vehicle.

g. Warming, health care: warmer for hand, foot, face, waist, warmer with or without fan for bathroom, bedroom, shop, air condition, massager, sauna bath, infrared wamer, radiator warmer with running water, oil, warmer with underground pipe, warmer in bed mattess.

f. Home appliance: mosquito killer, travel iron, perfume fragrant vaporator.

i. Machine, tool: electric iron, hot glue gun, heating for sensor, constant temperature heating plate for PCB, photo film coater, plastic bag capper, drying room, binding machine for book, plastic melter, oven, heating for compressed air, railway carriage, plating bath, teflong, 2520, 800 incoloy, heating tube, AC and DC heating, heating with lithium battery, high power heating tube, mini heating plate.

j. Food, drink: boiler and wamer for coffee, drink water, tea, wine, milk, soya-bean milk, food, coffee maker and warmer, food roaster, nursing bottle, fermenting case for food, acidophilus milk, drink automatic saler, sugar and chocolate melter.

k. Vapor: sauna bath, skin vaporator, humidifier, face wetting.

o. Medical treatment: physical therapy, medical treatment, mainline heater, infrared physical therapy equipment, plant medicament dryer.

p. Others: temperature switch, delay switch, electronic cigarette.
