temperature probe thermistor NTC sensor 50K 10K 100k 3950 3435 1% NTC Temperature Sensor

Product Tags : NTC temperature sensor Temperature sensor

Product Attributes :

Theory

NTC thermistor

Output

Thermal sensitive type

Description

ALT-TS-NTC

Available tolerances

±1%,

Operating Temperature

-40°C-150°C

B25/50

10K 50K 100K ±1%

Wire length

70mm

working temperature

150°C

Product Description

NTC temperature sensor [Tube type probe]

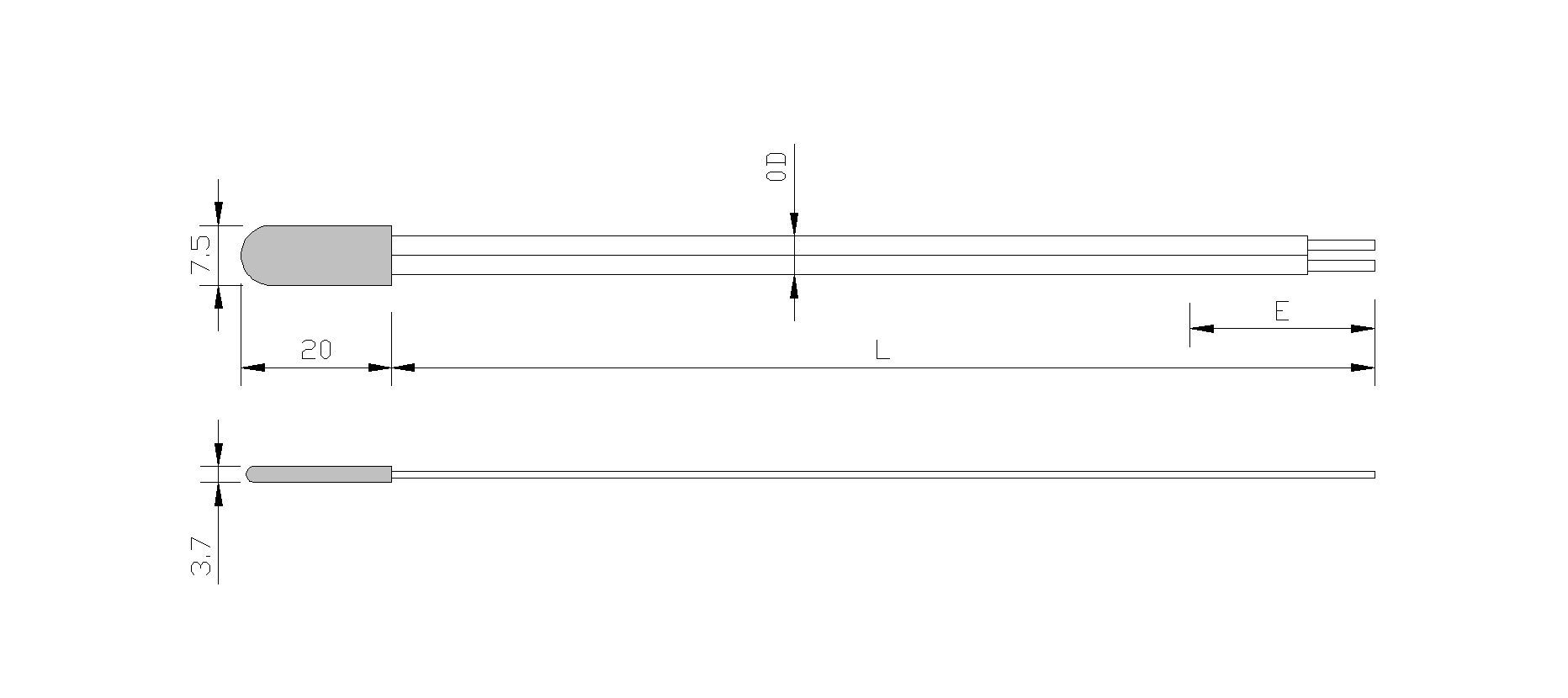

SIZE	D	L	E	F	Φod	G
Unit(mm)	/	75	/	/	2.85	/
Product Features	1. Flat appearance, convenient for narrow spaces 2. Single directional flat fitting temperature measurement on both sides 3. Long term stable operation at high and low temperatures 4. Wide resistance range: 1K Ω~500k Ω
Product application	Cooling fan, equipment battery, heater, overheating pipeline, etc
Working temperature range	-40~150℃
response time	Approx 8 S (depending on chip resistance and size)
Voltage endurance	1800V AC 0.5mA 30S
