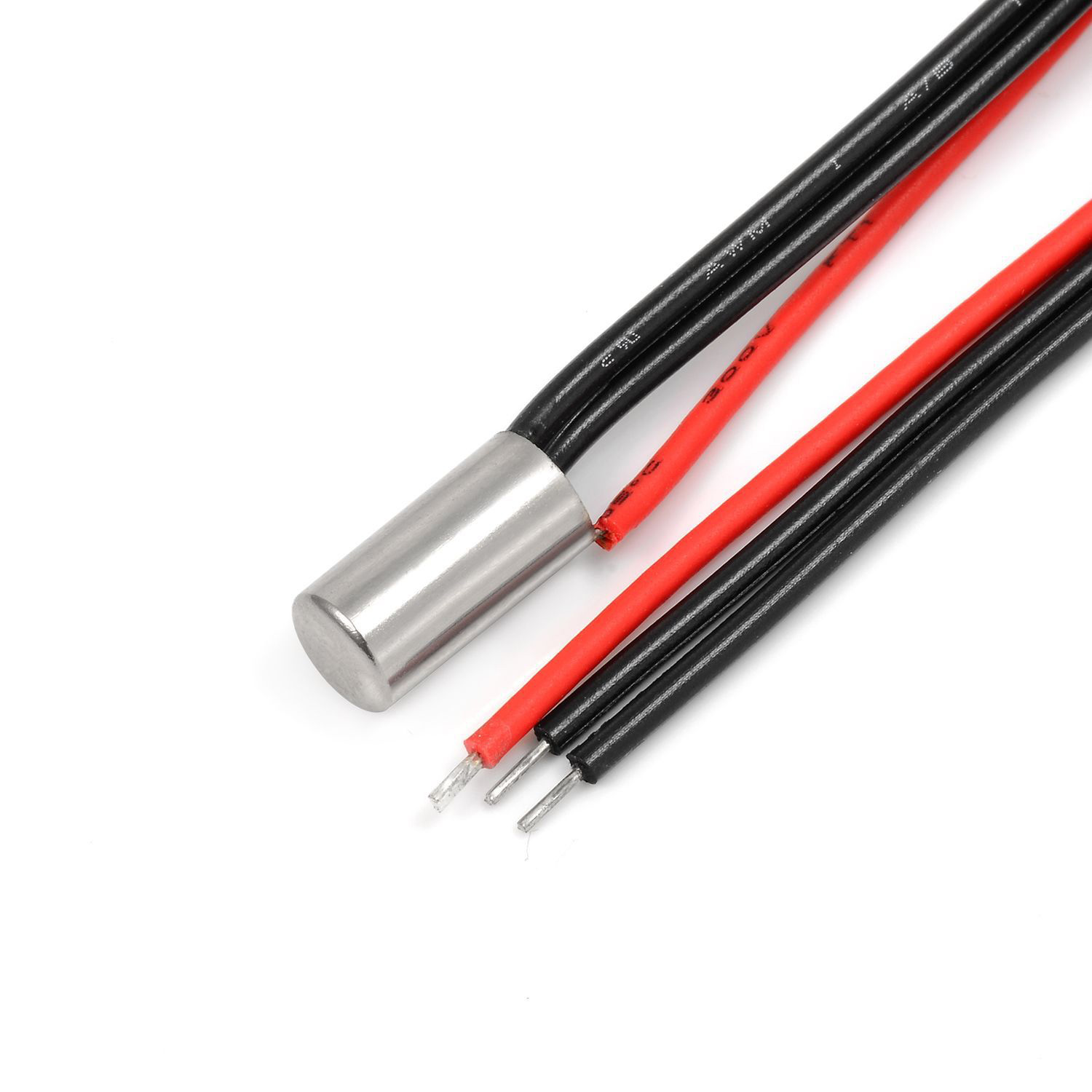

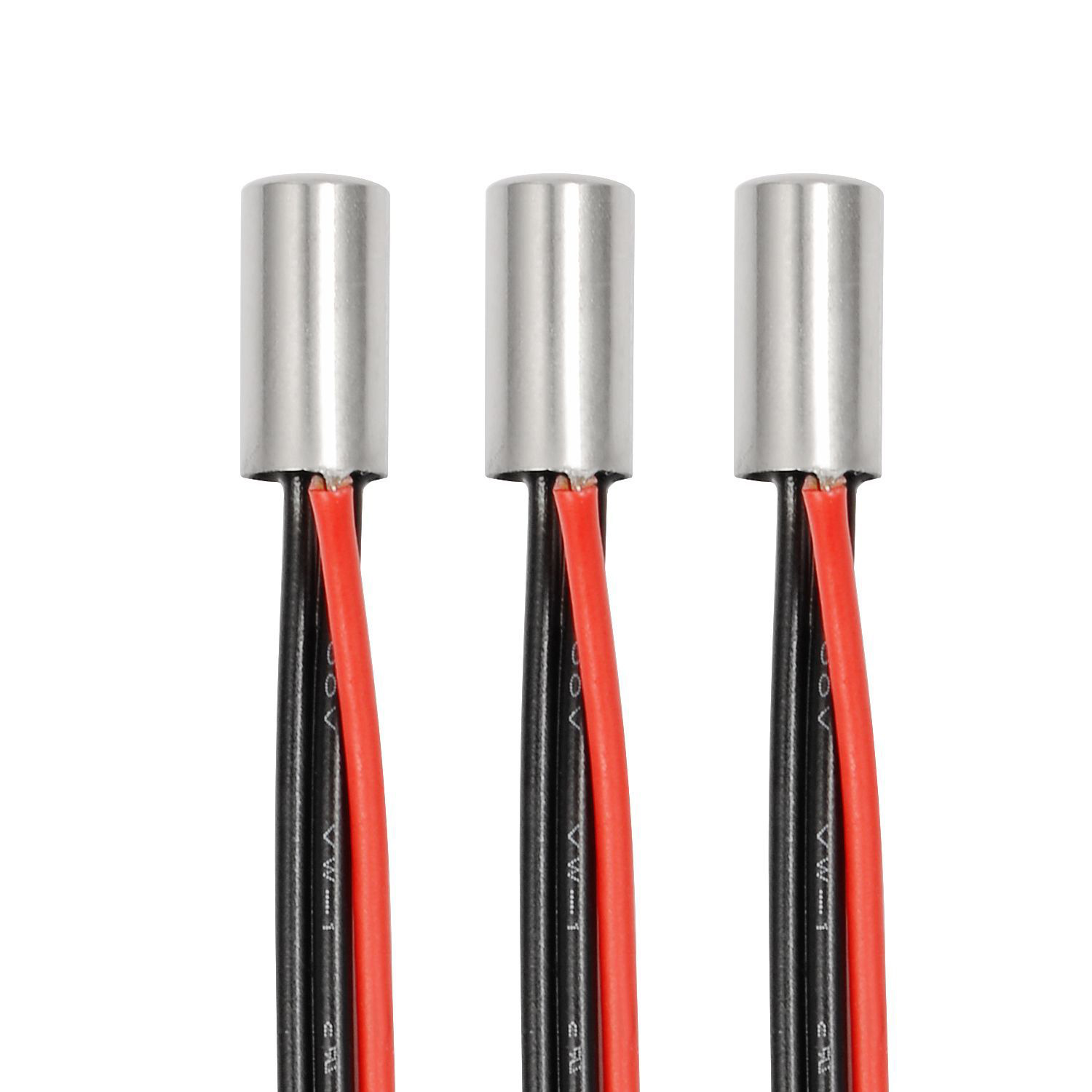

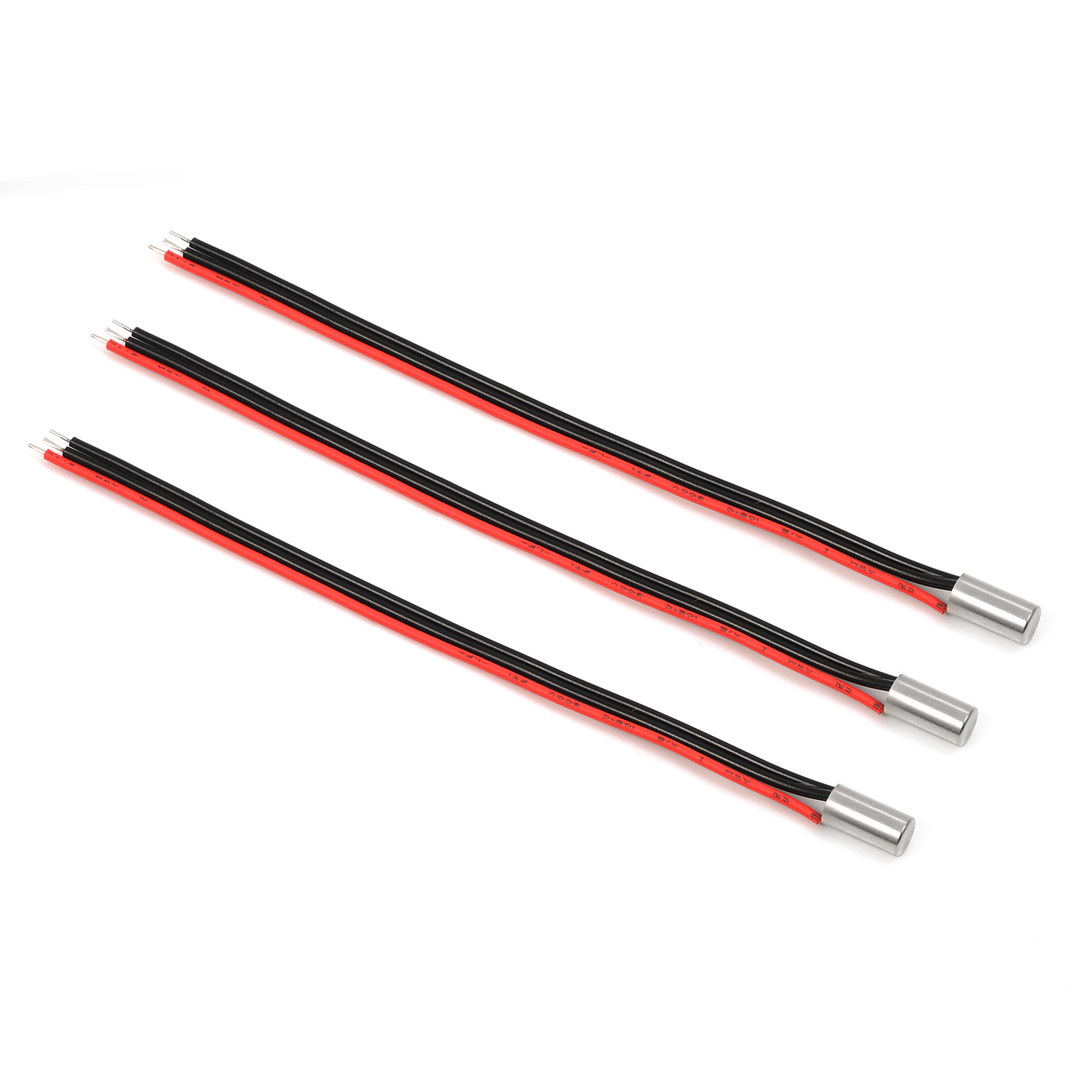

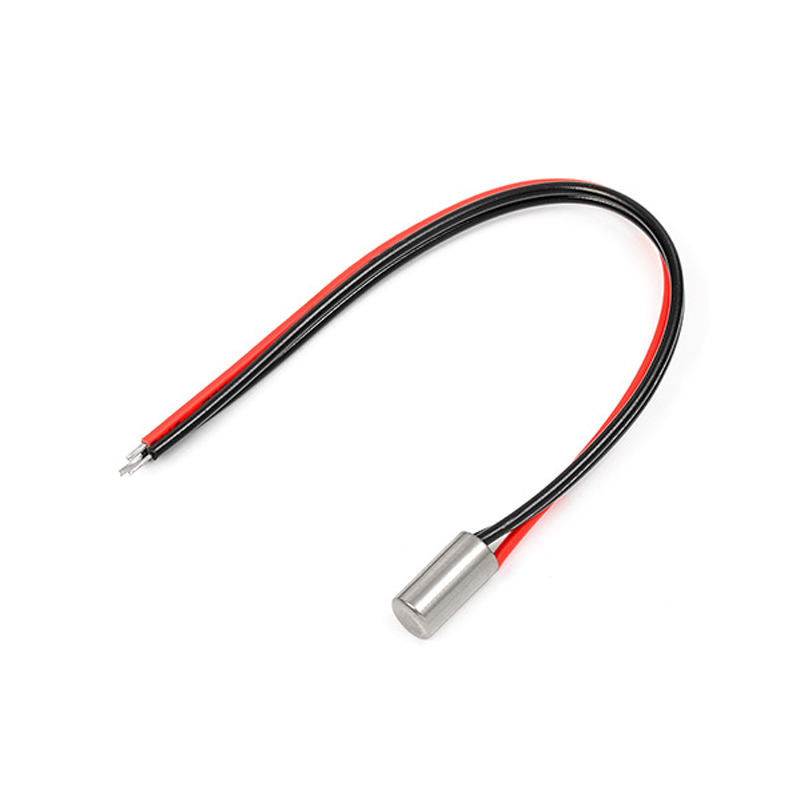

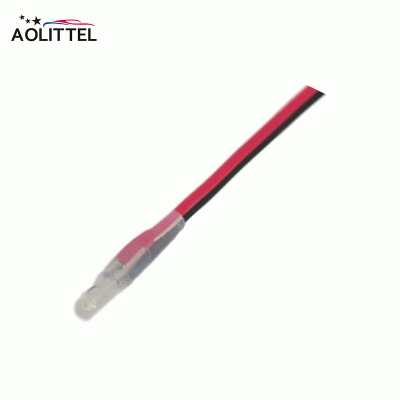

NTC temperature sensor [Tube type probe]
|
|

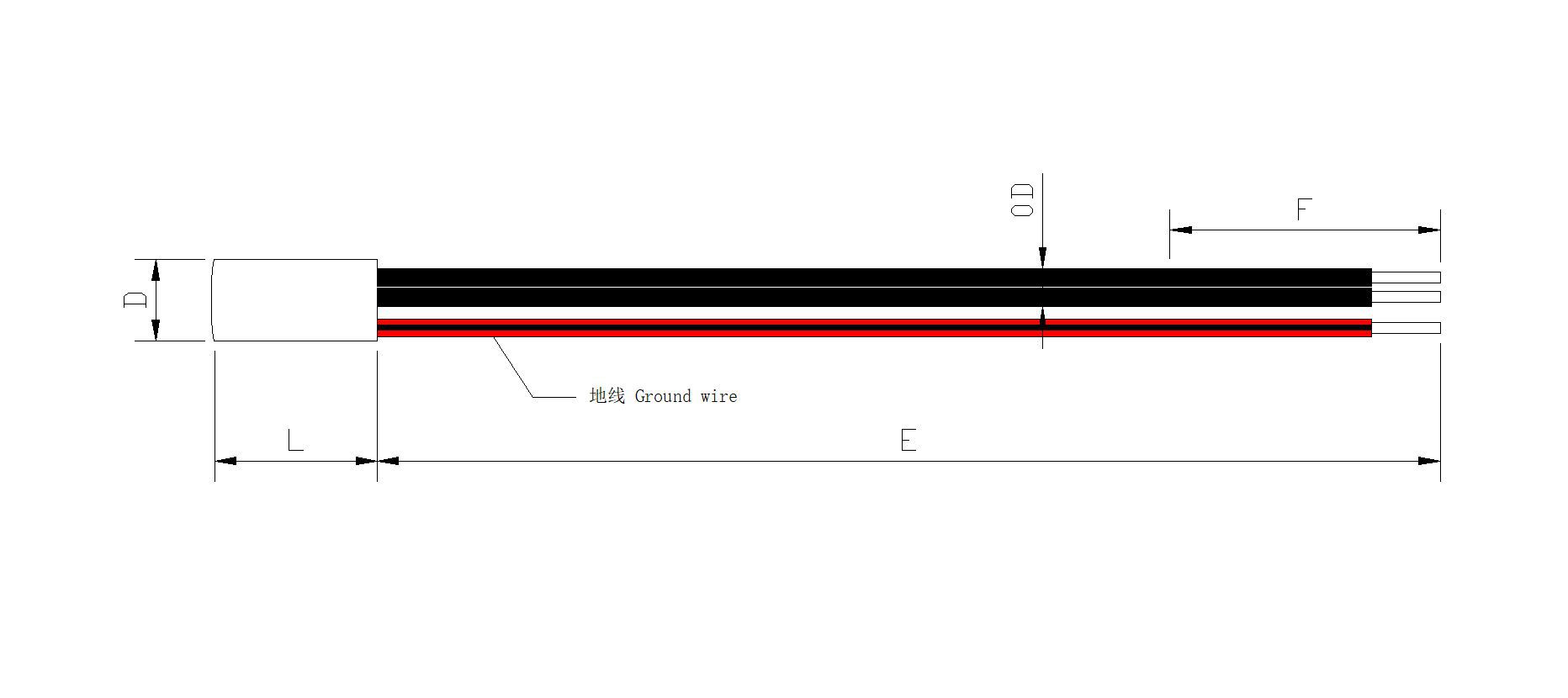

SIZE
|
D
|
L
|
E
|
F
|
Φod
|
G
|
|
Unit(mm)
|
5
|
10
|
80
|
10
|
2.85
|
/
|
|
Product Features
|
1. Good consistency in pipe form and size 2. Ground wire design, strong impact resistance and high safety of the product 3. Long
term stable work 4. Wide resistance range: 1K Ω~500k Ω
|
|
Product application
|
Temperature gauge, washing machine, car fridge, wireless charger, etc
|
|
Working temperature range
|
-40-105 ℃ (depending on packaging and wiring)
|
|
response time
|
Approx 7 S (depending on chip resistance and size)
|
|
Voltage endurance
|
1800V AC 0.5mA 30S
|
