Temperature controller&heater used NTC temperature sensor 10K 20K 30K 3950 1% NTC Temperature Sensor

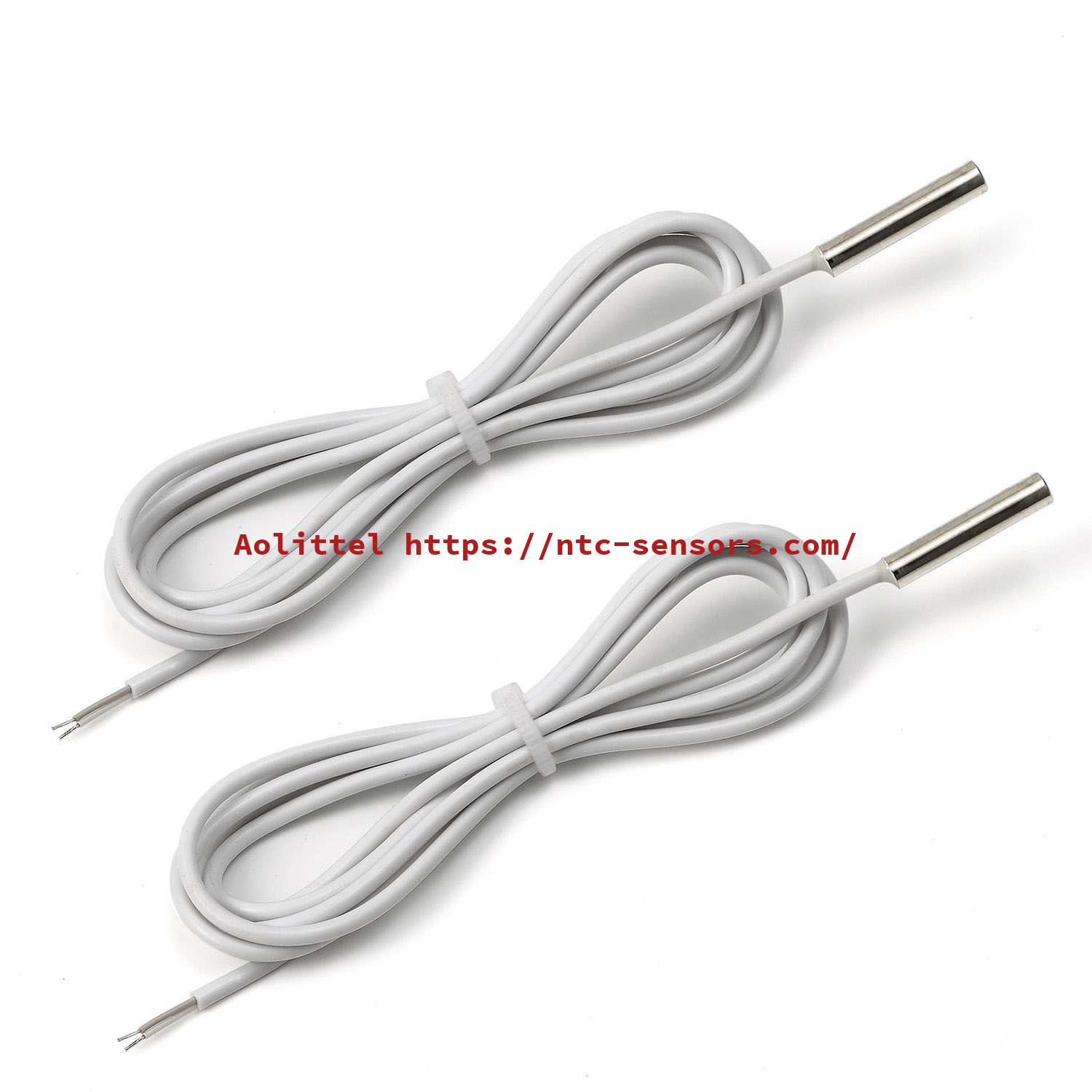

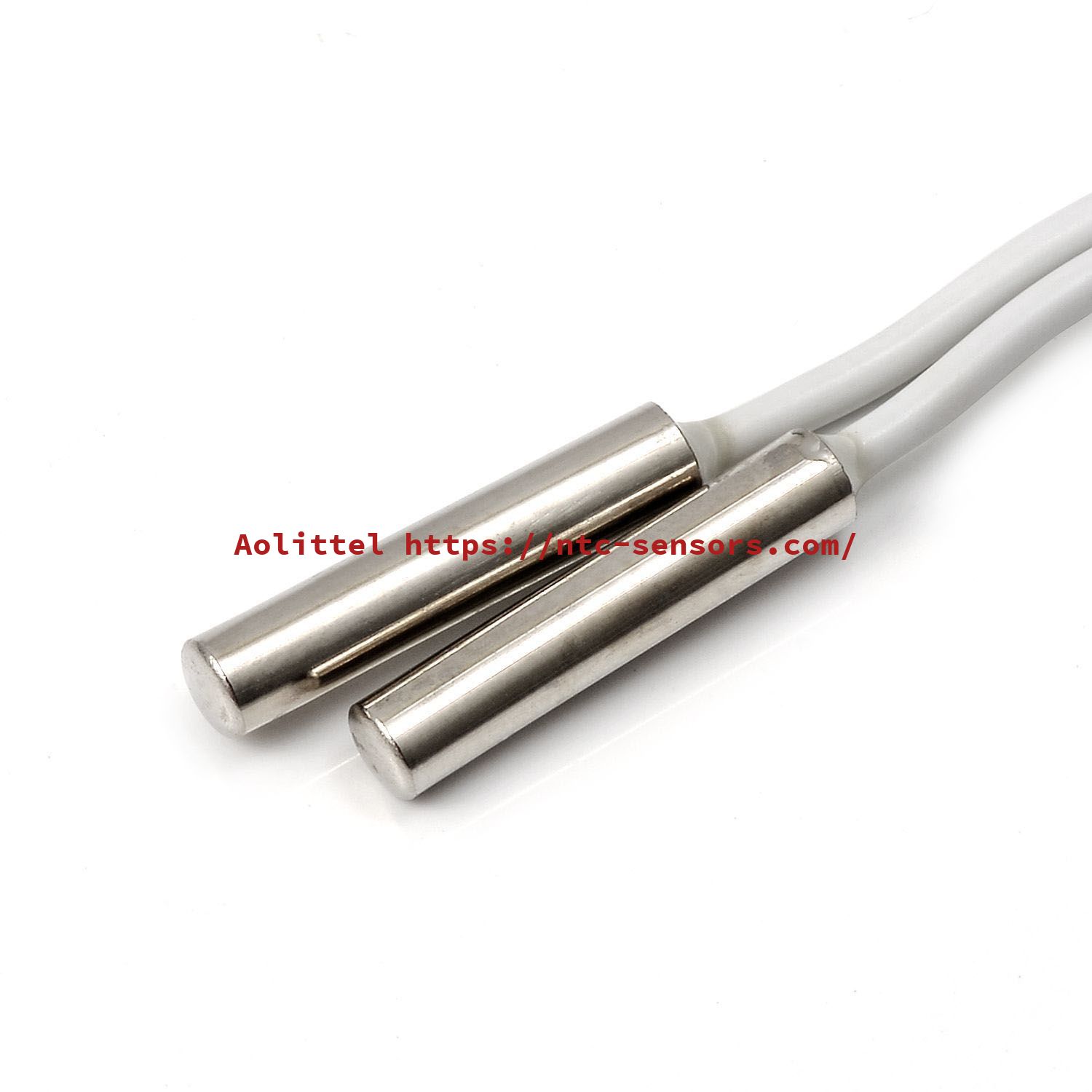

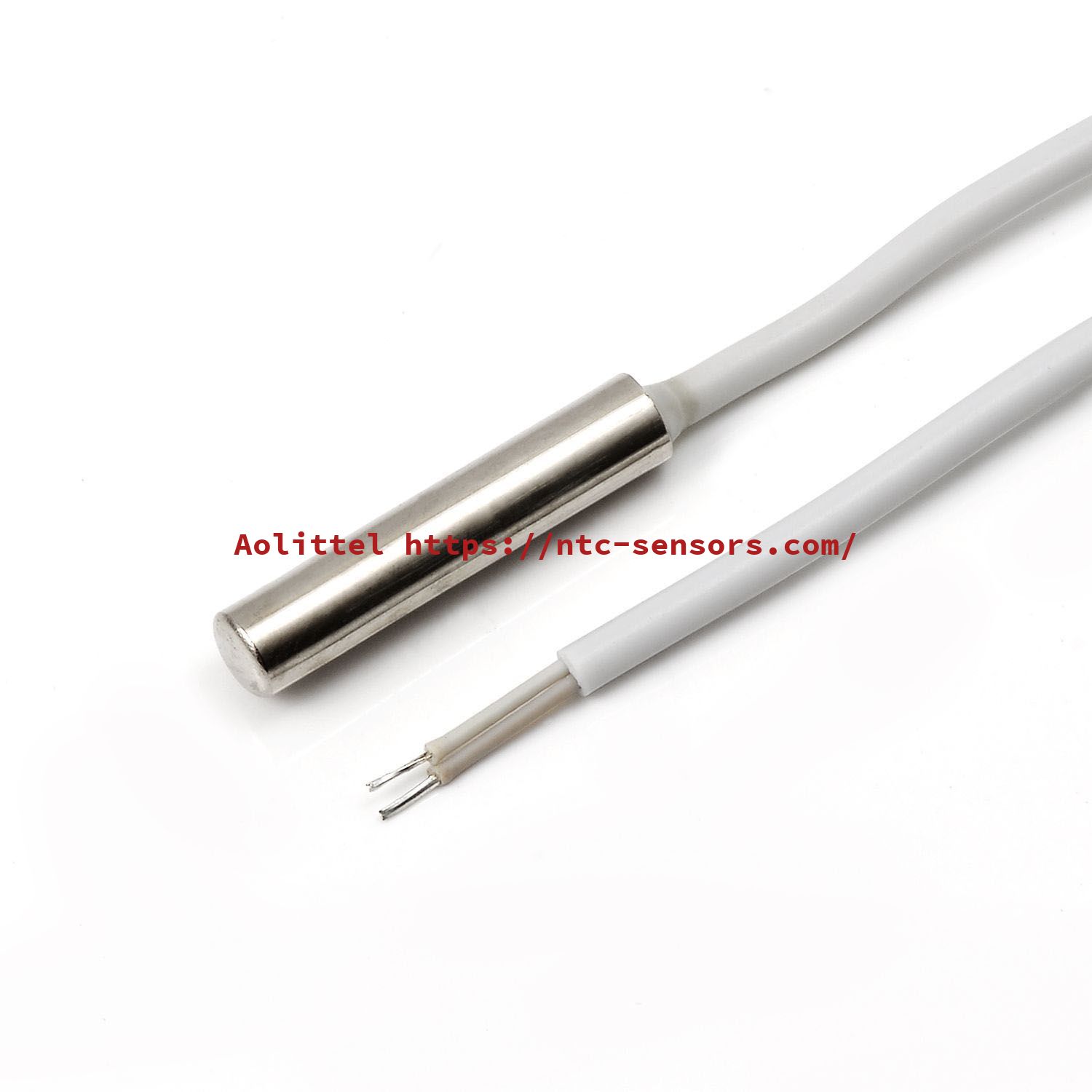

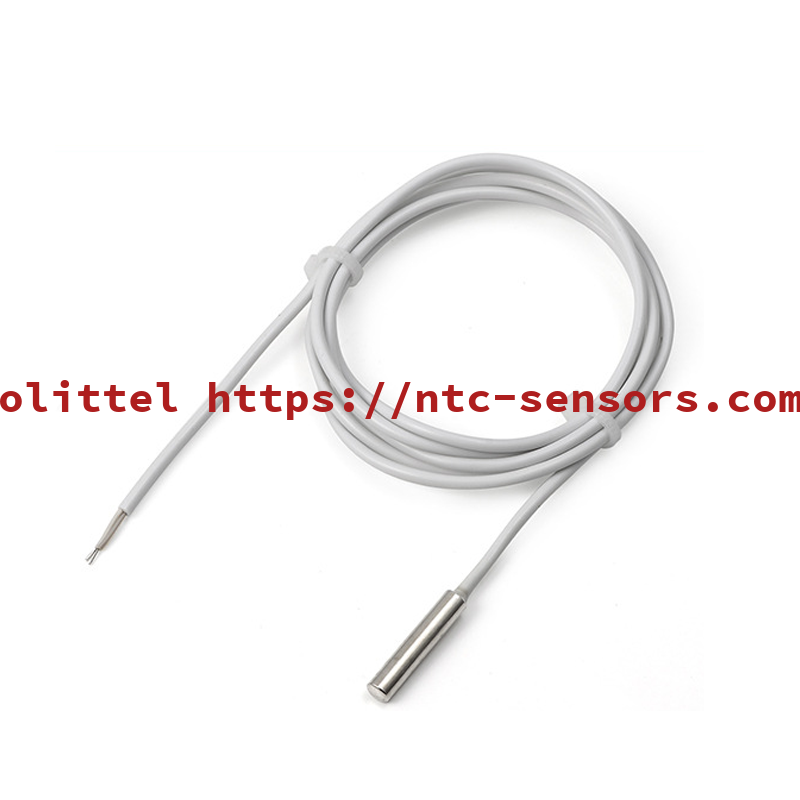

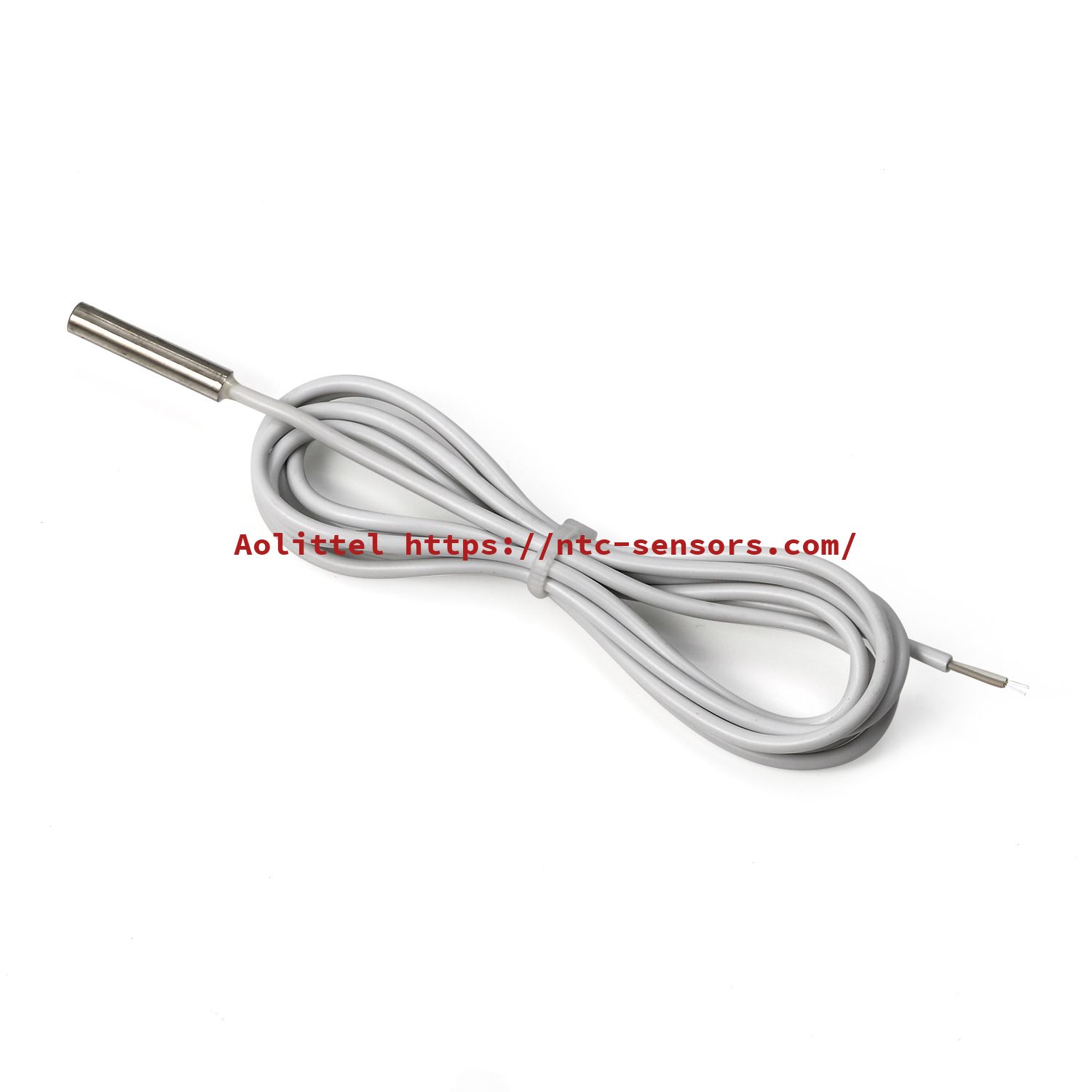

NTC temperature sensor [Temperature sensing probe of thermostat]

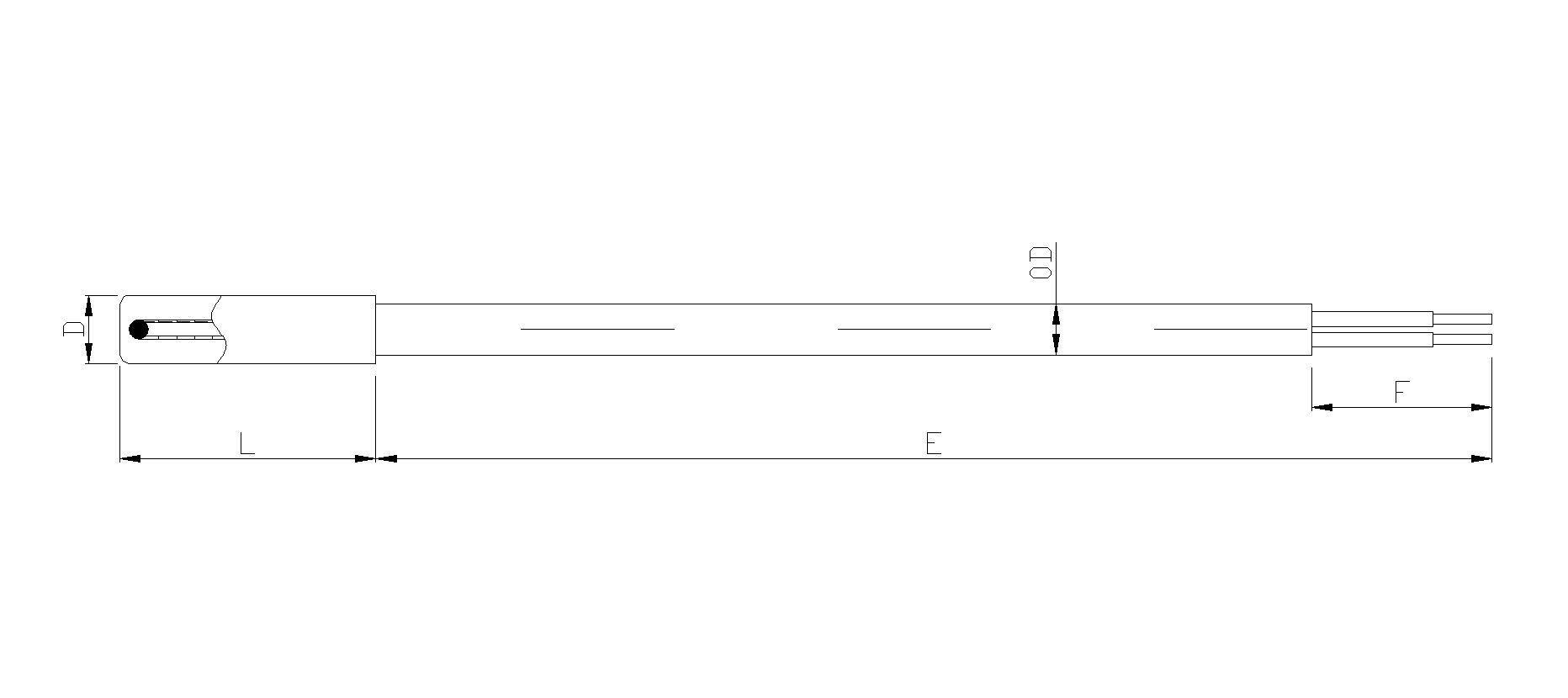

SIZE

D

L

E

F

Φod

G

Unit(mm)

4

20

1000

10

2

/

Product Features

 1. Sturdy structure, good consistency in probe size 2. Double layered sheathed wire 3. The metal shell can withstand high and low
temperature impacts without peeling off 4. Size and performance can be customized and varied 5. Wide resistance range: 1K Ω~500k Ω

Product application

Temperature control instruments, indoor constant temperature, warm air heaters, and other small household appliances, as well as
constant temperature thermometers, thermostats, aquaculture monitoring, underfloor heating thermostats, and more

Working temperature range

-40-80 ℃ (Depends on the wire)

response time

Approx 7S (depending on chip resistance)

Voltage endurance

1800V AC 0.5mA  30S
