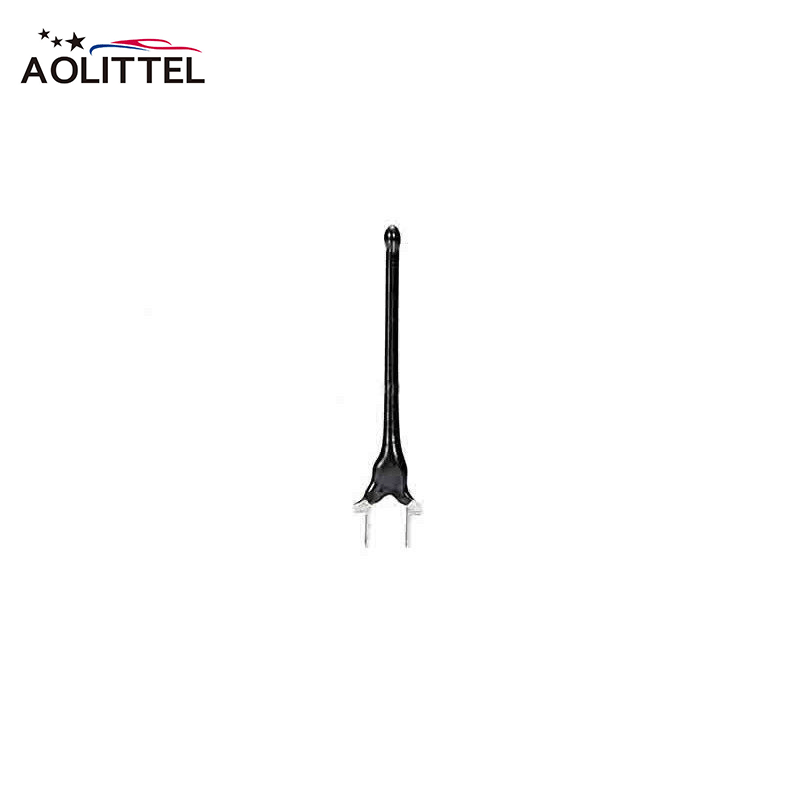

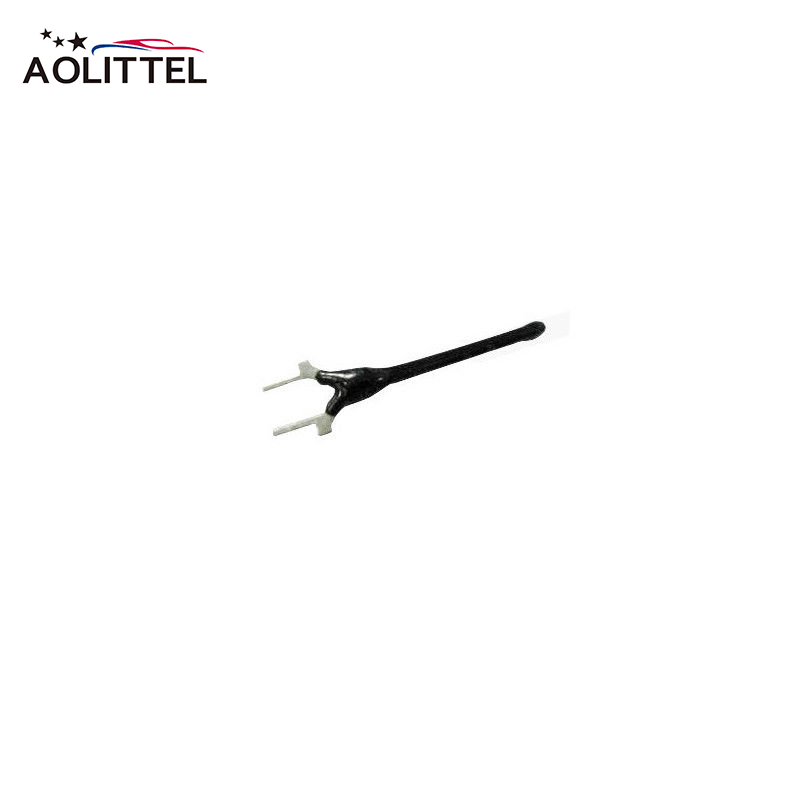

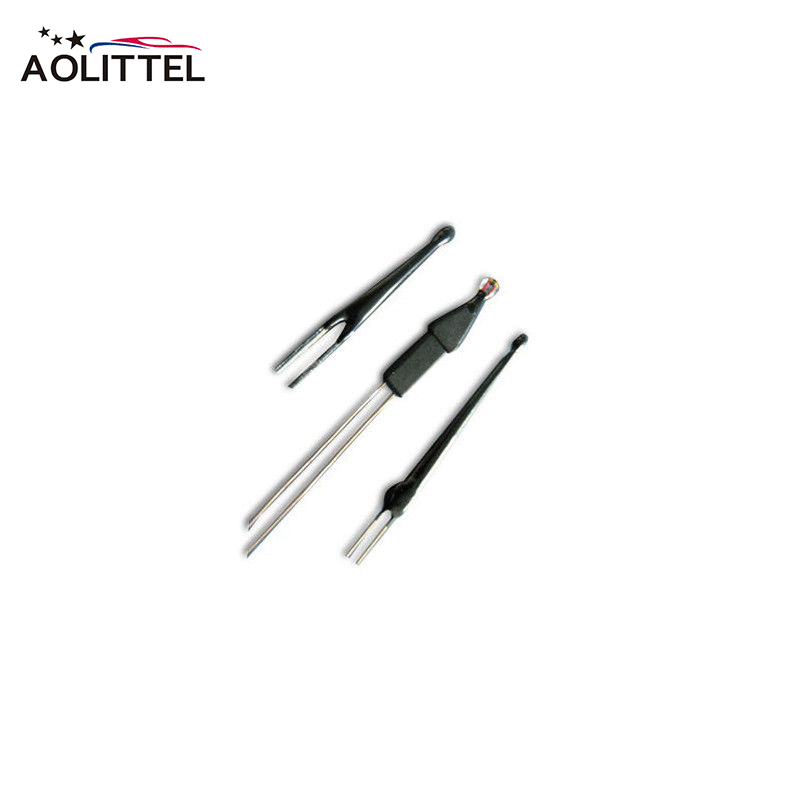

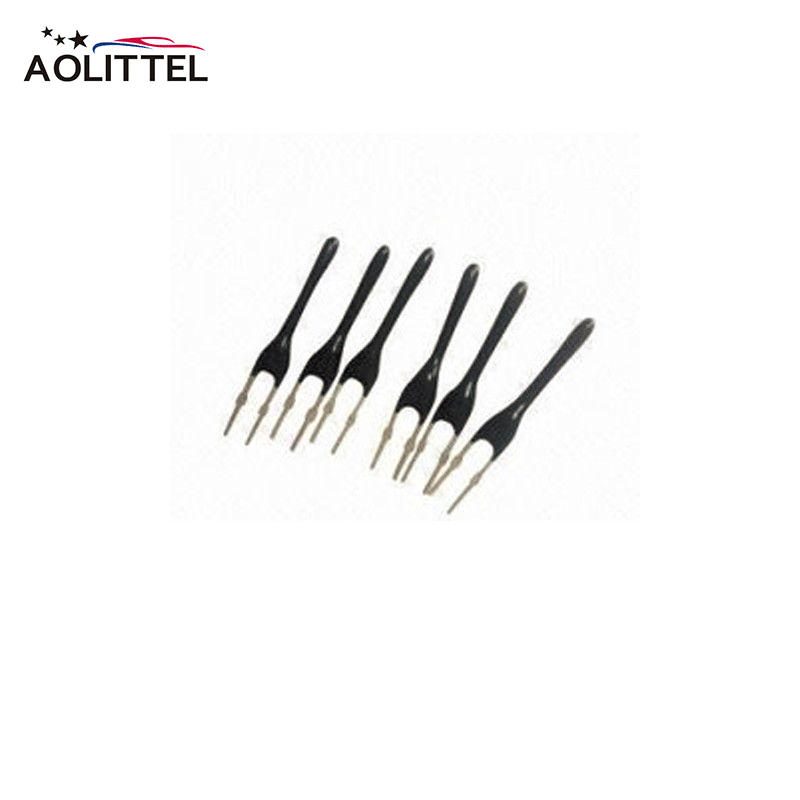

100k 4200 Power NTC Thermistor Epoxy Resin Negative Temperature Coefficient Sensor
100k 4200 Power NTC Thermistor Epoxy Resin Negative Temperature Coefficient Sensor 100k 4200 Power NTC Thermistor Epoxy Resin Negative Temperature Coefficient Sensor 100k 4200 Power NTC Thermistor Epoxy Resin Negative Temperature Coefficient Sensor 100k 4200 Power NTC Thermistor Epoxy Resin Negative Temperature Coefficient Sensor 100k 4200 Power NTC Thermistor Epoxy Resin Negative Temperature Coefficient Sensor

100k 4200 Power NTC Thermistor Epoxy Resin Negative Temperature Coefficient Sensor

Product ID : Epoxy Resin NTC Thermistor 100K 4200
Product Tags :
Product Attributes :

Epoxy Resin NTC Thermistor 100K 4200 For Upscale Hotel Fire Alarm Dip Temperature Sensor



I Features Of The Epoxy Resin NTC Thermistor 100K 4200



* Highly responsive temperature sensor that has been dipped in epoxy resin

* Temperature sensor designs according to device of fire alarm
* Chip from Shibaura NTC thermistor
* Epoxy-coated so it can resist humidity
* Good coherence and stability, high humidity and durability
* Enjoys a large sale in China, the US and Japan

Product Description

II Advantage Of The Epoxy Resin NTC Thermistor 100K 4200



1. Novel structure, superior performance and high quality
2. High sensitivity and fast response time
3. Good sealing performance, strong adhesion, moisture-proof and anti-corrosion
4. Large-scale production, high cost performance, high quality and low price

III Dimensional Drawing Of The Epoxy Resin NTC Thermistor 100K 4200 (Unit:mm)



100k 4200 Power NTC Thermistor Epoxy Resin Negative Temperature Coefficient Sensor 2

NO Material Name Item/PN
2-1. Element R25=100KΩ±1% B25/50=4200K±1% DC
2-2. Coating Resin (Black)
2-3. Lead Wire Stents





IV Electrical Performances Of The Epoxy Resin NTC Thermistor 100K 4200



NO Item Sign Test Conditions Min. Normal value Max. Unit
4-1. Resistance at 25℃ R25

Ta=25±0.05℃

PT≦0.1mw

99.0 100.0 101.0
4-2. B Value B25/50   4158.0 4200 4242.0 k
4-3. Dissipation factor σ Ta=25±0.5℃ ≧0.9 mW/℃
4-4. Time constant τ Ta=25±0.5℃ ≦15 sec
4-5. Maximum rated power P / ≦25 mW
4-6. Operating temp.range / / -40 / +125





V Thermistor application example Of The Epoxy Resin NTC Thermistor 100K 4200



Thermistors serve a crucial role in temperature detection. For example, thermistor temperature detection

can be used in fire alarms to detect fires based on a sudden change in temperature. Unlike photoelectric

detectors or ionization alarms, thermistors only require heat to activate.



1. Upscale hotel room
2. Smart home products
Temperature measurement for home electronics (fire alarm)

100k 4200 Power NTC Thermistor Epoxy Resin Negative Temperature Coefficient Sensor 3

100k 4200 Power NTC Thermistor Epoxy Resin Negative Temperature Coefficient Sensor 4





VI Thermistor Temperature Detection in Fire Alarms


The thermistor method, unlike the previous examples, uses heat detection to activate. The alarm activates

once the thermistor detects a high temperature. Thermistor temperature detection doesn’t require smoke

to activate and has fewer false alarms. The thermistor uses the ambient temperature of a building and

will only activate when that temperature increases exponentially. The thermistor method is reliable in this

fire alarm example as there would be few false alarms and a quicker alert rate, but the thermistor method

is also versatile.

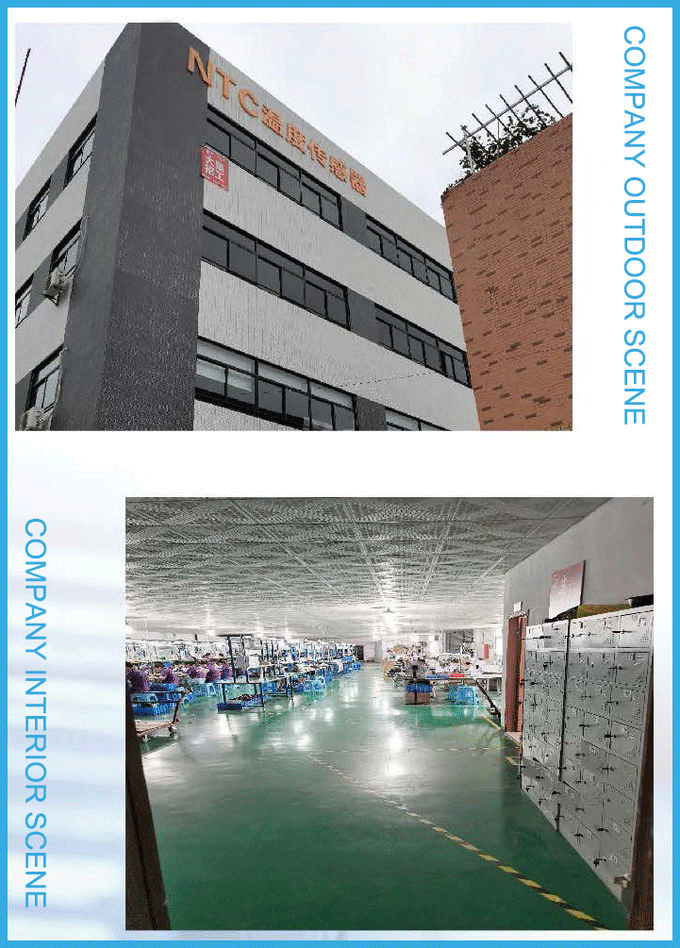

VII Workshop Of The Epoxy Resin NTC Thermistor 100K 4200



100k 4200 Power NTC Thermistor Epoxy Resin Negative Temperature Coefficient Sensor 6
