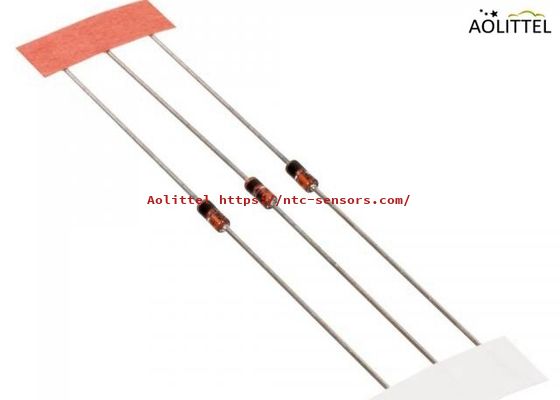

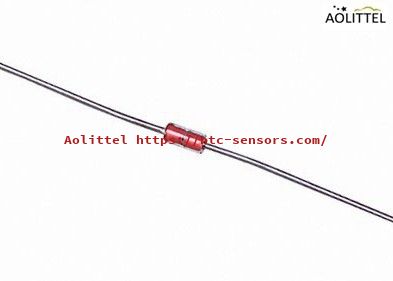

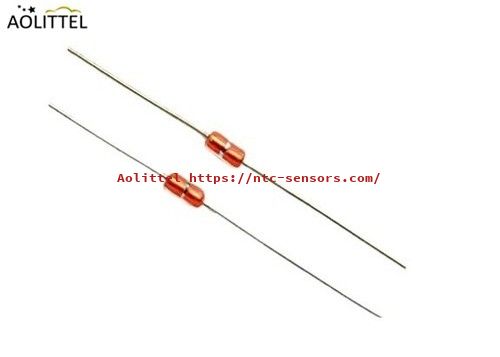

Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor
General
Ao littel PTC Thermistor LPT-KTY83-110F are perfect to be applied as temperature sensing devices in measurement / control systems. Also non-linear, they performed highly repeatable, predictable and stable resistance versus temperature characteristics. Ao littel PTC Thermistor LPT-KTY83-110F have a wide operating range and long operating life and are available in various package styles and initial tolerances.
______________________________________________________________________________
Download________
Fail-safe positive temperature coefficient
Semi-logarithmic R/T characteristic
Close resistance tolerance (KTY81/110 = ±1%)
Ao littel PTC Thermistor LPT-KTY83-110F have a positive temperature coefficient of

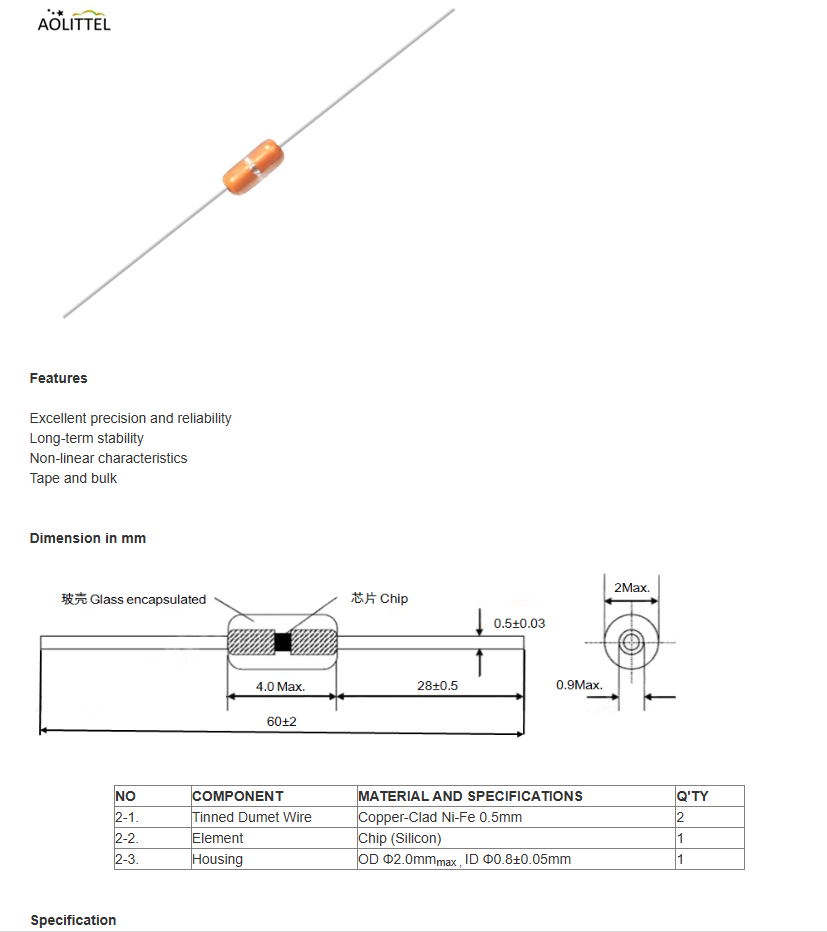

resistance and are suitable for use in measurement and control systems. Ao littel PTC Thermistor LPT-KTY83-110F are encapsulated in the SOD68 (DO-34) package.
Other special selections are available on request
R/T Characteristics
|
Centigrade (℃) |
Fahrenheit (℉) |
T/℃ %/(K) |
LPT-KTY83-110F |
DR (K) |
||
| Resistance(Ω) | ||||||
| Min. | Center | Max. | ||||
| -55 | -67 | 0.99 | 475 | 490 | 505 | ±3.02 |
| -50 | -58 | 0.98 | 500 | 515 | 530 | ±2.92 |
| -40 | -40 | 0.96 | 552 | 567 | 582 | ±2.74 |
| -30 | -22 | 0.93 | 609 | 624 | 638 | ±2.55 |
| -20 | -4 | 0.91 | 669 | 684 | 698 | ±2.35 |
| -10 | 14 | 0.88 | 733 | 747 | 761 | ±2.14 |
| 0 | 32 | 0.85 | 802 | 815 | 828 | ±1.91 |
| 10 | 50 | 0.83 | 874 | 886 | 898 | ±1.67 |
| 20 | 68 | 0.80 | 950 | 961 | 972 | ±1.41 |
| 25 | 77 | 0.79 | 990 | 1000 | 1010 | ±1.27 |
| 30 | 86 | 0.78 | 1029 | 1040 | 1051 | ±1.39 |
| 40 | 104 | 0.75 | 1108 | 1122 | 1136 | ±1.64 |
| 50 | 122 | 0.73 | 1192 | 1209 | 1225 | ±1.91 |
| 60 | 140 | 0.71 | 1278 | 1299 | 1319 | ±2.19 |
| 70 | 158 | 0.69 | 1369 | 1392 | 1416 | ±2.49 |
| 80 | 176 | 0.67 | 1462 | 1490 | 1518 | ±2.8 |
| 90 | 194 | 0.65 | 1559 | 1591 | 1623 | ±3.12 |
| 100 | 212 | 0.63 | 1659 | 1696 | 1733 | ±3.46 |
| 110 | 230 | 0.61 | 1762 | 1805 | 1847 | ±3.83 |
| 120 | 248 | 0.58 | 1867 | 1915 | 1963 | ±4.33 |
| 125 | 257 | 0.55 | 1919 | 1970 | 2020 | ±4.66 |
| 130 | 266 | 0.52 | 1970 | 2023 | 2077 | ±5.07 |
| 140 | 284 | 0.45 | 2065 | 2124 | 2184 | ±6.28 |
| 150 | 302 | 0.35 | 2145 | 2211 | 2277 | ±8.55 |

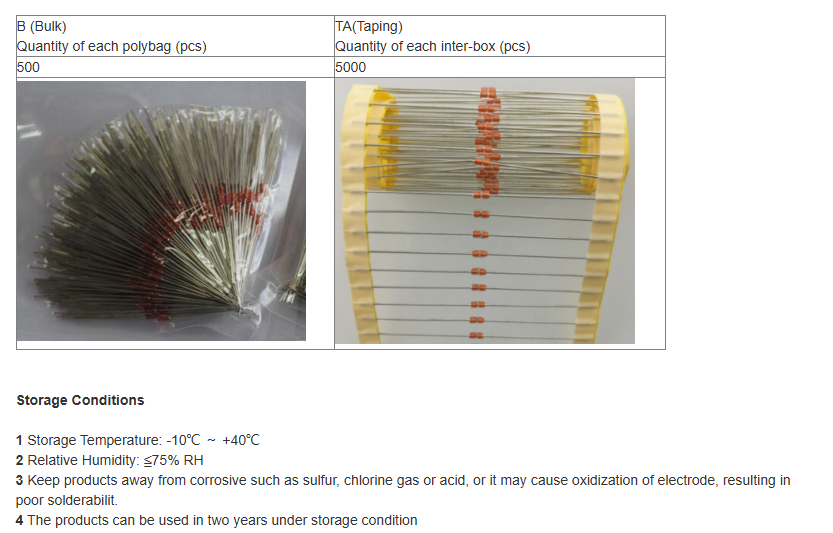

Packaging Data
