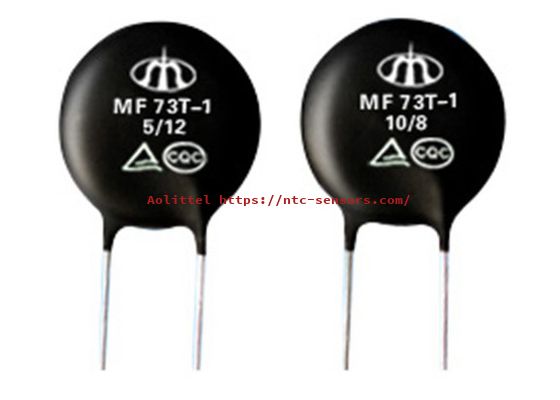

Ametherm SL322R025 Cross High Power Inrush Current Limiter MF73T-1 2/25 NTC Thermistor 2Ohm 25A 3300uF 5W 35mm Dia
Description
Power NTC Thermistor The MF73T-1 series Power NTC Thermistors provide inrush current suppression for sensitive electronics such as power supplies,UPS,inverters etc. Connecting a MF73T-1 in series with the power source will limit the current surges typically created at turn on.
________________________________________________________________________
Download_______
Application
• High power switching power supplies, Power conversion, UPS power.
• High power battery charger, electric vehicle battery charger.
• High power LED light, high power electronic energy saving lamps and other lamps.

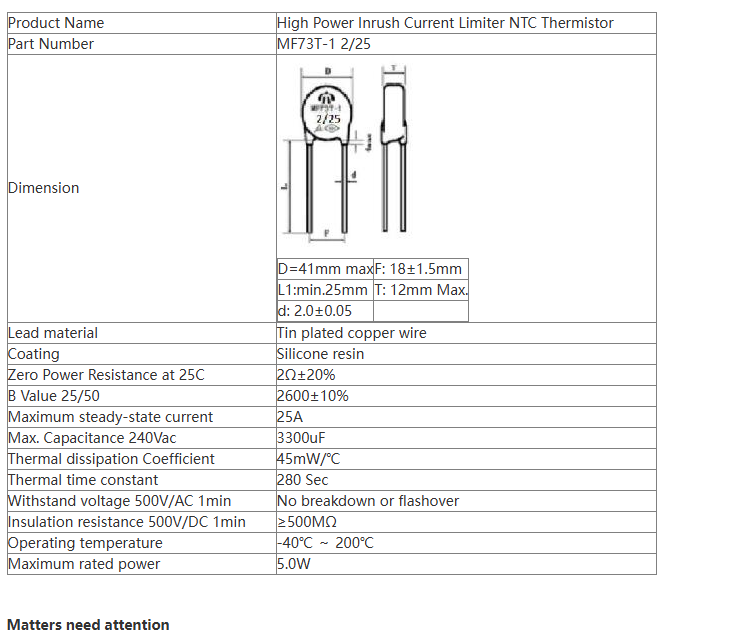

Specification for MF73T-1 2/25
| D15 | D20 | D25 | D30 | D35 | |||
| Chip Dimensions | ø 15 | ø 20 | ø 25 | ø 30 | ø 35 | ||
| (Dmax) | 17.5 | 22.5 | 29 | 36 | 41 | ||
| Overall Diameter (mm) | |||||||
| (Tmax) | 6 | 7 | 8 | 8.5 | 10 | ||
| Thickness (mm) | |||||||
| (F ± 1.5) | 7.5 | 10 | 10 | 10 | * 18 | 18 | |
| Pitch (mm) | |||||||
| (d ± 0.05) | 0.8 | 1 | 1 | 1.2 | * 1.6 | 1.8 | * 2.0 |
| Dia of Leads (mm) | |||||||
| (L) min | 25 | 25 | 25 | 25 | 25 | ||
| Length of Leads (mm) | |||||||
| (L1) min | 17 | 17 | 17 | ||||
| Length of Leads (mm) | |||||||

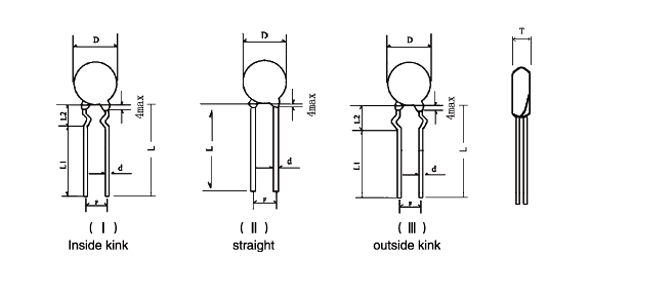

| Standard Leads | (I) | (II) | (II) | (II) | (II) | ||
| Figure | Inside kink | Straight | Straight | Straight | Straight | ||
| Optional Leads | (II) | (III) | (III) | ||||
| Figure | Straight | Outside kink | Outside kink | ||||
| Weight (g). | 3.1 | 6.2 | 8.8 | 20.5 | 28.8 | ||
| Approx | |||||||
Illustration:In general, the long bent lead wire is used, see figure II * Standard

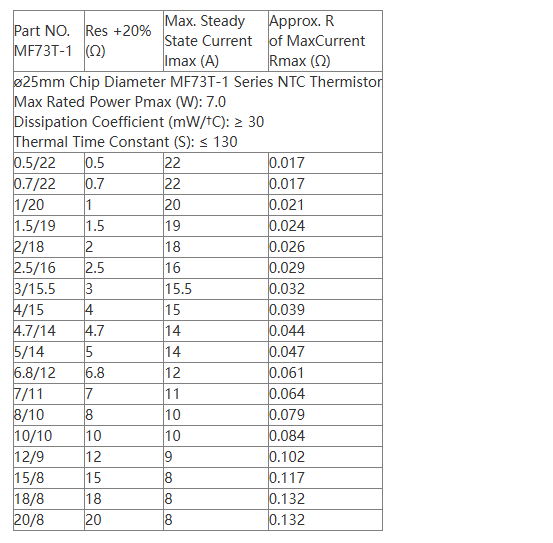

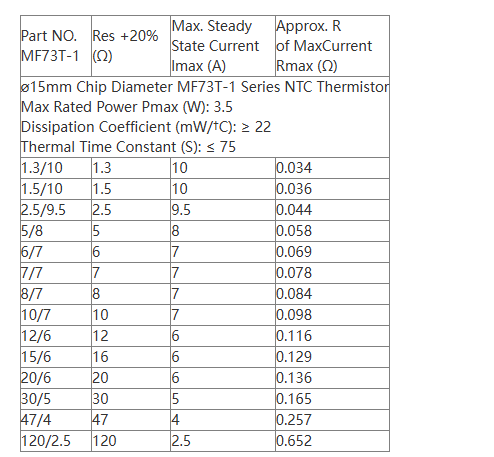

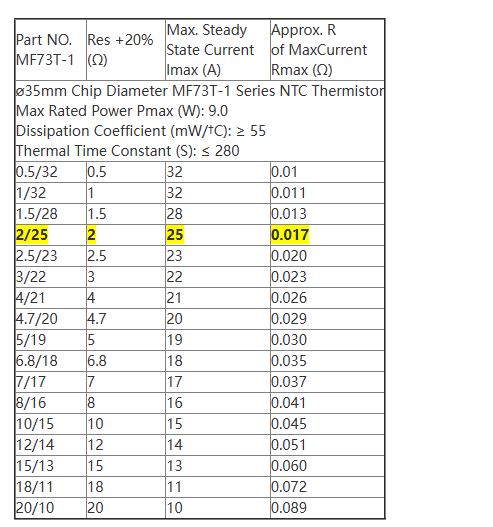

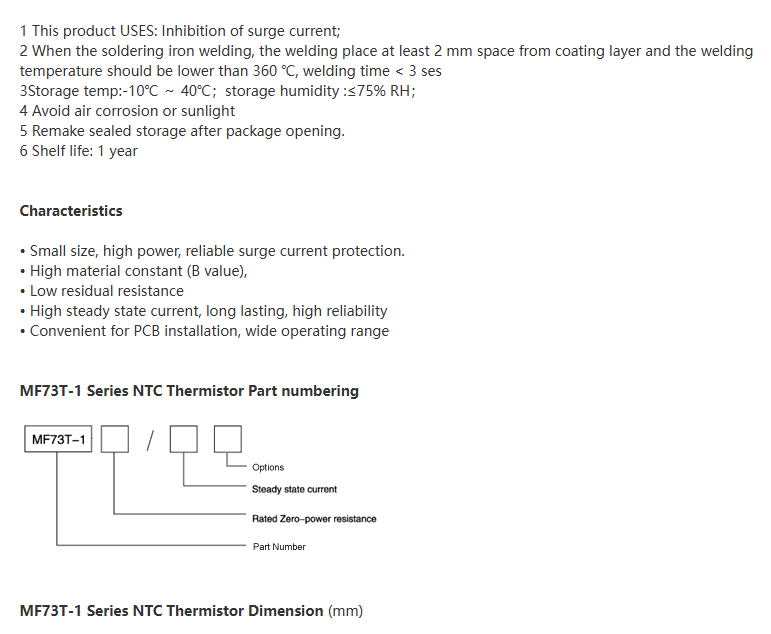

MF73T-1 Series NTC Thermistor Technical Specifications
Working Temperature: -55~200℃
