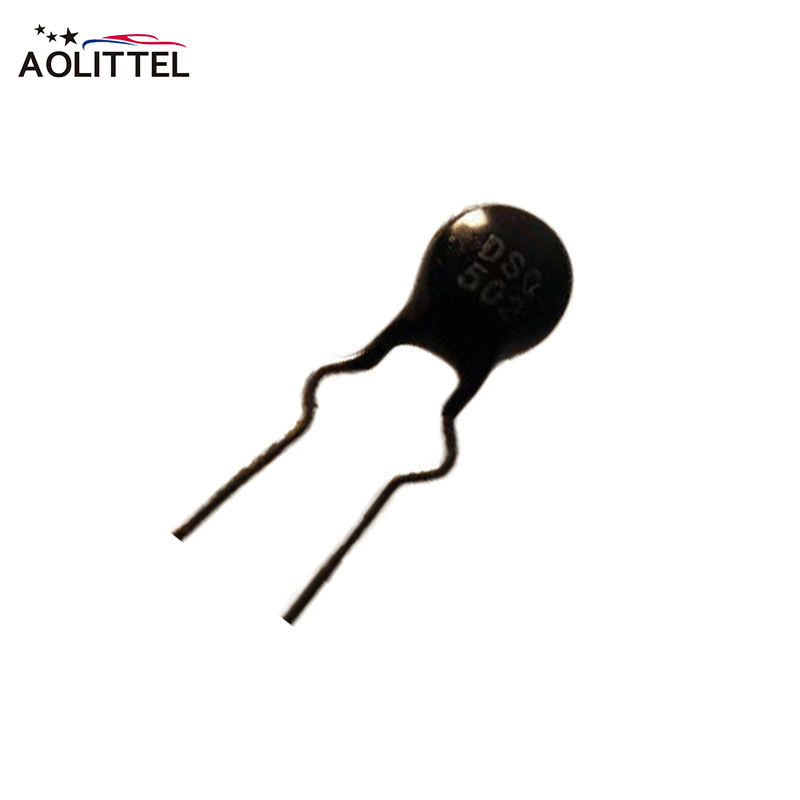

Original Korea DSC 3PHI 5PHI Small Size Disc NTC Thermistor 3mm 5mm 10K Ohm 5%
▷ Introduction Of The Original Korea DSC 3PHI 5PHI Small Size Disc NTC Thermistor
The small size disc thermistor are low cost, epoxy coated disc divice. They are designed for temperature control sensing and also temperature compensation circuits. Suitable for temperature ranges from-20℃ to +130℃, these devices are the ideal choice for Automotive and customer electronic applications. The series offer a complete range of standard ohmic values with dissipation constant values from 2.0mW/℃ to 7.5mW/℃ Custom resistance values and tolerances can be manufactured to meet specific customer requirements.
▷ Features Of The Original Korea DSC 3PHI 5PHI Small Size Disc NTC Thermistor
* Low cost & High quality
* Epoxy encapsulated and solderable leads.
* High power rating.
* Wide range of both standard and custom resistance values.

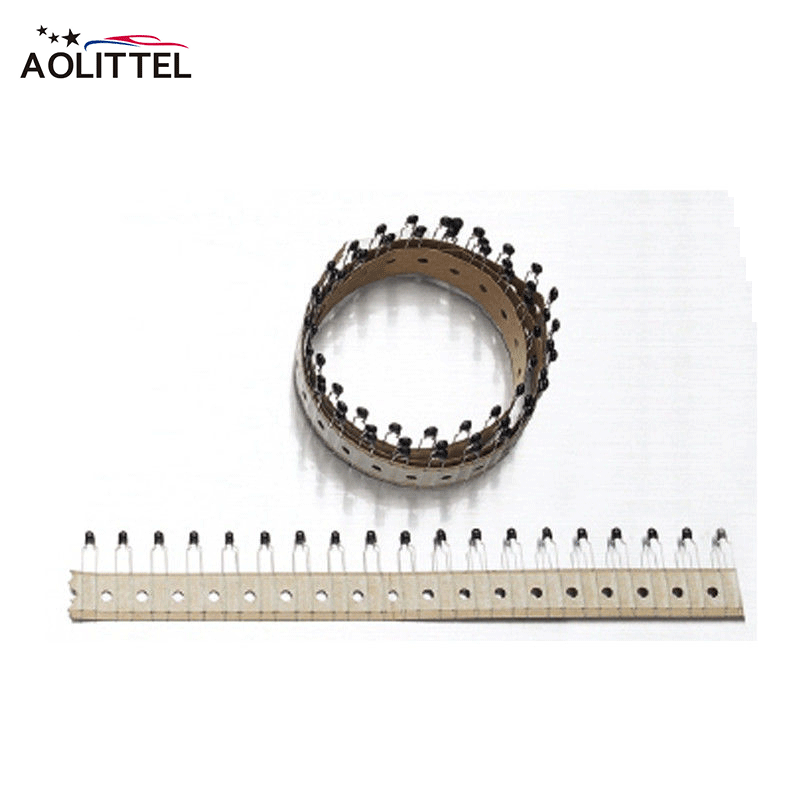

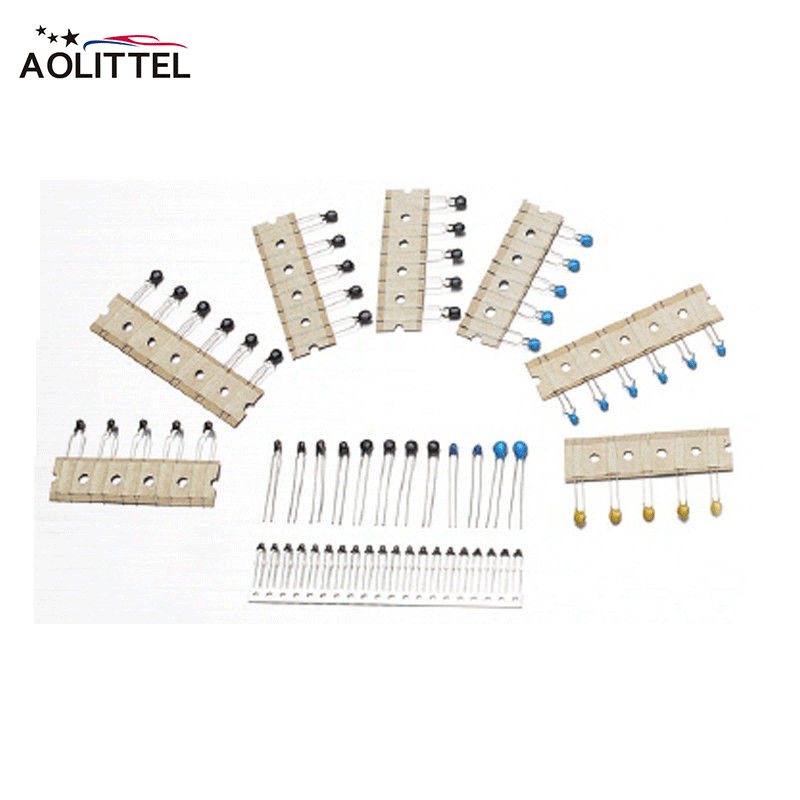

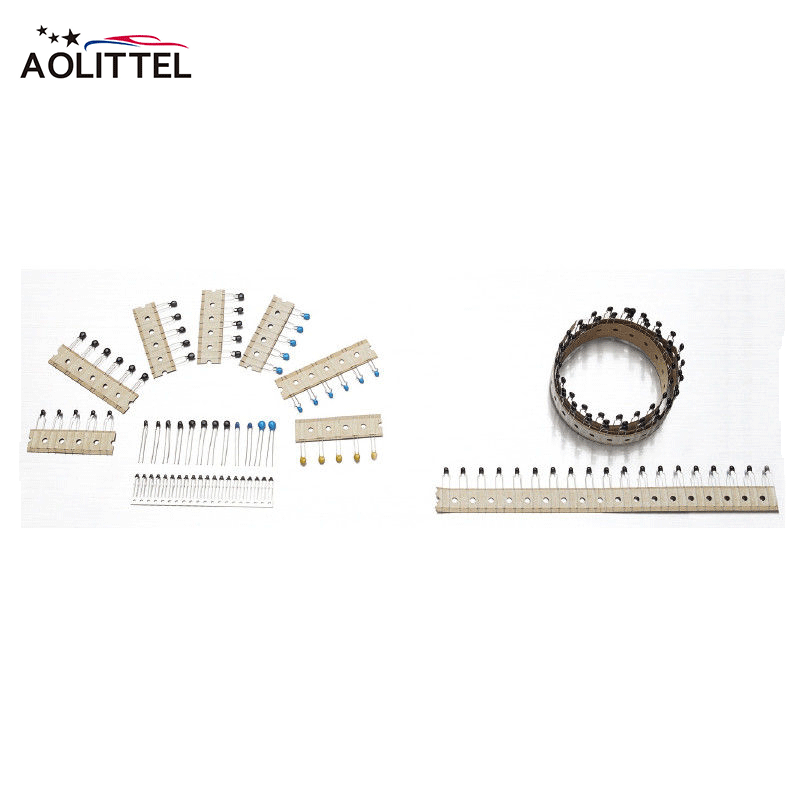

* Available in tape.
* Available in ±1%, ±3% and ±5% tolerance on R25 values.
▷ Size Of The Original Korea DSC 3PHI 5PHI Small Size Disc NTC Thermistor
| Series | D | T | l | d | P (pitch) | W | H1 | H2 | H3 | H4 | ||||||||||||||||||||||||
| S / O | I | L | max. | |||||||||||||||||||||||||||||||
| 2 | max. 3.0 | max. 3.0 | min 25.0 | Ø0.50 ± 0.02 | 2.5 | 5 | 2.5 | 3.0 | 5.0 | 7.0 | 7.0 | 6.5 | ||||||||||||||||||||||
| 3 | max. 3.8 | max. 3.2 | -0.2 | -0.2 | 5.0 | 3.0 | 7.0 | 8.5 | 8.5 | 7.0 | ||||||||||||||||||||||||
| 5 | max. 6.0 | max. 3.5 | +0.5 | +0.5 | 5.0 | 3.0 | 8.0 | 9.0 | 9.0 | 8.0 | ||||||||||||||||||||||||
* P : Lead wire space
** W : Lead coating length
*** Lead cut length is variable upon request L= min.3.0 ~ max.8.0mm
▷ Applications Of The Original Korea DSC 3PHI 5PHI Small Size Disc NTC Thermistor
* Detection and control temperatures for air conditioning equipment.
* Automotive Electronics.
* Temperature compensation for transistors and electronic circuits.
* Consumer Electronics.
* Electronic data processing equipment.
* Delay circuits.
▷ Electrical Specification Of The Original Korea DSC 3PHI 5PHI Small Size Disc NTC Thermistor
DSC 2PHI SERIES
| Nominal Diameter (mm) | Part No. | Nominal Resistance at 25℃(ohms) | R.Tolerance ±(%) | Beta Value (K, 25/85℃) | Rated Power at 25℃(mW) | Dissipation Constant (mW/℃) | Time Constant (Sec.) | Max. Operating Temp.(℃) | |||||||||||||||||||
| Ø2 | DC102 □ 2◇△ | 1,000 | 1,2,3,5,10 | 3500 | 100 | 2.0 | 8 | 120 | |||||||||||||||||||
| DC202 □ 2◇△ | 2,000 | 1,2,3,5,10 | 3550 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| 2,000 | 1,2,3,5,10 | 3620 | 100 | 2.0 | 8 | 120 | |||||||||||||||||||||
| DC302 □ 2◇△ | 3,000 | 1,2,3,5,10 | 3750 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| DC402 □ 2◇△ | 4,000 | 1,2,3,5,10 | 3800 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| DC472 □ 2◇△ | 4,700 | 1,2,3,5,10 | 3850 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| DC502 □ 2◇△ | 5,000 | 1,2,3,5,10 | 3850 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| 5,000 | 1,2,3,5,10 | 3910 | 100 | 2.0 | 8 | 120 | |||||||||||||||||||||
| DC103 □ 2◇△ | 10,000 | 1,2,3,5,10 | 3435 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| 10,000 | 1,2,3,5,10 | 3500 | 100 | 2.0 | 8 | 120 | |||||||||||||||||||||
| 10,000 | 1,2,3,5,10 | 3950 | 100 | 2.0 | 8 | 120 | |||||||||||||||||||||
| DC123 □ 2◇△ | 12,000 | 1,2,3,5,10 | 3970 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| DC153 □ 2◇△ | 15,000 | 1,2,3,5,10 | 4000 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| DC203 □ 2◇△ | 20,000 | 1,2,3,5,10 | 4050 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| DC253 □ 2◇△ | 25,000 | 1,2,3,5,10 | 4050 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| DC303 □ 2◇△ | 30,000 | 1,2,3,5,10 | 4100 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| DC333 □ 2◇△ | 33,000 | 1,2,3,5,10 | 4100 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| DC473 □ 2◇△ | 47,000 | 1,2,3,5,10 | 4150 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| DC503 □ 2◇△ | 50,000 | 1,2,3,5,10 | 4200 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| DC683 □ 2◇△ | 68,000 | 1,2,3,5,10 | 4200 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| DC104 □ 2◇△ | 100,000 | 1,2,3,5,10 | 4350 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| DC154 □ 2◇△ | 150,000 | 1,2,3,5,10 | 4400 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| DC204 □ 2◇△ | 200,000 | 1,2,3,5,10 | 4500 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| DC224 □ 2◇△ | 220,000 | 1,2,3,5,10 | 4500 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
| DC404 □ 2◇△ | 400,000 | 1,2,3,5,10 | 4750 | 100 | 2.0 | 8 | 120 | ||||||||||||||||||||
□ = R. Tolerance : F = ± 1%; G = ± 2%; H = ± 3%; J = ± 5%; K = ± 10%;
◇=Lead Type; △=Taping Form
DSC 3PHI SERIES
| ▷ Part numbers and Specifications | ||||||||
| Nominal | Part No. | Resistance | R.Tolerance | Beta | Rated | Dissipation | Time | Max |
| Diameter | at 25℃ | (%) | Constant | Power at | Constant | Constant | Operating | |
| (㎜) | (Ω) | (K,25/ 85℃) | 25℃(㎽) | (㎽/℃) | (Sec.) | Temp. (℃) | ||
| 3 | 101 3 | 100 | 1, 2, 3, 5, 10 | 3180 | 200 | 2.8 | 14 | 120 |
| 121 3 | 120 | 1, 2, 3, 5, 10 | 3180 | 200 | 2.8 | 14 | 120 | |
| 151 3 | 150 | 1, 2, 3, 5, 10 | 3180 | 200 | 2.8 | 14 | 120 | |
| 201 3 | 200 | 1, 2, 3, 5, 10 | 3200 | 200 | 2.8 | 14 | 120 | |
| 501 3 | 500 | 1, 2, 3, 5, 10 | 3430 | 200 | 2.8 | 14 | 120 | |
| 102 3 | 1000 | 1, 2, 3, 5, 10 | 3600 | 200 | 2.8 | 14 | 120 | |
| 152 3 | 1500 | 1, 2, 3, 5, 10 | 3650 | 200 | 2.8 | 14 | 120 | |
| 1500 | 1, 2, 3, 5, 10 | 4150 | 200 | 2.8 | 14 | 120 | ||
| 202 3 | 2000 | 1, 2, 3, 5, 10 | 3750 | 200 | 2.8 | 14 | 120 | |
| 2000 | 1, 2, 3, 5, 10 | 4200 | 200 | 2.8 | 14 | 120 | ||
| 222 3 | 2200 | 1, 2, 3, 5, 10 | 3750 | 200 | 2.8 | 14 | 120 | |
| 252 3 | 2500 | 1, 2, 3, 5, 10 | 3750 | 200 | 2.8 | 14 | 120 | |
| 272 3 | 2700 | 1, 2, 3, 5, 10 | 3800 | 200 | 2.8 | 15 | 120 | |
| 302 3 | 3000 | 1, 2, 3, 5, 10 | 3850 | 200 | 2.8 | 15 | 120 | |
| 332 3 | 3300 | 1, 2, 3, 5, 10 | 3850 | 200 | 2.8 | 15 | 120 | |
| 402 3 | 4000 | 1, 2, 3, 5, 10 | 3850 | 200 | 2.8 | 15 | 120 | |
| 472 3 | 4700 | 1, 2, 3, 5, 10 | 3900 | 200 | 2.8 | 15 | 120 | |
| 502 3 | 5000 | 1, 2, 3, 5, 10 | 3450 | 200 | 2.9 | 15 | 120 | |
| 5000 | 1, 2, 3, 5, 10 | 3900 | 200 | 2.9 | 15 | 120 | ||
| 682 3 | 6800 | 1, 2, 3, 5, 10 | 3900 | 200 | 2.9 | 15 | 120 | |
| 103 3 | 10000 | 1, 2, 3, 5, 10 | 3450 | 200 | 3 | 15 | 120 | |
| 10000 | 1, 2, 3, 5, 10 | 3970 | 200 | 3 | 15 | 120 | ||
| 10000 | 1, 2, 3, 5, 10 | 4040 | 200 | 3 | 15 | 120 | ||
| 123 3 | 12000 | 1, 2, 3, 5, 10 | 3970 | 200 | 3 | 15 | 120 | |
| 153 3 | 15000 | 1, 2, 3, 5, 10 | 4050 | 200 | 3 | 15 | 120 | |
| 15000 | 1, 2, 3, 5, 10 | 4150 | 200 | 3 | 15 | 120 | ||
| 203 3 | 20000 | 1, 2, 3, 5, 10 | 4100 | 200 | 3 | 16 | 120 | |
| 223 3 | 22000 | 1, 2, 3, 5, 10 | 4100 | 200 | 3 | 16 | 120 | |
| 253 3 | 25000 | 1, 2, 3, 5, 10 | 4150 | 200 | 3 | 16 | 120 | |
| 303 3 | 30000 | 1, 2, 3, 5, 10 | 4150 | 200 | 3 | 16 | 120 | |
| 333 3 | 33000 | 1, 2, 3, 5, 10 | 4150 | 200 | 3 | 16 | 120 | |
| 403 3 | 40000 | 1, 2, 3, 5, 10 | 4200 | 200 | 3 | 16 | 120 | |
| 473 3 | 47000 | 1, 2, 3, 5, 10 | 4250 | 200 | 3 | 16 | 120 | |
| 503 3 | 50000 | 1, 2, 3, 5, 10 | 4280 | 200 | 3 | 16 | 120 | |
| 683 3 | 68000 | 1, 2, 3, 5, 10 | 4350 | 200 | 3 | 16 | 120 | |
| 104 3 | 100000 | 1, 2, 3, 5, 10 | 4350 | 200 | 3 | 16 | 120 | |
| 100000 | 1, 2, 3, 5, 10 | 4500 | 200 | 3 | 16 | 120 | ||
| 154 3 | 150000 | 1, 2, 3, 5, 10 | 4600 | 200 | 3 | 16 | 120 | |
| 204 3 | 200000 | 1, 2, 3, 5, 10 | 4700 | 200 | 3 | 16 | 120 | |
| 224 3 | 220000 | 1, 2, 3, 5, 10 | 4720 | 200 | 3 | 16 | 120 | |
| 244 3 | 240000 | 1, 2, 3, 5, 10 | 4450 | 200 | 3 | 16 | 120 | |
| 304 3 | 300000 | 1, 2, 3, 5, 10 | 4800 | 200 | 3 | 16 | 120 | |
| 334 3 | 330000 | 1, 2, 3, 5, 10 | 4800 | 200 | 3 | 16 | 120 | |
| 404 3 | 400000 | 1, 2, 3, 5, 10 | 4900 | 200 | 3 | 16 | 120 | |
