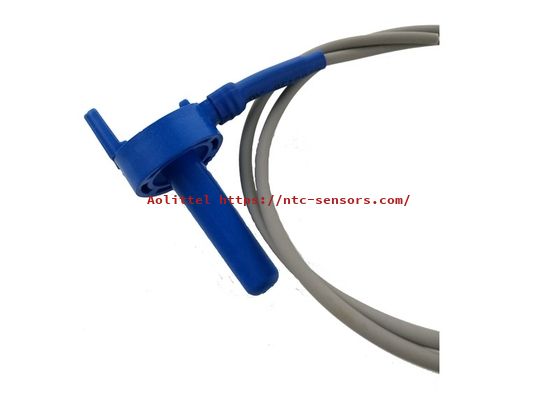

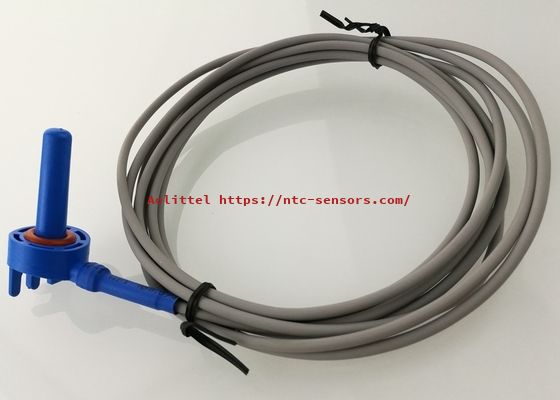

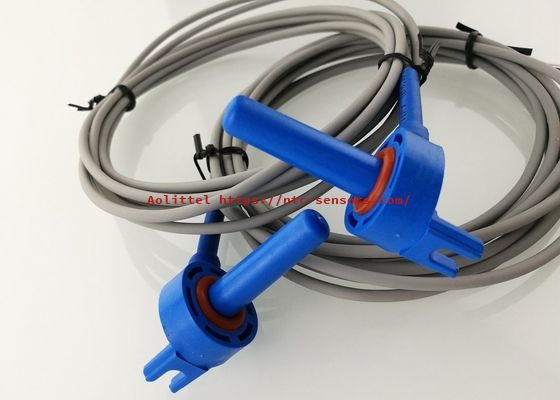

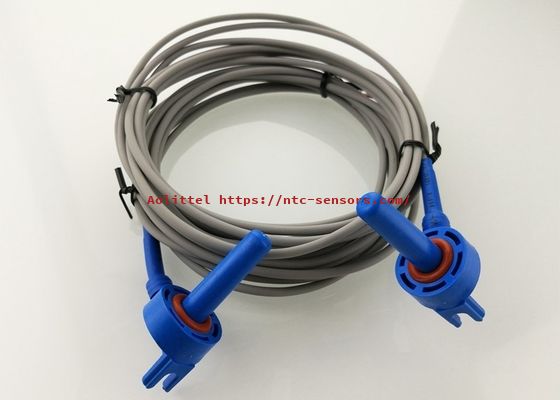

Air Water Solar Micro Temperature Sensor 10K With 10-Feet Cable Replacement Pool Spa Automation Control Systems and Pump
Description
This air/water/solar temperature sensor is designed to use with Pentair IntelliTouch, EasyTouch, SunTouch, Compool pool and spa automatic control system and also compatible with Pentair MiniMax Plus pool and spa heater pump. Includes 10K-Ohm thermistor, 10-feet cable.
______________________________________________________________________________
Contact Aolitte________
Dimension (mm)
Material
| NO | COMPONENT | MATERIAL AND SPECIFICATIONS | Q'TY | REMARK |
| a | ELEMENT | R25=10KΩ±1% B25/85=3977K±1% B25/100=3995±1% | 1 | |
| b | HOUSING | Plastic Housing | 1 | Blue |
| c | COATING | Thermally Conductive Epoxy | ||
| d | LEAD WIRE |
TPE AWG24(0.5mm*2C) OD3.3mm (Red and White) (both ends stripped but not tinned) |
1 | Gray |
| e | CASING | Heat shrinkable casing (Ф7+Ф8) | 3 | Blue |
Performances
| NO | Item | Sign | Test Conditions | Min. | Normal value | Max. | Unit |
| I | Resistance at 25℃ | R25 |
Ta=25±0.05℃ PT≦0.1mw |
9.900 | 10.000 | 10.100 | kΩ |
| II | B Value | B25/85 | 3937.3 | 3977.0 | 4016.7 | k | |
| B25/100 | 3955.05 | 3995 | 4034.95 | ||||
| III | Dissipation factor | σ | Ta=25±0.5℃ | 2.5 | / | mw/℃ | |
| IV | Time constant | τ | Ta=25±0.5℃ | / | / | 15 | sec |
| VI | Insulation resistance | / | 500VDC | 100 | / | / | MΩ |
| VII | Withstand voltage | / | 1500V AC | 5 | / | / | Sec |
| VIII. | Operating temp.range | / | / | -40 | / | +105 | ℃ |
Reliability Test
| NO | Item | Technical requirements | Test conditions and method |
| 1. | High temp. Test |
DR/R25£±3%
DB/B£±3%
No change with withstand voltage, Insalution performance. Appearance without damage. |
105±5℃,power on 500±24 hrs,DC0.2mA |
| 2. | Low temp. tes | -40±5℃,power on 500±24 hrs,DC0.2mA | |
| 3. | Endure moisture test | Store in environment 55±2℃,90%-95%RH for 500±24 hrs | |
| 4. | Temp. cycle test | –20℃×30min→Room temp.×10min→ in 100℃ water×30min→Room temp.×10min 10 cycles | |
| 5 | Load electrify test | Power on DC1mA,500hrs in room temp. and humid. | |
| 6 | Tensile tests | Applying 2 kg force lasts 1 min. | |
| 7 | Drop test | Free fall into concrete floor from height 1M ,10 cycle. | |
| 8 | Vibration test | Frequency range:10～55HZ Total amplitude 1.52mm 1 cycle 1 min ,direction and time X,Y,Z axs 2Hr each. | |
| 9 | Bending test | Bend 180°binding site wire and epoxy resin.Back and forth 10 times |
Advantages
Keep your pool a cool, comfortable temperature with the correct sensor! This aftermarket temperature sensor can be used as a water, air, or solar temp sensor for Pentair’s IntelliTouch, EasyTouch, and SunTouch swimming pool control systems.
Micro Temeperature Sensor can be strapped to a pipe with a clamp to measure water temperature, or it can also be used to measure air temperature for use as Freeze protection. The temperature sensor is also used as a solar sensor, placed near solar panels, to detect temperatures near the panel, to determine when conditions are right to send water to solar panels. Micro Temeperature Sensor includes a 10 ft 2-wire cable to connect to internal home panels, or when solar panels are located far from the controller.
Features
• Water/Air/Solar - The AquaLink RS provides terminals for up to three Temperature Sensors, specifically for Water, Air, and Solar
• 10K Ohms Thermistor
• Compatible with Zodiac, Jandy, and Polaris Controls
• Compatibility: Pentair’s IntelliTouch, EasyTouch, and SunTouch systems
• Replaces: Pentair 520272, TS5T, and STS5T (red and black wires)
• Includes 10K ohms NTC thermistor, 10-feet cord, 1 O-rings
Function
To use as a water temperature sensor: Insert the sensor into a small opening in the pipe between your pool's filter pump and filter using a hose clamp.
To use as an air temperature sensor: Mount the sensor in open air outside the power center in the shade and away from air conditioners, motors, and other heat sources.
To use as a solar temperature sensor: Fasten the sensor next to solar panels for unglazed panels or suspend between the collector and glazing for glazed panels.
10K Temperature Sensor Install Guide for IntelliTouch EasyTouch and SunTouch
APPLICATION:
Temperature Sensor used with the IntelliTouch®, EasyTouch® and SunTouch™ Systems. This sensor may be used as a Water, Air,or Solar sensor.
REPLACEMENT KIT (P/N CWFB0103FC-312XSP12) INCLUDES:
QTY. DESCRIPTION
1 Temperature Sensor, 10K, 10 ft.
1 O-Ring
INSTALLATION:
Water Temperature Sensor Replacement
1. Find the old Water Sensor located between the filter pump and the filter. Remove old Sensor and position the hose clamp over the new Sensor, and gently tighten around pipe.
Caution: Do not overtighten clamp.
2. Feed the cable up through the low voltage compartment of the Load/Power Center to the Control Panel. Strip wires 1/4 in. and connect Sensor wires to WATER screw terminals.
Solar Temperature Sensor
1. For unglazed panels, fasten Sensor next to solar panels. For glazed panels, suspend Sensor between collector and glazing.
2. Feed the cable up through the low voltage compartment of the Load/Power Center to the Control Panel. Strip wires 1/4 in. and connect Sensor wires to the SOLAR screw terminals.
Ambient Air Temperature (Freeze Protection) Sensor
1. Mount sensor in open air, in shaded area, away from air conditioners. Feed the cable up through the low voltage compartment of the Load/Power Center to the Control Panel, fastening to plumbing with cable ties. Strip wires 1/4 in. and connect Sensor wires to AIR screw terminals.
