waterproof temperature probe thermistor NTC sensor 50K 10K 100k 3950 3435 3977 1% NTC Temperature Sensor

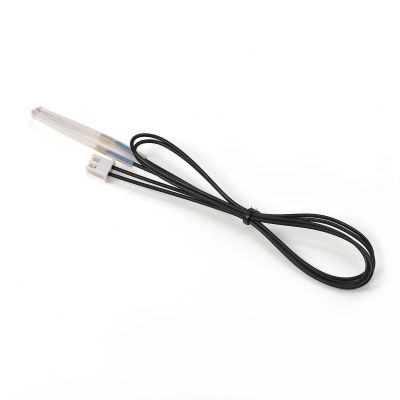

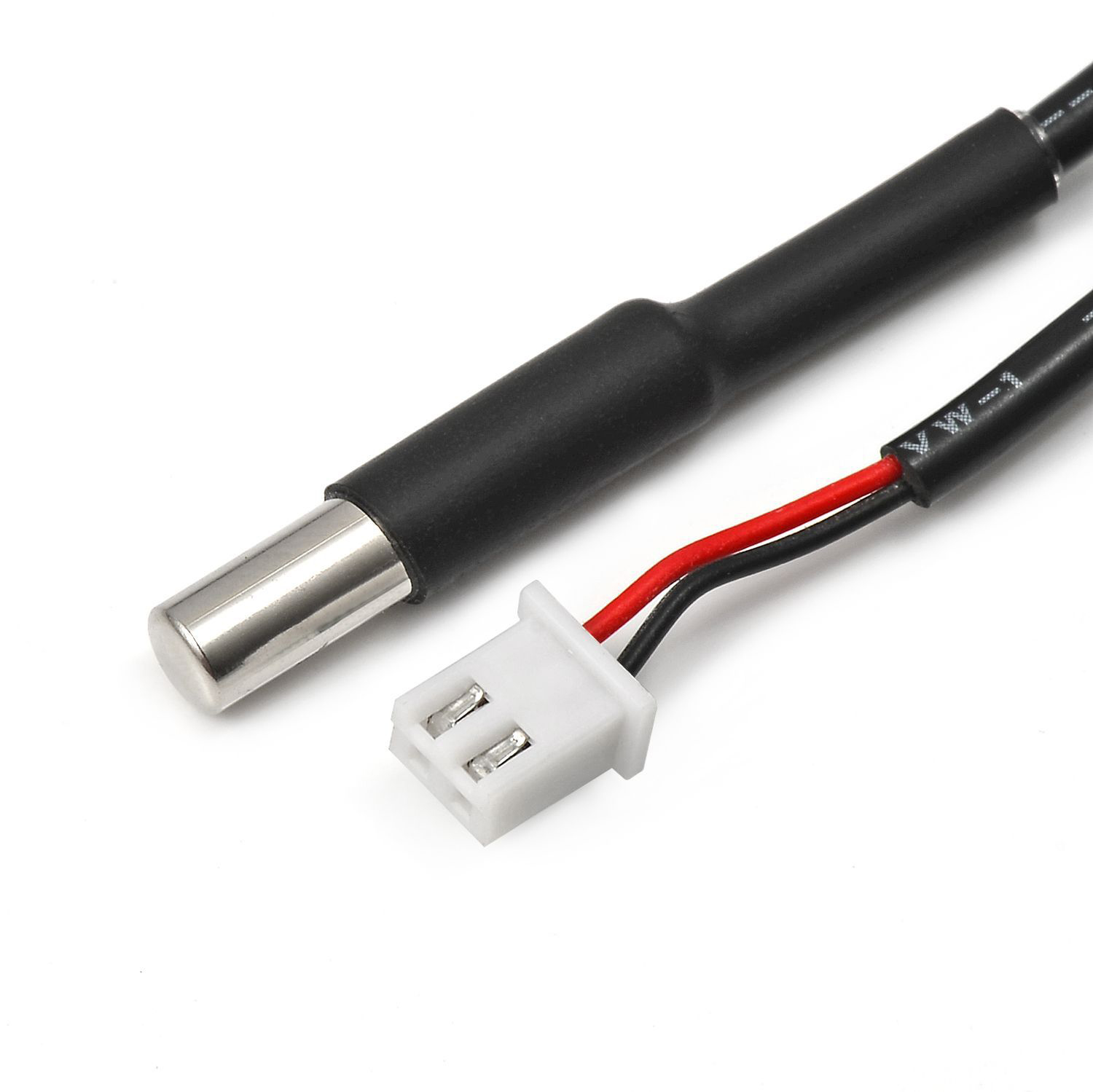

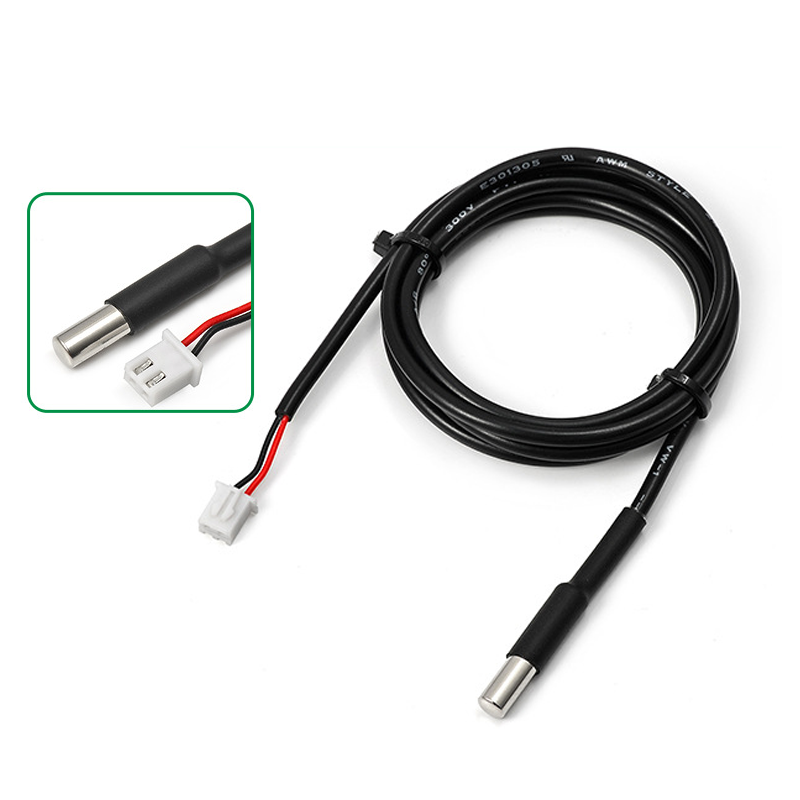

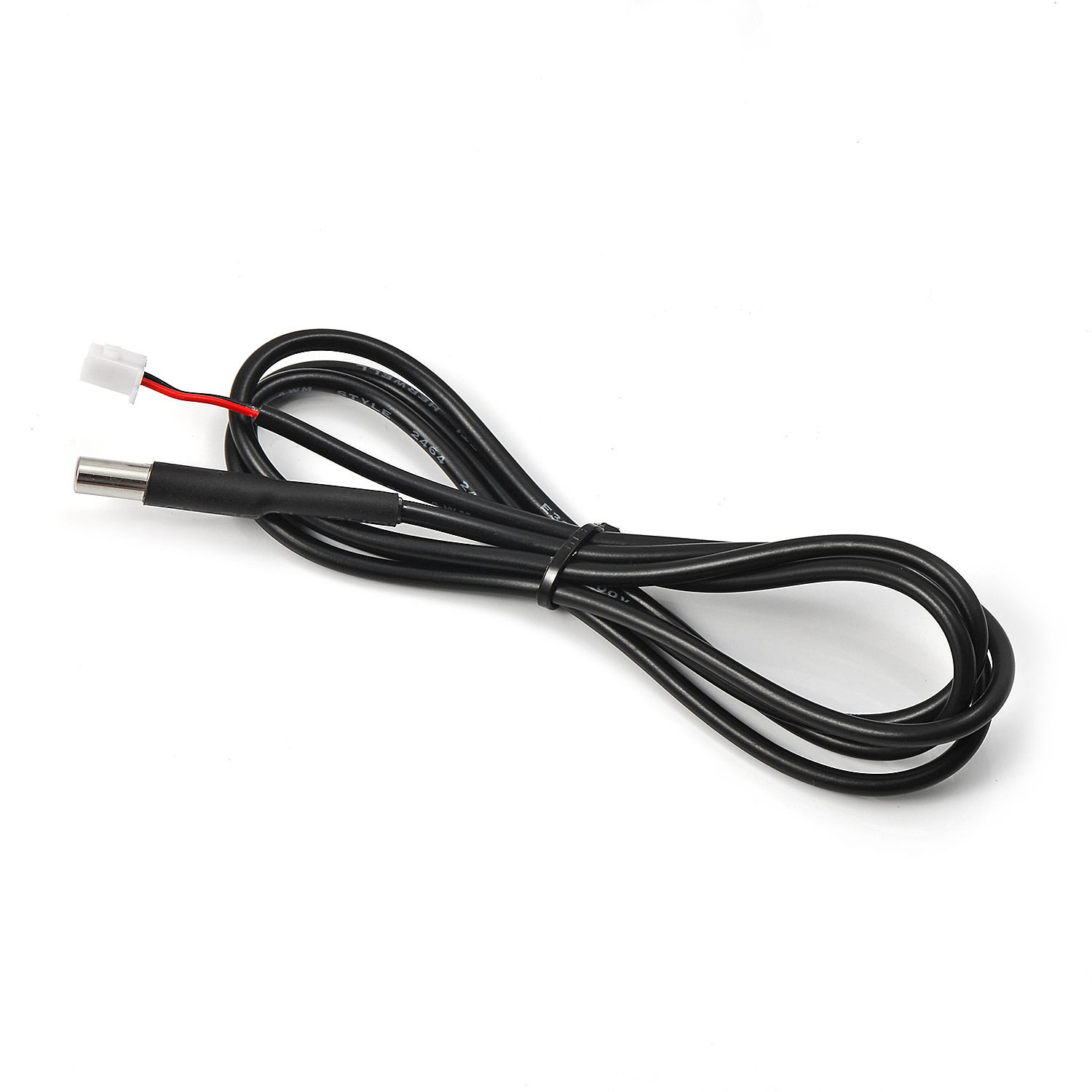

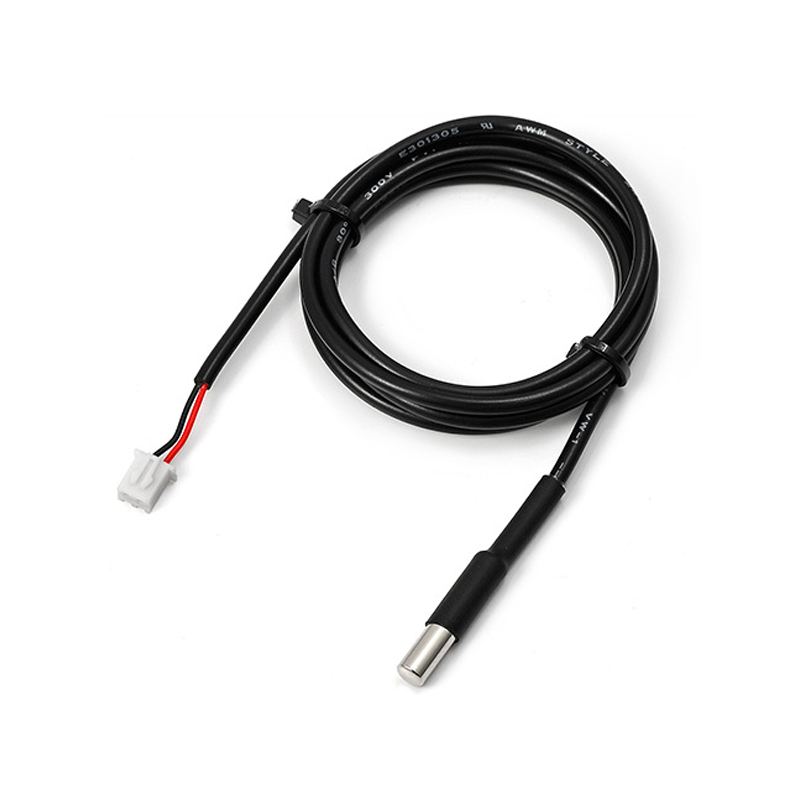

NTC temperature sensor [Tube type probe]

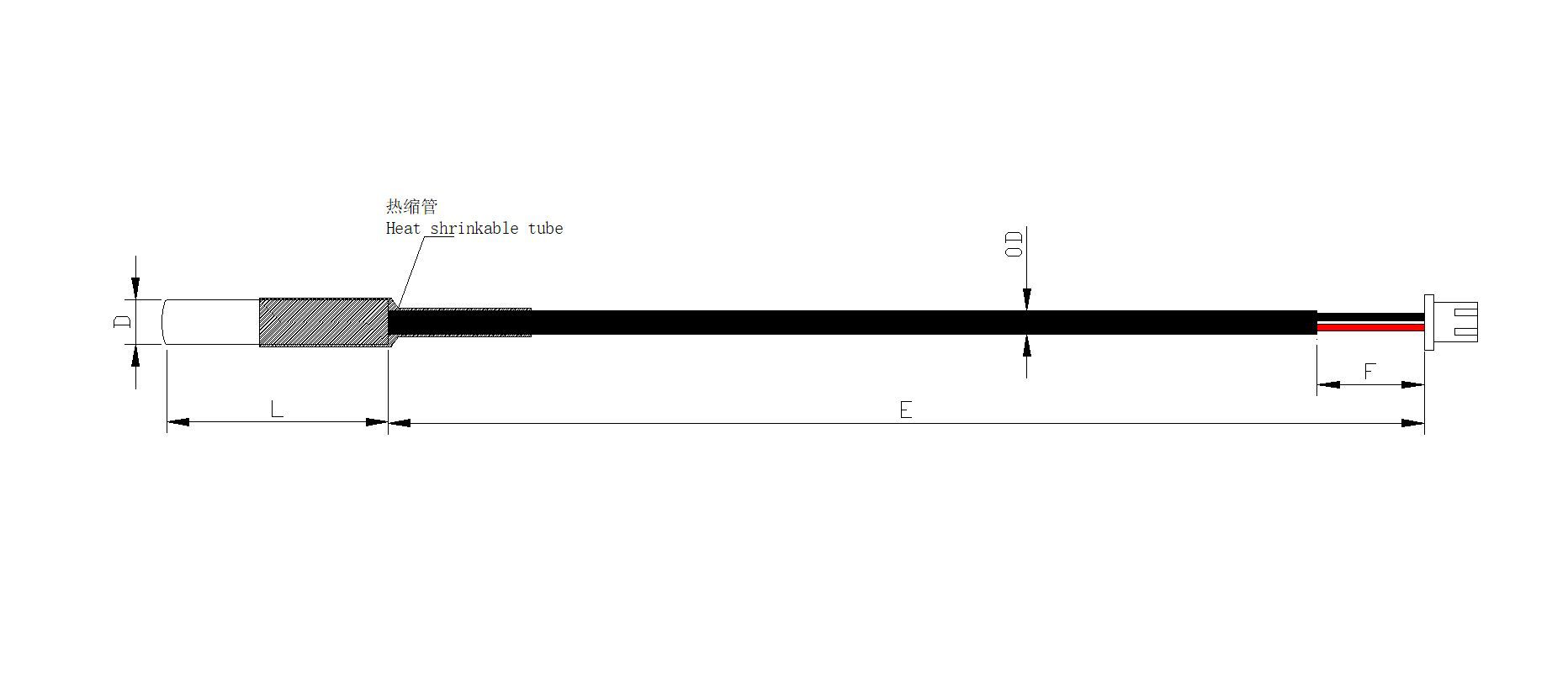

SIZE

D

L

E

F

Φod

G

Unit(mm)

5

25

750

25

3

/

Product Features

 1. Sturdy structure, good consistency in probe size 2. The wire is protected on both sides and sealed with a conduit 3. The metal
shell can withstand high and low temperature impacts without peeling off 4. Size and performance can be customized and varied 5.
Wide resistance range: 1K Ω~500k Ω

Product application

Temperature control instruments, indoor constant temperature, warm air heaters, and other small household appliances, as well as
constant temperature thermometers, thermostats, aquaculture monitoring, underfloor heating thermostats, and more

Working temperature range

-40~80 ℃ (depending on the wire)

response time

Approx 7 S (depending on chip resistance and size)

Voltage endurance

1800V AC 0.5mA  30S
