Surface Mount Package Chip NTC Thermistor 0402 0603 0805 SMD For Smartphone Tablet Automotive xEV Wearables Medical
Description
Chip NTC thermistors are thermally sensitive semiconductive resistors that are designed for temperature measurement and compensation. The portfolio covers NTC thermistors with excellent long-term stability in high-temperature and high humidity environment, e.g. for smart phone, tablet by small case size, automotive applications, LED modules and industrial applications. Tight tolerances of resistance and B value allow highly accurate temperature sensing capabilities.
________________________________________________________________________
Contact Aolitte_______

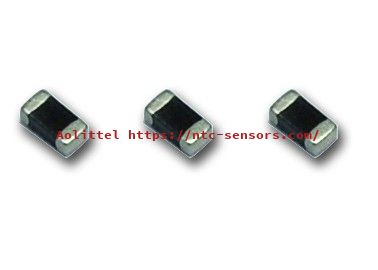

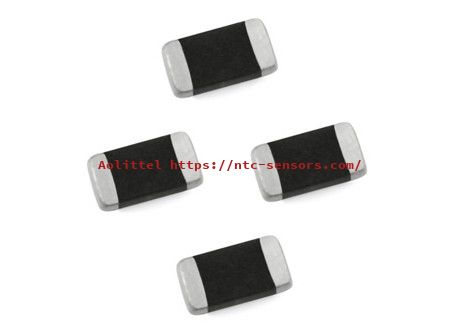

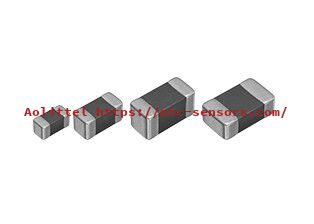

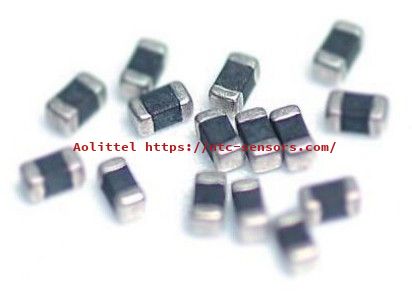

Appearance
Construction
Main Features
Terminal electrodes with Ag-Ni-Sn three-layer structure having excellent weldability, soldering resistance;
Monolayer structure technology, distribution capacity is low (less than 3PF), can be used in high-frequency field;Glass surface using encapsulation technology (10 μm), having good mechanical strength and moisture resistance, and corrosion resistance.Operating temperature range is -40~+125℃.
Dimension: mm (inch)
| 0402(1005) |  |
| 0603(1608) |  |
| 0805(2012) |  |
Specification
| 0402 Series Specification | ||
| Product Model | 25°C Resistance Value (KΩ) | B Value °C 25/50(K) |
| SNC101B12700□0402E | 0.1 | 2700 |
| SNC221B12750□0402E | 0.22 | 2750 |
| SNC331B12800□0402E | 0.33 | 2800 |
| SNC471B13850□0402E | 0.47 | 2850 |
| SNC681B12900□0402E | 0.68 | 2900 |
| SNC102B13000□0402E | 1 | 3000 |
| SNC202B13000□0402E | 2.2 | 3000 |
| SNC222B13000□0402E | 2.2 | 3000 |
| SNC222B13850□0402E | 2.2 | 3850 |
| SNC332B13200□0402E | 3.3 | 3200 |
| SNC472B13200□0402E | 4.7 | 3250 |
| SNC682B13200□0402E | 6.8 | 3350 |
| SNC103B13370□0402E | 10 | 3370 |
| SNC103B13434□0402E | 10 | 3435 |
| SNC103B13900□0402E | 10 | 3900 |
| SNC153B13500□0402E | 15 | 3500 |
| SNC153B13900□0402E | 15 | 3900 |
| SNC223B13600□0402E | 22 | 3600 |
| SNC223B13900□0402E | 22 | 3900 |
| SNC333B13950□0402E | 33 | 3950 |
| SNC473B13900□0402E | 47 | 3900 |
| SNC473B13900□0402E | 47 | 4050 |
| SNC503B14050□0402E | 50 | 4050 |
| SNC683B13950□0402E | 68 | 3950 |
| SNC104B14100□0402E | 100 | 4100 |
| SNC104B14360□0402E | 100 | 4360 |
| SNC224B14200□0402E | 220 | 4200 |
| SNC334B14300□0402E | 330 | 4300 |
| SNC474B14500□0402E | 470 | 4500 |
| SNC564B14500□0402E | 560 | 4500 |
| 0603 Series Specification | ||
| Product Model | 25°C Resistance Value (KΩ) | B Value °C 25/50(K) |
| SNC101B12700□0603E | 0.1 | 2700 |
| SNC221B12750□0603E | 0.22 | 2750 |
| SNC331B12800□0603E | 0.33 | 2800 |
| SNC471B12850□0603E | 0.47 | 2850 |
| SNC681B12900□0603E | 0.68 | 2900 |
| SNC102B13000□0603E | 1 | 3000 |
| SNC202B13000□0603E | 2.2 | 3000 |
| SNC222B13000□0603E | 2.2 | 3000 |
| SNC222B13850□0603E | 2.2 | 3850 |
| SNC332B13200□0603E | 3.3 | 3200 |
| SNC472B13200□0603E | 4.7 | 3200 |
| SNC502B13400□0603E | 5 | 3400 |
| SNC682B13400□0603E | 6.8 | 3400 |
| SNC103B13370□0603E | 10 | 3370 |
| SNC103B13435□0603E | 10 | 3435 |
| SNC103B13900□0603E | 10 | 3900 |
| SNC153B13500□0603E | 15 | 3500 |
| SNC153B13900□0603E | 15 | 3900 |
| SNC223B13600□0603E | 22 | 3600 |
| SNC223B13900□0603E | 22 | 3900 |
| SNC333B13950□0603E | 33 | 3950 |
| SNC473B13900□0603E | 47 | 3900 |
| SNC473B14050□0603E | 47 | 4050 |
| SNC503B14050□0603E | 50 | 4050 |
| SNC683B13950□0603E | 68 | 3950 |
| SNC104B14100□0603E | 100 | 4100 |
| SNC104B14350□0603E | 100 | 4350 |
| SNC224B14200□0603E | 220 | 4200 |
| SNC334B14300□0603E | 330 | 4300 |
| SNC474B14500□0603E | 470 | 4500 |
| SNC564B14500□0603E | 560 | 4500 |
| 0805 Series Specification | ||
| Product Model | 25°C Resistance Value (KΩ) | B Value °C 25/50(K) |
| SNC101B12700□0805E | 0.1 | 2700 |
| SNC221B12750□0805E | 0.22 | 2750 |
| SNC331B12800□0805E | 0.33 | 2800 |
| SNC471B12850□0805E | 0.47 | 2850 |
| SNC681B12900□0805E | 0.68 | 2900 |
| SNC102B13000□0805E | 1 | 3000 |
| SNC202B13000□0805E | 2.2 | 3000 |
| SNC222B13000□0805E | 2.2 | 3000 |
| SNC332B13200□0805E | 3.3 | 3200 |
| SNC472B13400□0805E | 4.7 | 3400 |
| SNC682B13400□0805E | 6.8 | 3400 |
| SNC103B13434□0805E | 10 | 3435 |
| SNC103B13900□0805E | 10 | 3900 |
| SNC153B13500□0805E | 15 | 3500 |
| SNC153B13900□0805E | 15 | 3900 |
| SNC203B13900□0805E | 20 | 3900 |
| SNC223B13600□0805E | 22 | 3600 |
| SNC223B13900□0805E | 22 | 3900 |
| SNC333B13950□0805E | 33 | 3950 |
| SNC473B13900□0805E | 47 | 3900 |
| SNC473B14050□0805E | 47 | 4050 |
| SNC503B14050□0805E | 50 | 4050 |
| SNC683B13950□0805E | 68 | 3950 |
| SNC104B14100□0805E | 100 | 4100 |
| SNC104B14360□0805E | 100 | 4360 |
| SNC224B14200□0805E | 220 | 4200 |
| SNC334B14300□0805E | 330 | 4300 |
| SNC474B14500□0805E | 470 | 4500 |
| SNC564B14500□0805E | 560 | 4500 |
