Coffee machine soybean milk machine temperature measuring probe 100K 3950 bullet head 1% ntc temperature sensor
Coffee machine soybean milk machine temperature measuring probe 100K 3950 bullet head 1% ntc temperature sensor Coffee machine soybean milk machine temperature measuring probe 100K 3950 bullet head 1% ntc temperature sensor Coffee machine soybean milk machine temperature measuring probe 100K 3950 bullet head 1% ntc temperature sensor Coffee machine soybean milk machine temperature measuring probe 100K 3950 bullet head 1% ntc temperature sensor Coffee machine soybean milk machine temperature measuring probe 100K 3950 bullet head 1% ntc temperature sensor

Coffee machine soybean milk machine temperature measuring probe 100K 3950 bullet head 1% ntc temperature sensor

Product Attributes :
Theory
NTC thermistor
Output
Thermal sensitive type
Description
ALT-TS-NTC
Available tolerances
±1%,
Operating Temperature
-40°C-85°C
B25/50
10K 50K 100K ±1%
Wire length
720mm
working temperature
150°C
Product Description

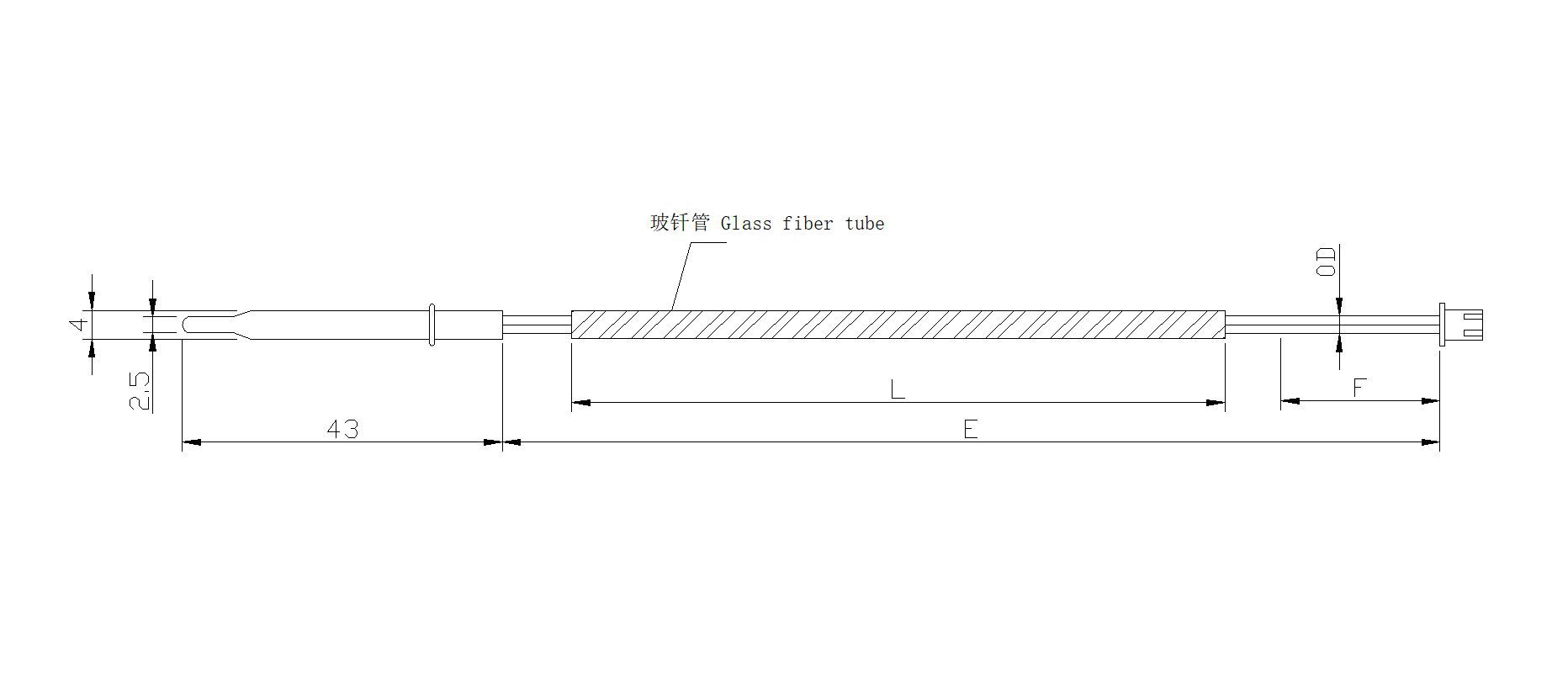

NTC temperature sensor [Tube type probe]
SIZE
D
L
E
F
Φod
G
Unit(mm)
/
650
720
25
2.85
/
Product Features
1. Second order bullet shaped structure with fast response time 2. Precise and compact temperature measurement points 3. Long term
stable work 4. Small temperature error 4. Wide resistance range: 1K Ω~500k Ω
Product application
Smart toilets, electric water heaters, coffee machines, water dispensers, Hengyu machines, and more
Working temperature range
-40~150 ℃ (Depends on packaging and wiring)
response time
Approx 5 S (Depends on the chip resistance)
Voltage endurance
1800V AC 0.5mA  30S
