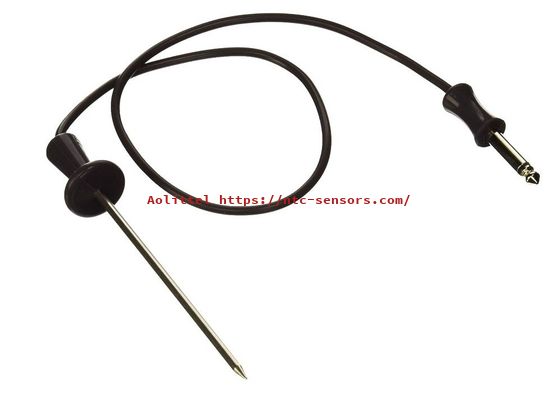

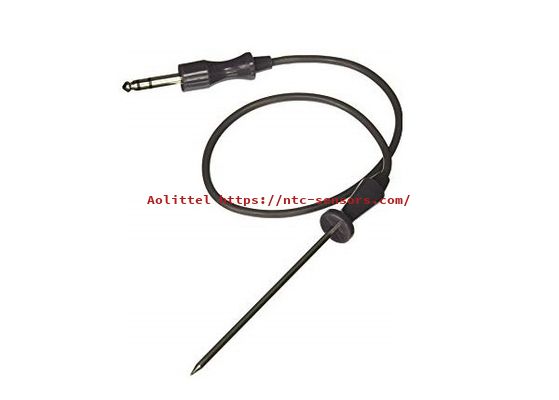

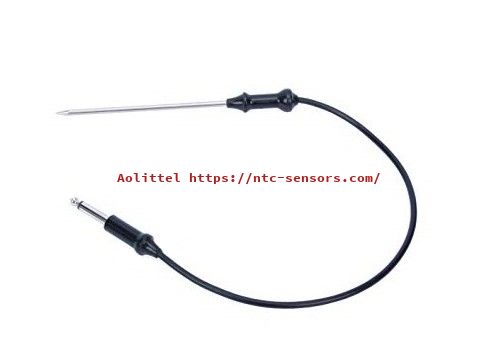

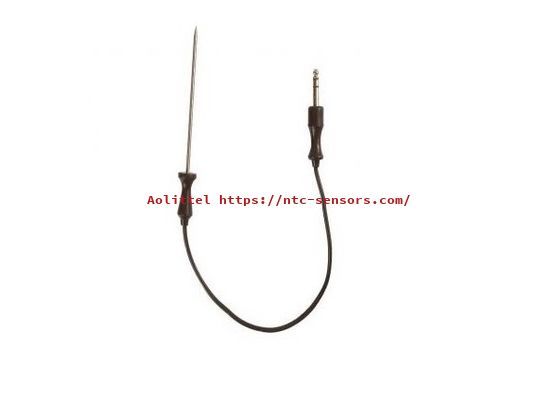

Food Grade Thermometer Gauge Thermistor Micro Temperature Sensor 50K For Oven Roast Grill Baker Meat Probe Replacement
Dimension (unit:mm)
Materials
| NO | COMPONENT | MATERIAL AND SPECIFICATIONS | Q'TY |
| 2-1. | ELEMENT | R25℃:50KΩ±3%, B0/100:4036K±1% | 1 |
| 2-2. | Casing | spaghetti sleeving | 2 |
| 2-3. | Terminals | Brass Tin Plated | 2 |
| 2-4. | Casing | spaghetti sleeving | 2 |
| 2-5. | Housing | Φ3.6 SUS304 Stainless steel | 1 |
| 2-6. | Handles | Silica gel set | 1 |
| 2-7. | LEAD WIRE | UL#22 Silicone shielded wire | 1 |
| 2-8. | Plug | Silica gel set 6.35mm | 1 |
Overview
Thermometrics Meat Probe Micro Temperature Sensors are used to measure the temperature of cooking foods. Suitable for home appliances and microwave ovens Oven Roast Grill Baker.
______________________________________________________________________________
Contact Aolitte________
Features
High operating temperature
With exisiting moulds
Fexiable customization
Waterproof
Universal model
Application
Home Appliances
Microwave Ovens
Oven
Roast
Grill
Baker
BBQ
Stove
Electrical Performances
| NO | Item | Sign | Test Conditions | Min. | Normal value | Max. | Unit |
| 4-1. | Resistance at 25℃ | R25 |
Ta=25±0.05℃ PT≦0.1mw |
48.5 | 50.00 | 51.5 | kΩ |
| Resistance at 65℃ | R65 |
Ta=65±0.05℃ PT≦0.1mw |
9.615 | 10.07 | 10.54 | kΩ | |
| 4-2. | B Value | B0/100 | 3995.64 | 4036 | 4076.36 | k | |
| 4-3. | Dissipation factor | σ | Ta=25℃ (in air) | Approx 5.0 | mW/℃ | ||
| 4-4. | Time constant | τ |
25℃→100℃ T1=25+(100-25)*63.2%=72.4℃ (Under water) |
Approx 12.0 | sec | ||
| 4-5. | Insulation resistance | / | 500VDC 5Sec | ≥100 | MΩ | ||
| 4-6. | MAX. Rated power | / | 25℃ | 95 | mW | ||
| 4-7. | Hi-Pot Test | / | 1200V AC 1Sec | Max.1.0 | mA | ||
| 4-8. | Operating temp.range | / | / | -30 ～ +250 | ℃ | ||
Reliability Test
| NO | Item | Technical requirements | Test conditions and method |
| 5-1. | High temp. Storage |
DR/R25£±3%
DB/B£±3%
No change with withstand voltage, Insulation performance. Appearance without damage. |
150℃±5℃,1000±24H, 200℃±5℃,150±2H (With reference to the IEC60068-2-2/GB2423.2 test) |
| 5-2. | Low temp. Storage |
-40℃±5℃,500±24H (With reference to the IEC60068-2-1/GB2423.1 test) |
|
| 5-3. | Endure moisture test |
Store in environment 40±5℃,90%-95%RH for 1000±24 hrs (With reference to the IEC60068-2-3/GB2423.1 test) |
|
| 5-4. | Temp. cycle test | –40±2℃×30min→ 25±2℃×5min→ in 180±5℃ ×30min→25±2℃×5min × 5 cycles | |
| 5-5 | Tensile tests | Applying 1 kg force lasts 1 min. | |
| 5-6 | Drop test | Free fall into wood floor from height 1M ,3 cycle. |
Accessories (Female Connector-Jack)
1. Suitable Jack ENGINEER DRAWING : XS-451M.pdf
2. 6.3 Female Connector - Lock
