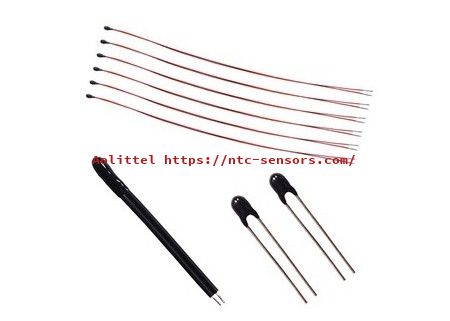

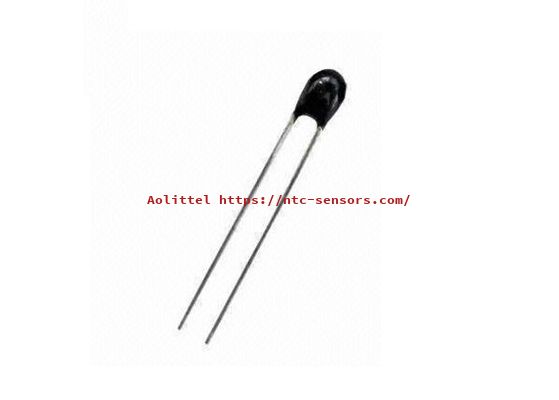

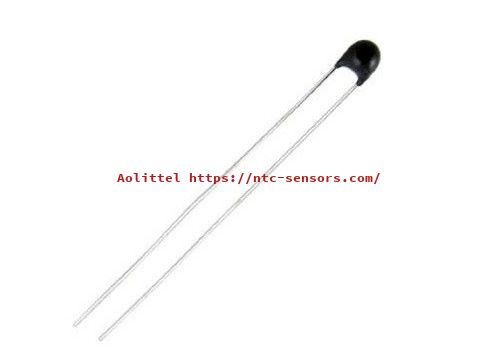

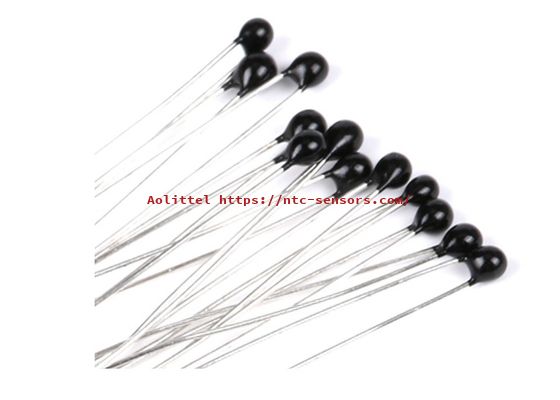

Interchangeable Precision Radial Epoxy Coated Thermometrics NTC Thermistor 2.7KOhm 3950 For Car Automotive Electronics

Interchangeable Precision Radial Epoxy Coated Thermometrics NTC Thermistor 2.7KOhm 3950 For Car Automotive Electronics

Product Tags :

Product Attributes :

Specifications

Product Category: NTC Thermistors

B Parameter: 3950K

Resistance At 25C: 2.7KOhm

Tolerance: 1%

Termination Style: Radial

Minimum Operating Temperature: -55C

Maximum Operating Temperature: +125C

Diameter: 2.5mm/3mm

Length: 25mm Min

Packaging: Bulk

Lead Spacing: 17/2.2mm

Lead Diameter: 0.3mm/0.45mm

Product Description

Interchangeable Precision Radial Epoxy Coated Thermometrics NTC Thermistor 2.7KOhm 3950 For Car Automotive Electronics

Short Describ

Epoxy Encapsulated Precision Interchangeable NTC Thermistor utilizing high stability pressed-disk ceramic sensor for general applications.

______________________________________________________________________________ Download________

Features

• Advanced NTC technology

• Temperature range from -55 °C to +125 °C

• Highly resistant to thermal shocks

• Small body diameter of max. 2.5 mm

• AEC-Q200 qualified

• Fast response time

• High sensitivity

• Delivery in bulk or in tape with extra long leads (for automatic mounting)

• Thermally Conductive Epoxy Coating for good mechanical strength and resistance to solvents

• Non-condensing Moisture Environments

• RoHS Compliance

• 2,700 ohm Resistance @ 25°C

• Interchangeable ±0.2°C, 0°C to 70°C

• Pressed Disk Ceramic Sensor
