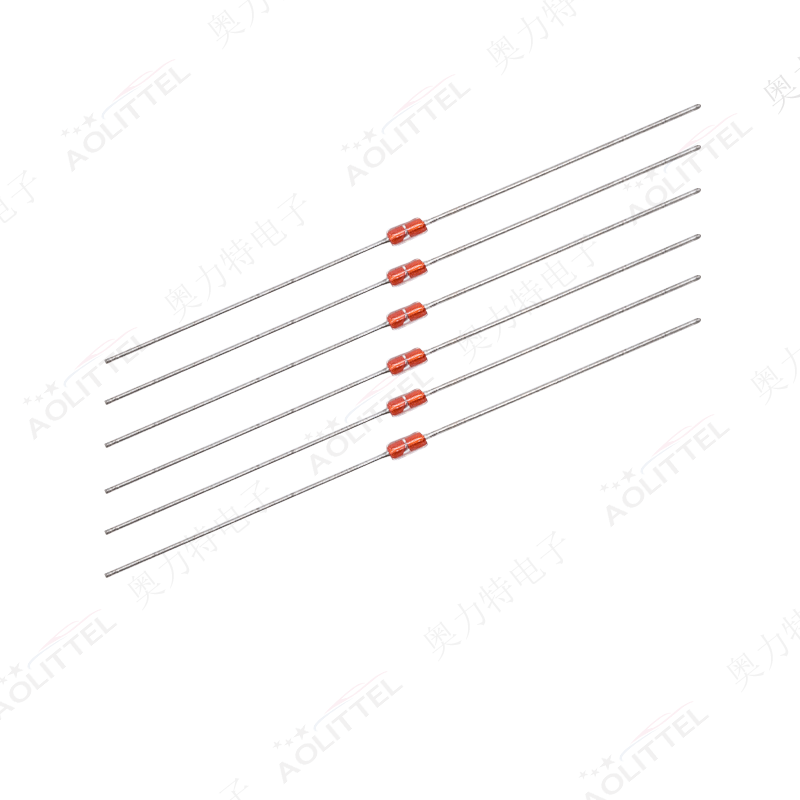

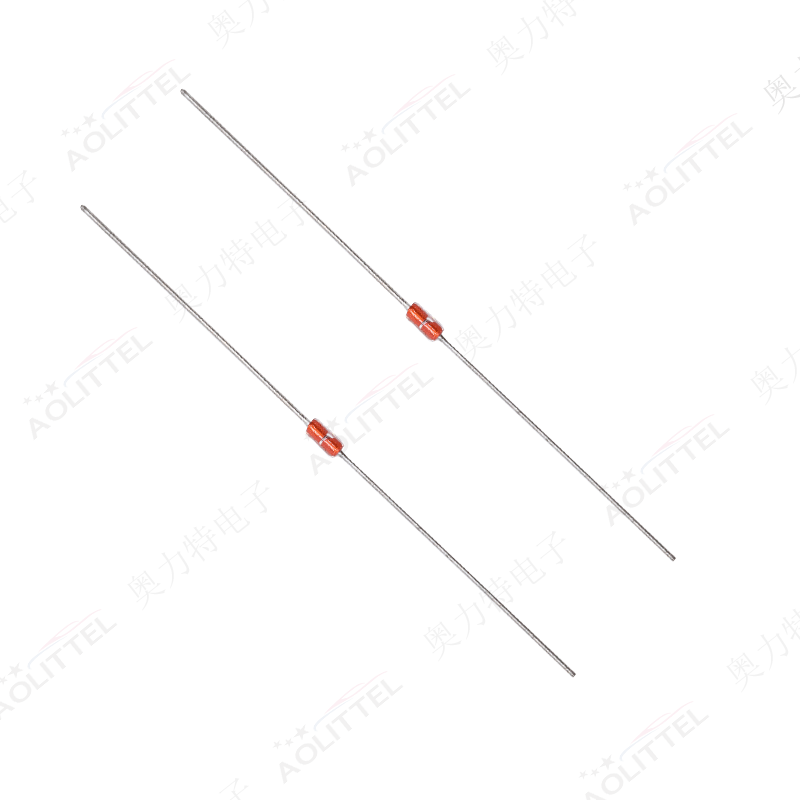

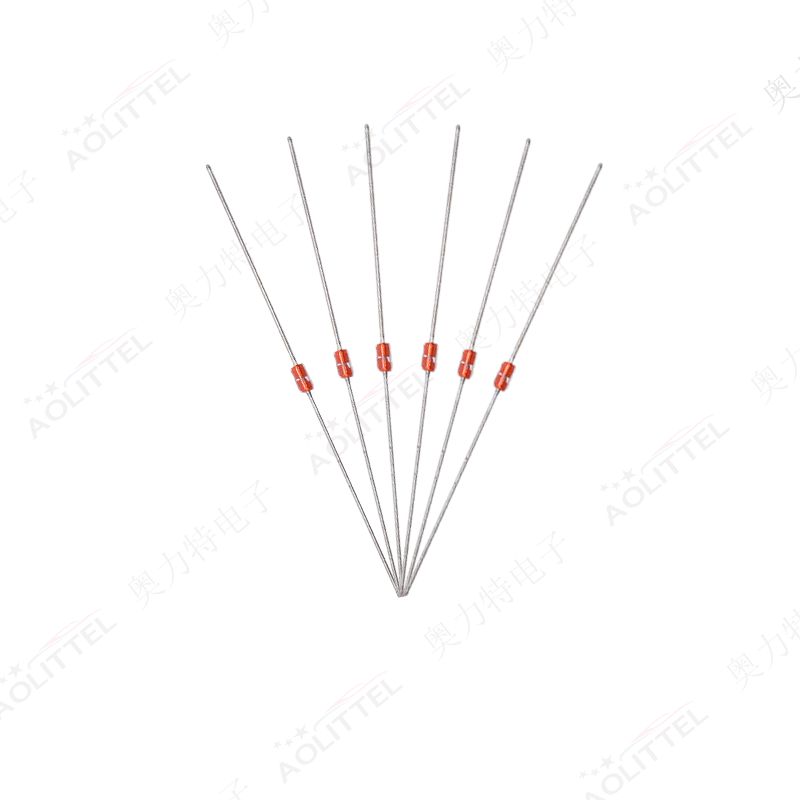

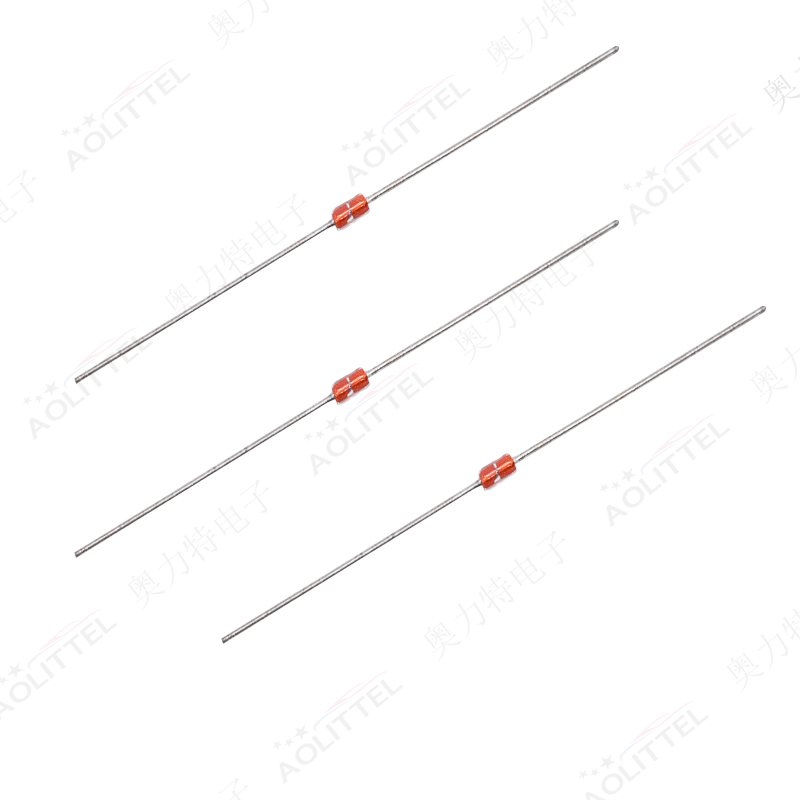

Thermistor mf58b diode NTC glass package


characteristic:

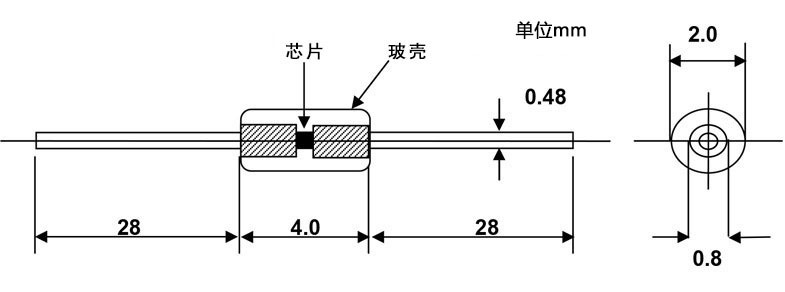

1. Mf58b series products are axial packaging type
2. Good stability and high reliability
3. Wide resistance range: 0.1 ~ 500K Ω
4. High precision of resistance value and b value
5. Glass packaging, which can be used under harsh conditions such as high temperature and high humidity
6. Small volume, solid structure and easy for automatic installation
7. Operating temperature range: - 45 ~ + 300 ℃
8. Fast thermal sensing and high sensitivity

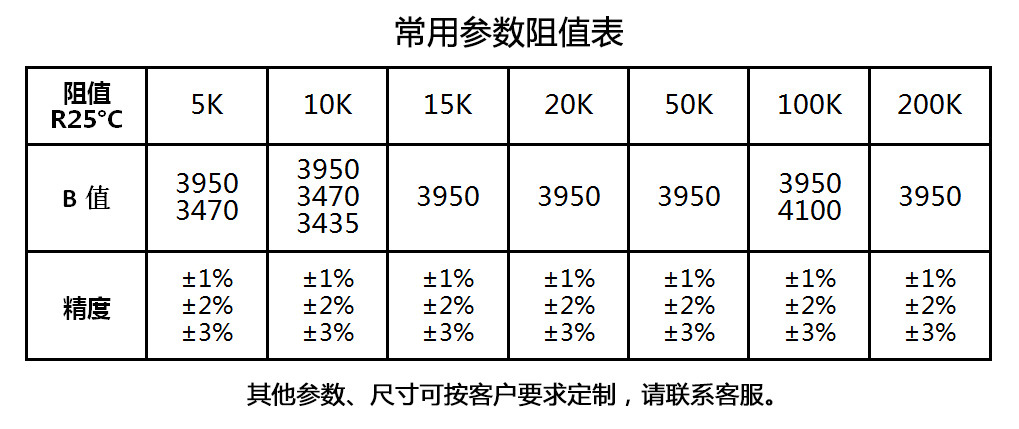

General parameters:
1. Resistance 103-10k Ω, 503-50k Ω, 104-100k Ω
2. Accuracy: 1%, 2%, 3%, 5%
3. B value 3950, 3435, 3380

MF58  B --503  F  3950  F  B

     ①    ②    ③   ④   ⑤    ⑥  ⑦



① MF58 series: glass sealed precision NTC thermistor
② Material type of lead out end: b-axial tinned copper clad steel wire (CP wire)
③ Nominal resistance R25: 503-50k Ω 103-10k Ω
④ Tolerance range: F - ± 1% G - ± 2% H - ± 3% J - ± 5% k - ± 10%
⑤ B value: 3950-3950k 3380-3380k
⑥ B value tolerance: F - ± 1% G - ± 2%
⑦ B value category: a - 25 / 50 ℃ B - 25 / 85 ℃

(special parameters can be customized, please consult customer service)

Function:
Temperature measurement and temperature protection
Application scope:
1. Temperature control and temperature detection of induction cooker, electric pressure cooker, electric rice cooker, electric oven, disinfection cabinet, water dispenser, microwave oven, electric heater and other household appliances.
