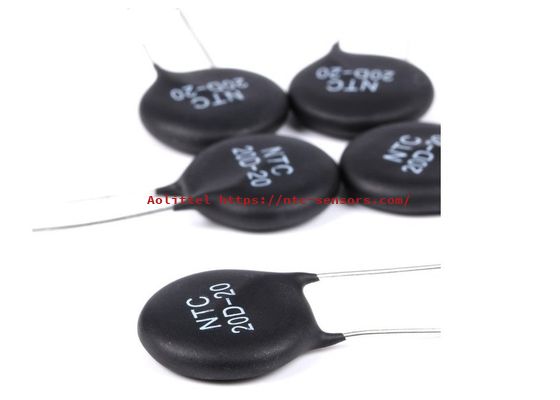

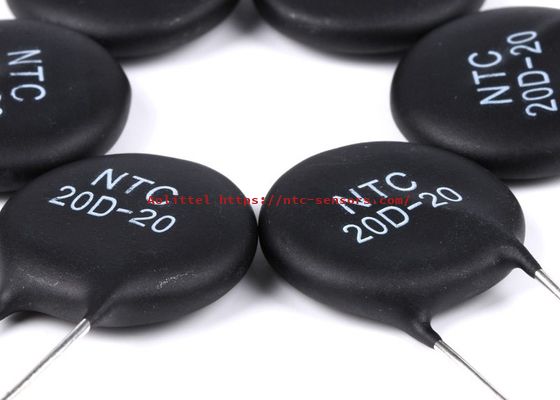

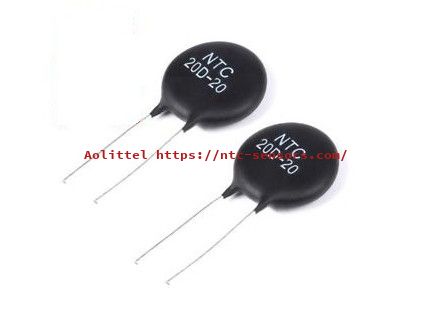

Current Limiting Thermistor NTC Chip Disc Inrush Current Limiter ICL 20D-20 20mm 5 Amp 20R For Power Supply Ballast 552
Brief Introduction
MF72 series NTC thermistor devices for limiting surge current are made of a specially formulated metal oxide ceramic material and in the form of radial resin coated that is capable of limiting high surge current.Applying power NTC thermistor in the power supply loop is the most simple, convenient and effective measure to restrain switch-on surge current and protect electronic equipment.
Main parameters and dimension
| Type |
Rated Resistance |
(A) | D | L | F |
Dimensions (Unit:mm) |
|
|
Max. Steady State Current |
Dmax | Lmin | F±1 | Tmax | d | ||
| 5D-5 | 5 | 1 | 6.5 | 25 | 5.0/2.5 | 5 | 0.55/0.45 |
| 10D-5 | 10 | 0.7 | 6.5 | 25 | 5.0/2.5 | 5 | 0.55/0.45 |
| 20D-5 | 20 | 0.5 | 6.5 | 25 | 5.0/2.5 | 5 | 0.55/0.45 |
| 5D-7 | 5 | 2 | 8.5 | 25 | 5 | 5 | 0.55 |
| 8D-7 | 8 | 1 | 8.5 | 25 | 5 | 5 | 0.55 |
| 10D-7 | 10 | 1 | 8.5 | 25 | 5 | 5 | 0.55 |
| 12D-7 | 12 | 1 | 8.5 | 25 | 5 | 5 | 0.55 |
| 16D-7 | 16 | 0.7 | 8.5 | 25 | 5 | 5 | 0.55 |
| 20D-7 | 20 | 0.6 | 8.5 | 25 | 5 | 5 | 0.55 |
| 22D-7 | 22 | 0.6 | 8.5 | 25 | 5 | 5 | 0.55 |
| 33D-7 | 33 | 0.5 | 8.5 | 25 | 5 | 5 | 0.55 |
| 3D-9 | 3 | 4 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 4D-9 | 4 | 4 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 5D-9 | 5 | 3 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 6D-9 | 6 | 2 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 8D-9 | 7 | 2 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 10D-9 | 10 | 2 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 12D-9 | 12 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 16D-9 | 16 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 20D-9 | 20 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 22D-9 | 22 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 30D-9 | 30 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 33D-9 | 33 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 50D-9 | 50 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 60D-9 | 60 | 0.8 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 2.5D-11 | 2.5 | 5 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 3D-11 | 3 | 5 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 4D-11 | 4 | 4 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 5D-11 | 5 | 4 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 6D-11 | 6 | 3 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 8D-11 | 8 | 3 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 10D-11 | 10 | 3 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 12D-11 | 12 | 2 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 16D-11 | 16 | 2 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 20D-11 | 20 | 2 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 22D-11 | 22 | 2 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 30D-11 | 30 | 1.5 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 33D-11 | 33 | 1.5 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 1.3D-13 | 1.3 | 7 | 14.5 | 25 | 7.5 | 6 | 0.78 |
| 1.5D-13 | 1.5 | 6 | 14.5 | 25 | 7.5 | 6 | 0.78 |
