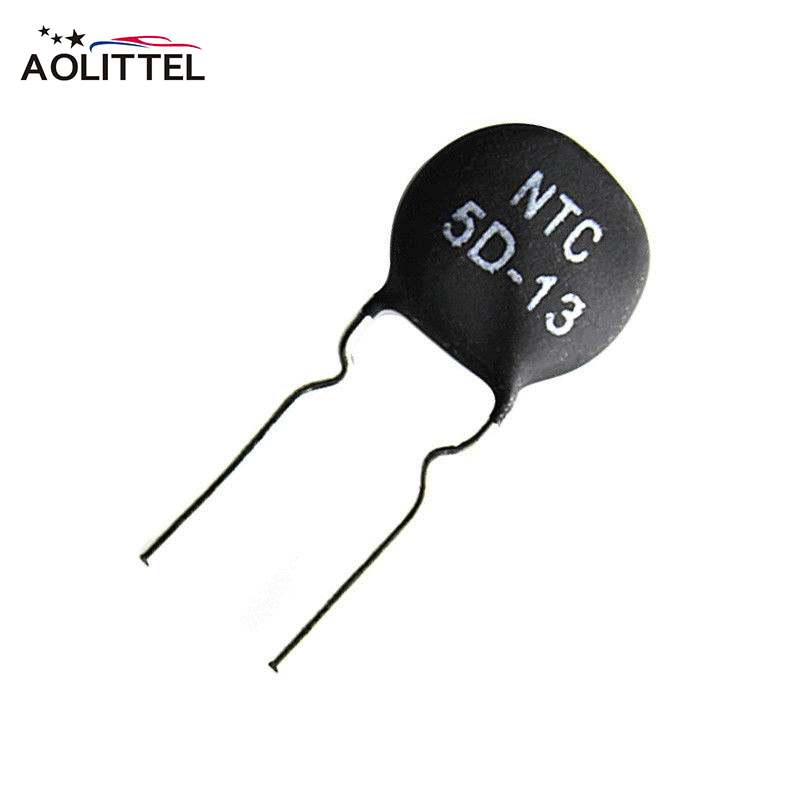

MF72 5D-13 5ohm NTC Inrush Current Limiter Power Supply 5A NTC Type Thermistor
MF72 5D-13 5ohm NTC Inrush Current Limiter Power Supply 5A NTC Type Thermistor MF72 5D-13 5ohm NTC Inrush Current Limiter Power Supply 5A NTC Type Thermistor MF72 5D-13 5ohm NTC Inrush Current Limiter Power Supply 5A NTC Type Thermistor MF72 5D-13 5ohm NTC Inrush Current Limiter Power Supply 5A NTC Type Thermistor MF72 5D-13 5ohm NTC Inrush Current Limiter Power Supply 5A NTC Type Thermistor

MF72 5D-13 5ohm NTC Inrush Current Limiter Power Supply 5A NTC Type Thermistor

Product ID : NTC Thermistor 5D-13
Product Tags :
Product Attributes :

Inrush Current Limiter Power NTC Thermistor MF72 5D-13 5Ohm 13mm 5A For Power Supply





III Description Of Power NTC Thermistor



Inrush Current Limiters are used to reduce the inrush current that occurs when an electrical device is switched on. High inrush current is the result of the maximum instantaneous input current drawn by an electrical device during the initial power up. As technology continues to advance, most systems today run efficiently and maintain a low impedance which in turn contributes to high inrush current.

Product Description

II Size Of Power NTC Thermistor (mm)



MF72 5D-13 5ohm NTC Inrush Current Limiter Power Supply 5A NTC Type Thermistor 1

Marking

 NTC

5D-13
D less than 15.5mm
T less than 7.0mm
F 7.5+/-1.0mm
d 0.75+/-0.06mm
L 5.0+/-0.5mm
Coating PF Resin
Color Black
Lead Tin Plated Steel Wire
Lead Shape Informing





III Electrical Parameters Of Power NTC Thermistor



Rated Zero-Power Resistance 5 Ohm
Material Constant B25/85 2800 K
Max. Steady State Current 5 A
Thermal Dissipation Constant More than 13mW/°C
Thermal Time Constant Less than 70sec
Operating Temperature Range -40~+150C





IV Series Specification Of Power NTC Thermistor



<td

Part NO. R25
(Ω)		 Max.
Steady State Current
(A)		 Approx.R of Max.Cur
(Ω)		 Dissi,Coef.
(mW/℃)		 Thermal time Constant
(S)		 Max. Load
Capacitance
in uF

Operating

Temp.
(℃)
120 VAC 240 VAC
MF72-5D5 5 1 0.353 6 20 188 47 -55 to +200
MF72-10D5 10 0.7 0.771 6 20 188 47
MF72-60D5 60 0.3 1.878 6 18 188 47
MF72-200D5 200 0.1 18.70 6 18 88 22
MF72-5D7 5 2 0.283 10 30 224 56
MF72-8D7 8 1 0.539 9 28 224 56
MF72-10D7 10 1 0.616 9 27 224 56
MF72-12D7 12 1 0.816 9 27 224 56
MF72-16D7 16 0.7 1.003 9 27 224 56
MF72-22D7 22 0.6 1.108 9 27 224 56
MF72-33D7 33 0.5 1.485 10 28 188 47
MF72-200D7 200 0.2 11.65 11 28 188 47
MF72-3D9 3 4 0.120 11 35 272 68
MF72-4D9 4 3 0.190 11 35 272 68
MF72-5D9 5 3 0.210 11 34 272 68
MF72-6D9 6 2 0.315 11 34 272 68
MF72-8D9 8 2 0.400 11 32 400 100
MF72-10D9 10 2 0.458 11 32 400 100
MF72-12D9 12 1 0.652 11 32 400 100
MF72-16D9 16 1 0.802 11 31 400 100
MF72-20D9 20 1 0.864 11 30 600 150
MF72-22D9 22 1 0.950 11 30 600 150
MF72-30D9 30 1 1.022 11 30 600 150
MF72-33D9 33 1 1.124 11 30 600 150
MF72-50D9 50 1 1.252 11 30 600 150
MF72-60D9 60 0.8 1.502 11 30 600 150
MF72-80D9 80 0.8 2.010 11 30 272 68
MF72-120D9 120 0.8 3.015 11 30 272 68
MF72-200D9 200 0.5 5.007 11 32 188 47
MF72-400D9 400 0.2 30.30 11 32 188 47
MF72-2.5D11 2.5 5 0.095 13 43 600 150
MF72-3D11 3 5 0.100 13 43 600 150
MF72-4D11 4 4 0.150 13 44 600 150
MF72-5D11 5 4 0.156 13 45 600 150
MF72-6D11 6 3 0.240 13 45 800 220
MF72-8D11 8 3 0.255 14 47 800 220
MF72-10D11 10 3 0.275 14 47 800 220
MF72-12D11 12 2 0.462 14 48 800 220
MF72-16D11 16 2 0.470 14 50 800 220
MF72-20D11 20 2 0.512 15 52 800 220
MF72-22D11 22 2 0.563 15 52 800 220
MF72-30D11 30 1.5 0.667 15 52 800 220
MF72-33D11 33 1.5 0.734 15 52 800 220
MF72-50D11 50 1.5 1.021 15 52 800 220
MF72-60D11 60 1.5 1.215 15 52 800 220
MF72-80D11 80 1.2 1.656 15 52 600 150
MF72-1.3D13 1.3 7 0.062 13 60 880 220
MF72-1.5D13 1.5 7 0.073 13 60 880 220
MF72-2.5D13 2.5 6 0.088 13 60 880 220
MF72-3D13 3 6 0.092 14 60 880 220
MF72-4D13 4 5 0.120 15 67 880 220
MF72-5D13 5 5 0.125 15 68 880 220
MF72-6D13 6 4 0.170 15 65 880 220
MF72-7D13 7 4 0.188 15 65 1320 330
MF72-8D13 8 4 0.194 15 60 1320 330
MF72-10D13 10 4 0.206 15 65 1320 330
MF72-12D13 12 3 0.316 16 65 1320 330
MF72-15D13 15 3 0.335 16 60 1320 330
MF72-16D13 16 3 0.338 16 60 1320 330
MF72-20D13 20 3 0.372 16 65 1320 330
MF72-30D13 30 2.5 0.517 16 65 1320 330
MF72-47D13 47 2 0.810 17 65 880 220
MF72-120D13 120 1.2 2.124 16 65 880 220
MF72-1.3D15 1.3 8 0.048 18 68 1320 330
MF72-1.5D15 1.5 8 0.052 19 69 1320 330
MF72-3D15 3 7 0.075 18 76 1320 330
MF72-5D15 5 6 0.112 20 76 1880 470
MF72-6D15 6 5 0.155 20 80 1880 470
MF72-7D15 7 5 0.173 20 80 1880 470
MF72-8D15 8 5 0.178 20 80 1880 470
MF72-10D15 10 5 0.180 20 75 1880 470
MF72-12D15 12 4 0.250 20 75 1880 470
MF72-15D15 15 4 0.268 21 85 1880 470
MF72-16D15 16 4 0.276 21 70 1880 470
MF72-20D15 20 4 0.288 17 86 1880 470
MF72-30D15 30 3.5 0.438 18 75 1320 330
MF72-47D15 47 3 0.680 21 86 1320 330
MF72-120D15 120 1.8 1.652 22 87 1320 330
MF72-0.7D20 0.7 11 0.018 25 89 1880 470
MF72-1.3D20 1.3 9 0.037 24 88 1880 470
MF72-3D20 3 8 0.055 24 88 1880 470
MF72-5D20 5 7 0.087 23 87 2240 560
MF72-6D20 6 6 0.113 25 103 2240 560
MF72-8D20 8 6
