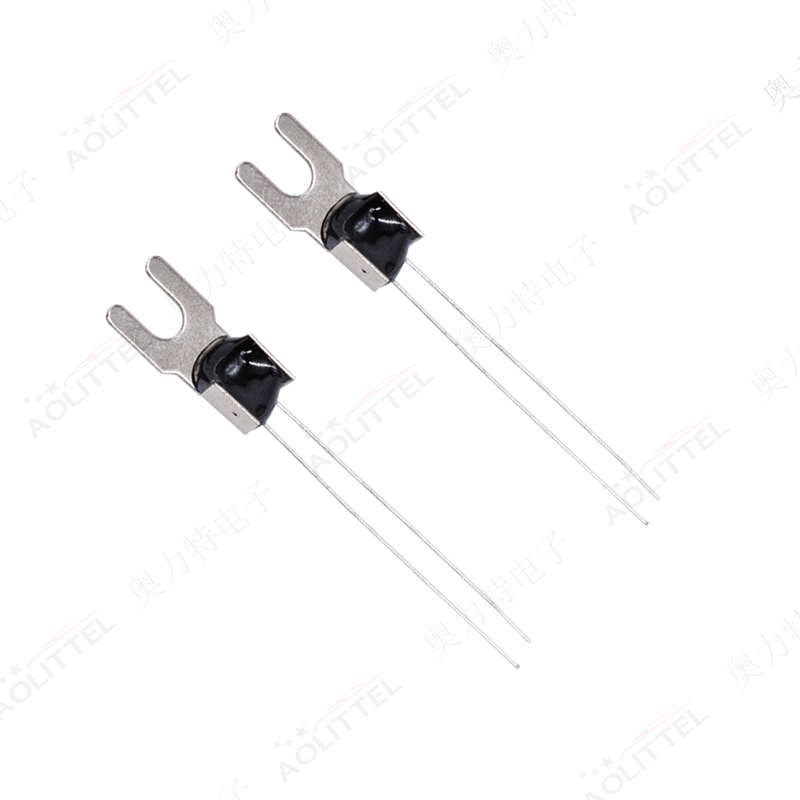

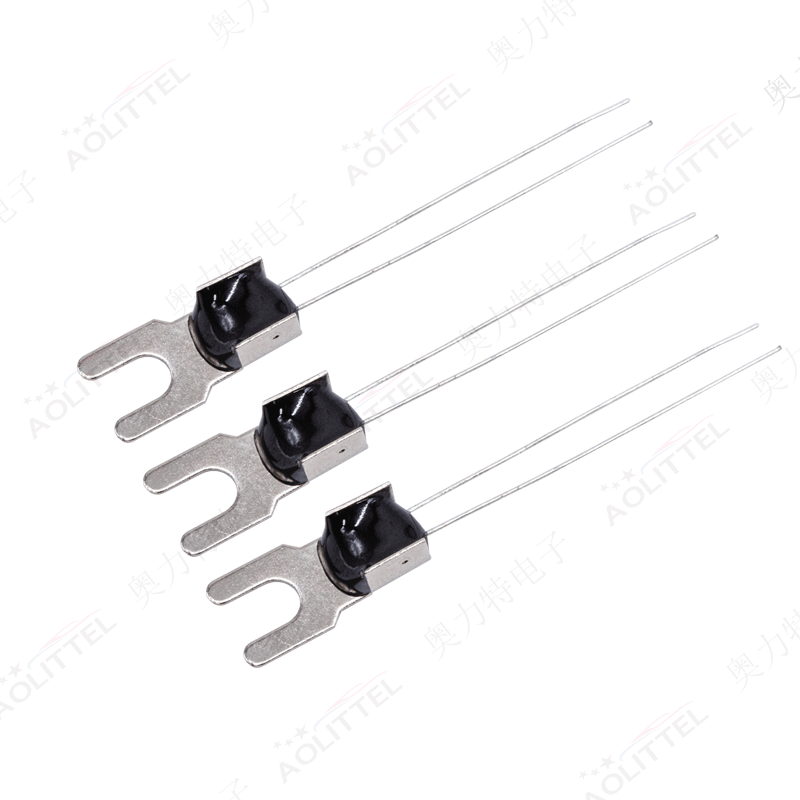

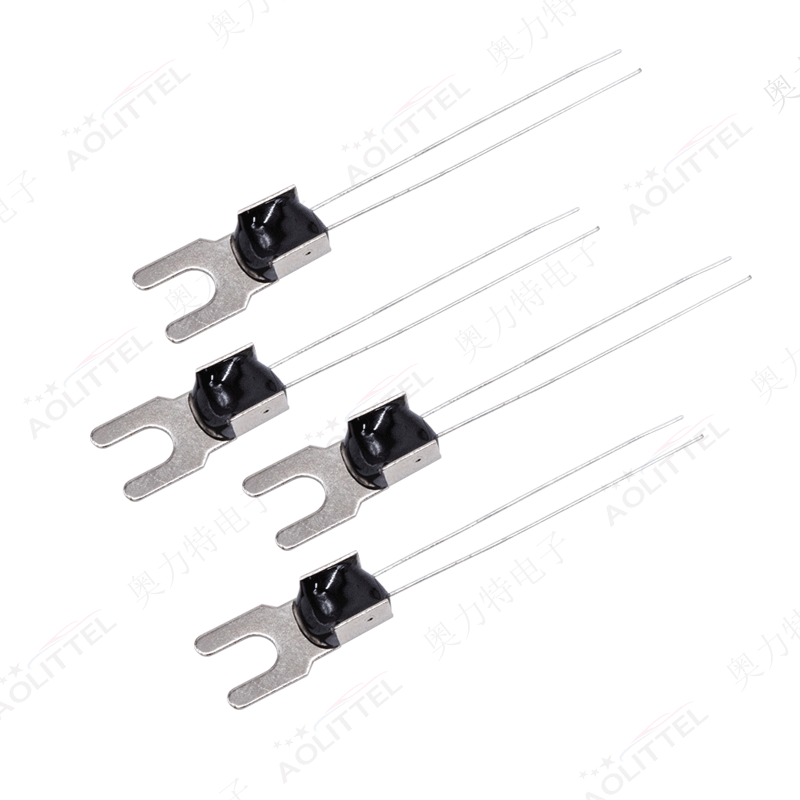

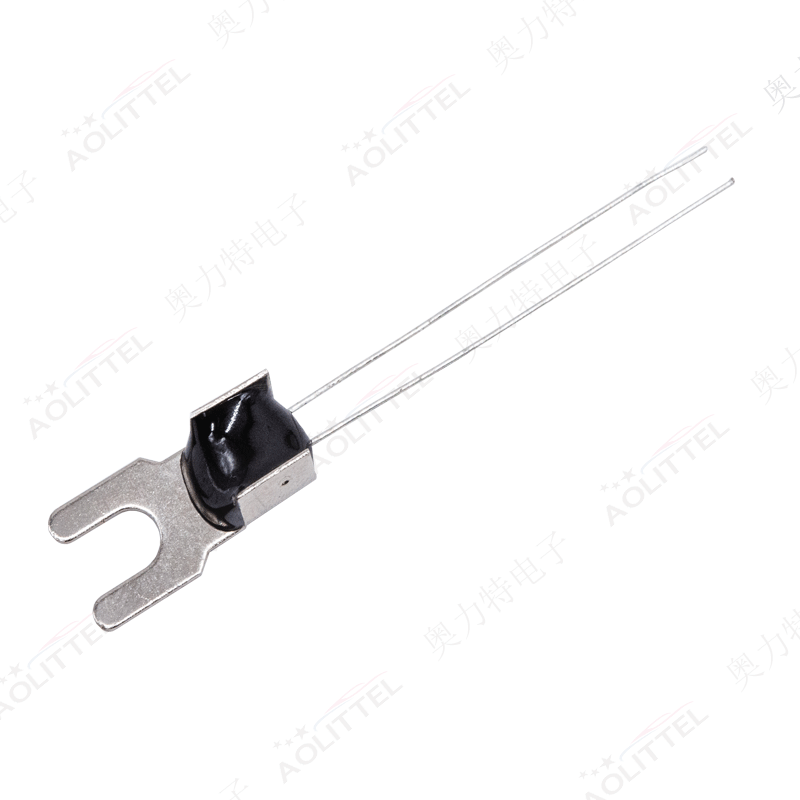

U-terminal probe plug-in thermistor

U-terminal probe plug-in thermistor PTC fixed wiring ring


characteristic:

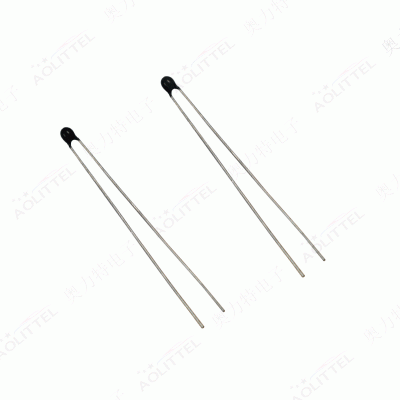

1. Mf53 series products are NTC thermistor temperature sensors
2. Wide resistance range: 10K Ω ~ 100k Ω
3. The resistance value and b value have high precision, good consistency and interchangeability
4. Good insulation, high reliability and fast reflection speed,
5. The double-layer sealing process is adopted, which has good insulation sealing, mechanical collision resistance, bending resistance and high reliability
6. Be able to work stably for a long time (annual resistance drift rate ≤ 1 ‰)
7. It can be packaged according to the installation conditions used, which is convenient for users to install
8. Operating temperature range: - 40 ~ 125 ℃

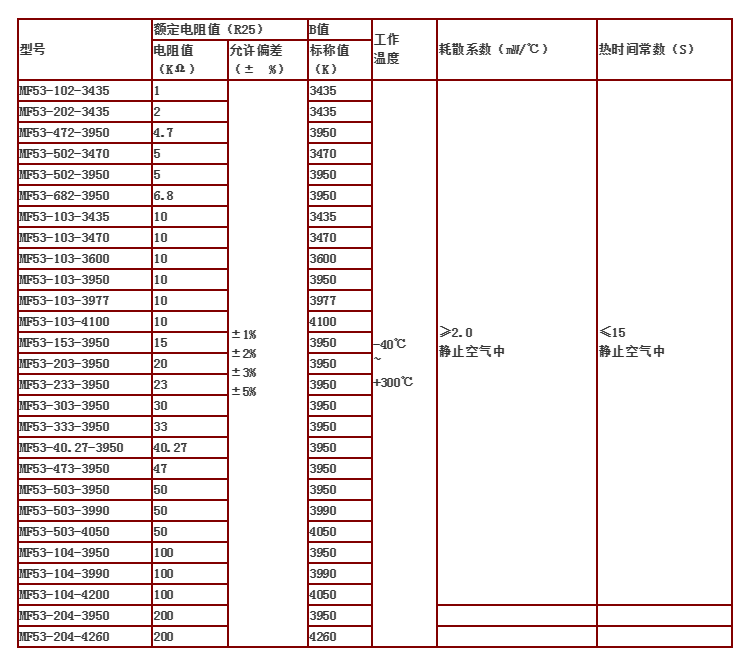

General parameters:
1. Resistance 103-10k Ω, 104-100k Ω
2. Accuracy: 1%, 2%, 3%, 5%
3. B value 3950, 3435
(special parameters can be customized, please consult customer service)

Function:
Temperature measurement and temperature protection
Application scope:
1. Temperature measurement and control of household air conditioner, automobile air conditioner, refrigerator, freezer, water heater, water dispenser, heater, dishwasher, disinfection cabinet, washing machine, dryer, dryer, medium and low temperature drying oven, thermostat and other occasions
