NTC enamelled wire temperature sensor
NTC enamelled wire temperature sensor NTC enamelled wire temperature sensor NTC enamelled wire temperature sensor NTC enamelled wire temperature sensor NTC enamelled wire temperature sensor

NTC enamelled wire temperature sensor

Product ID : MF52B-104F-3950
Product Tags :
Product Attributes :

characteristic:
1. Mf52 series products are NTC thermistor temperature sensors
2. Wide resistance range: 10K Ω ~ 100k Ω
3. The resistance value and b value have high precision, good consistency and interchangeability
4. Good insulation, high reliability and fast reflection speed,
5. The double-layer sealing process is adopted, which has good insulation sealing, mechanical collision resistance, bending resistance and high reliability
6. Be able to work stably for a long time (annual resistance drift rate ≤ 1 ‰)
7. It can be packaged according to the installation conditions used, which is convenient for users to install
8. Operating temperature range: - 40 ~ 125 ℃
General parameters:
1. Resistance 103-10k Ω - 104-100k Ω
2. Accuracy: 1%, 2%, 3%, 5%
3. B value 3950
(special parameters can be customized, please consult customer service)

Product Description

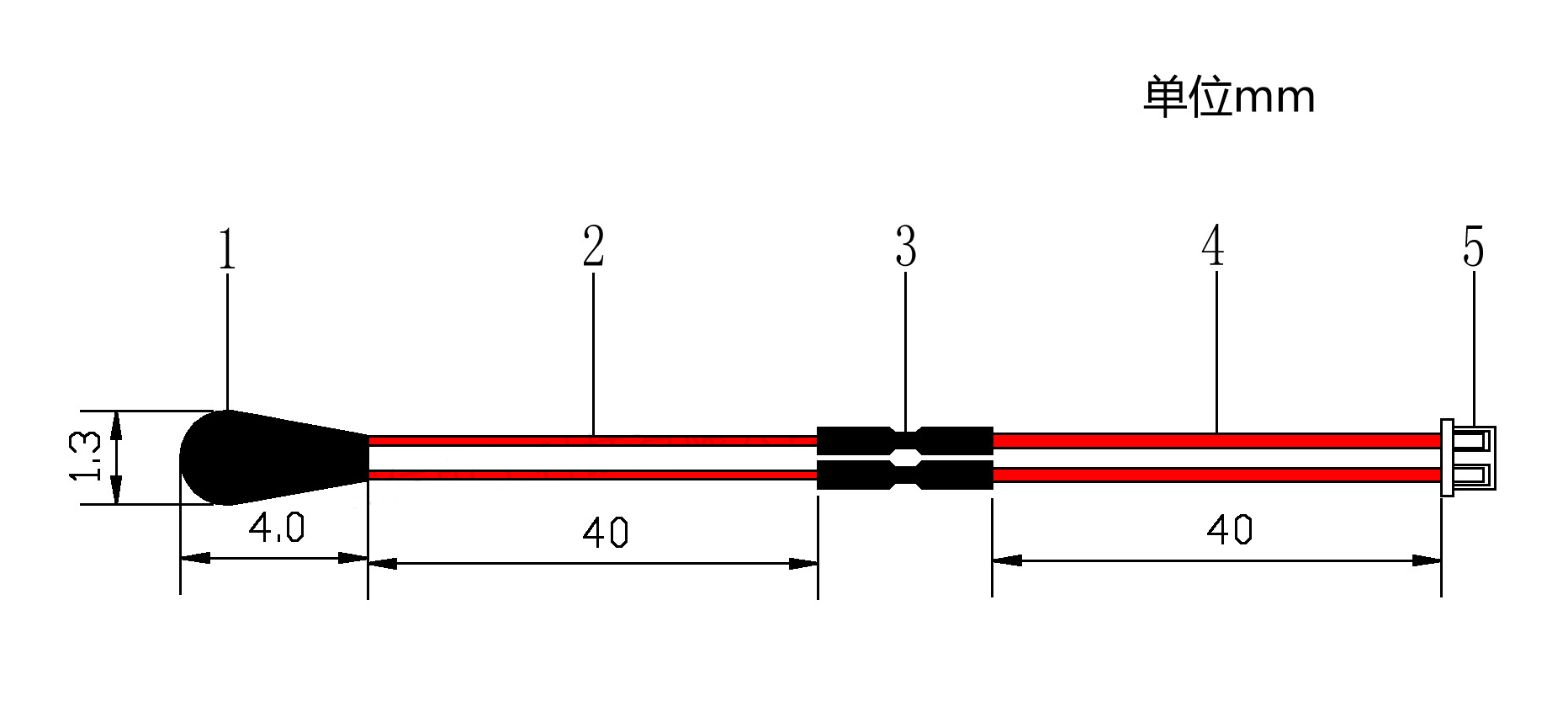

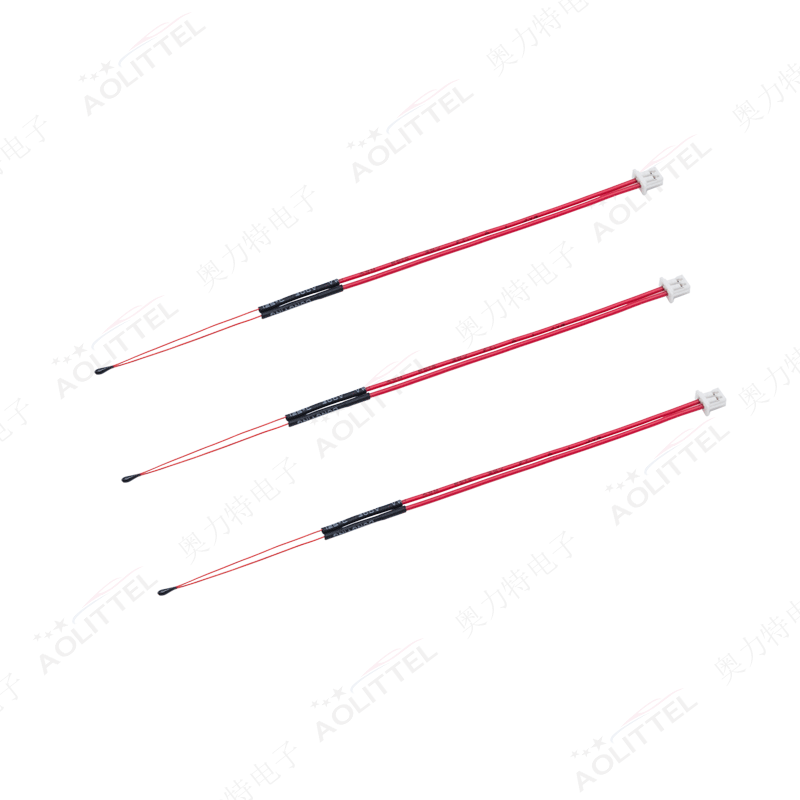

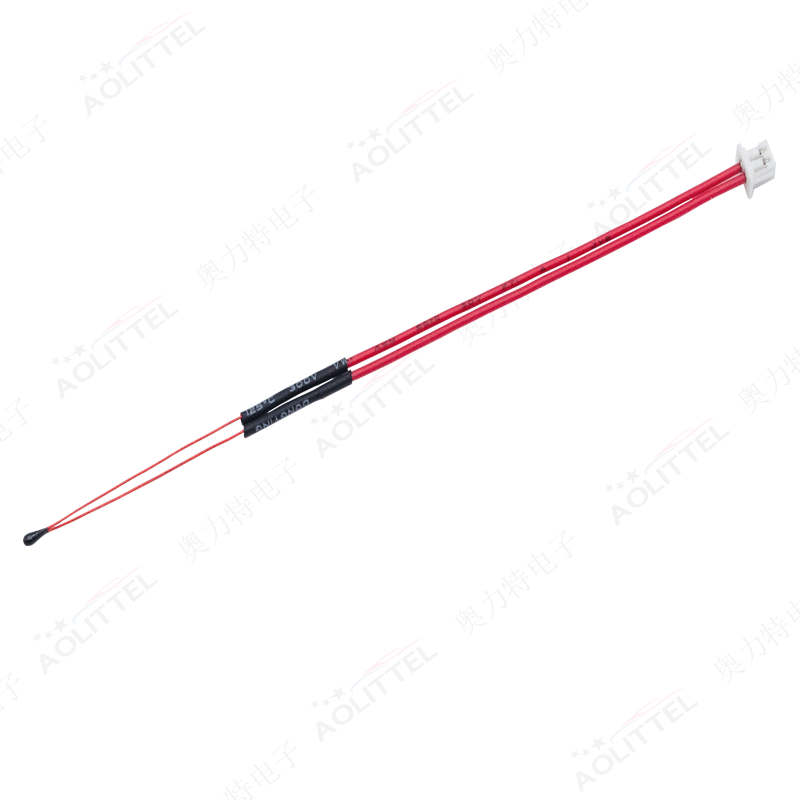

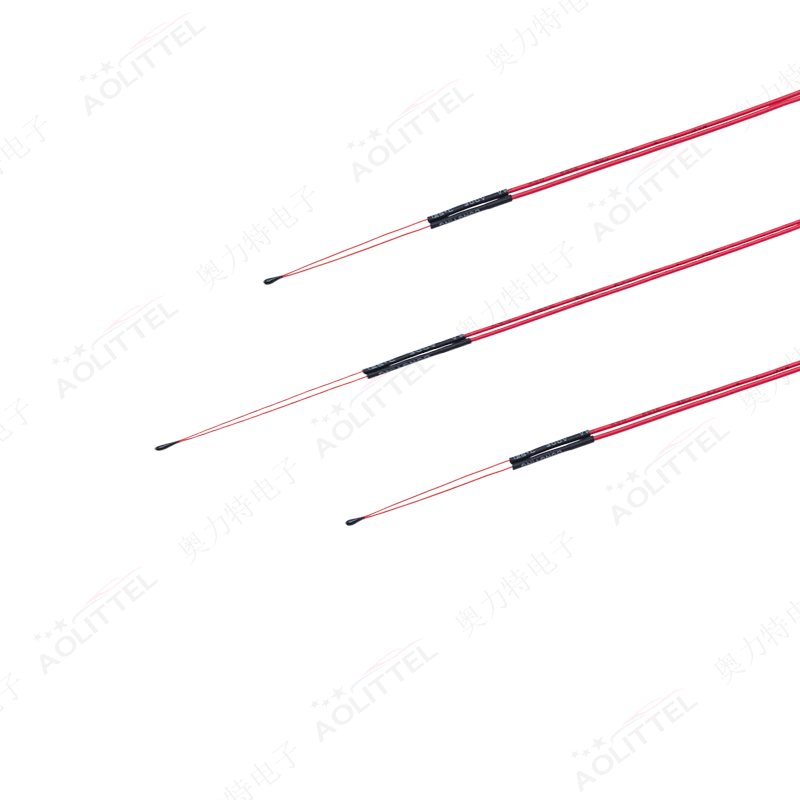

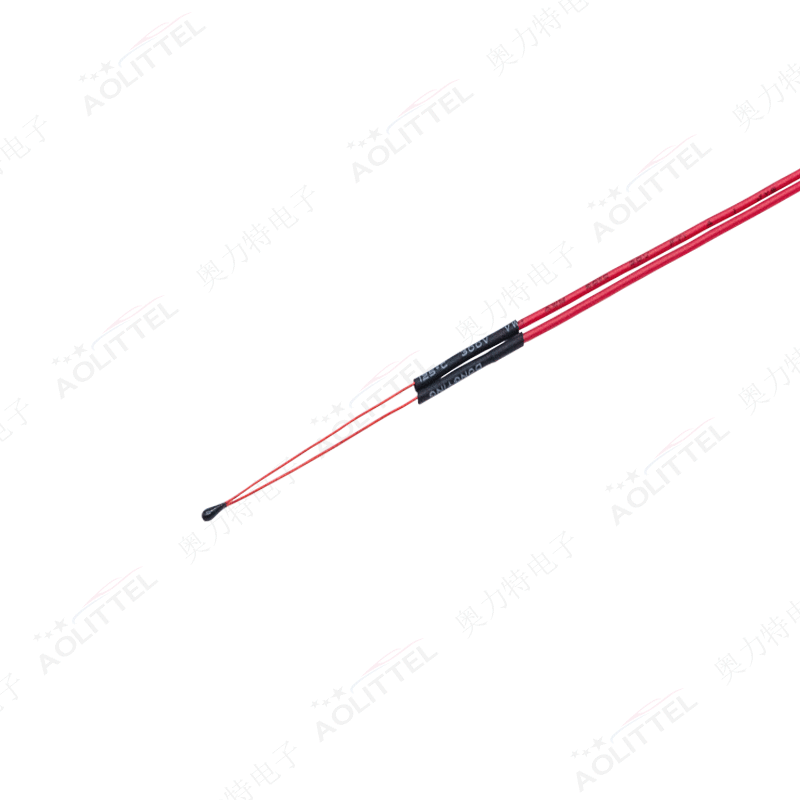

NTC enamelled wire temperature sensor lead with terminal thermistor temperature sensing probe



characteristic:
1. Mf52 series products are NTC thermistor temperature sensors
2. Wide resistance range: 10K Ω ~ 100k Ω
3. The resistance value and b value have high precision, good consistency and interchangeability
4. Good insulation, high reliability and fast reflection speed,
5. The double-layer sealing process is adopted, which has good insulation sealing, mechanical collision resistance, bending resistance and high reliability
6. Be able to work stably for a long time (annual resistance drift rate ≤ 1 ‰)
7. It can be packaged according to the installation conditions used, which is convenient for users to install
8. Operating temperature range: - 40 ~ 125 ℃

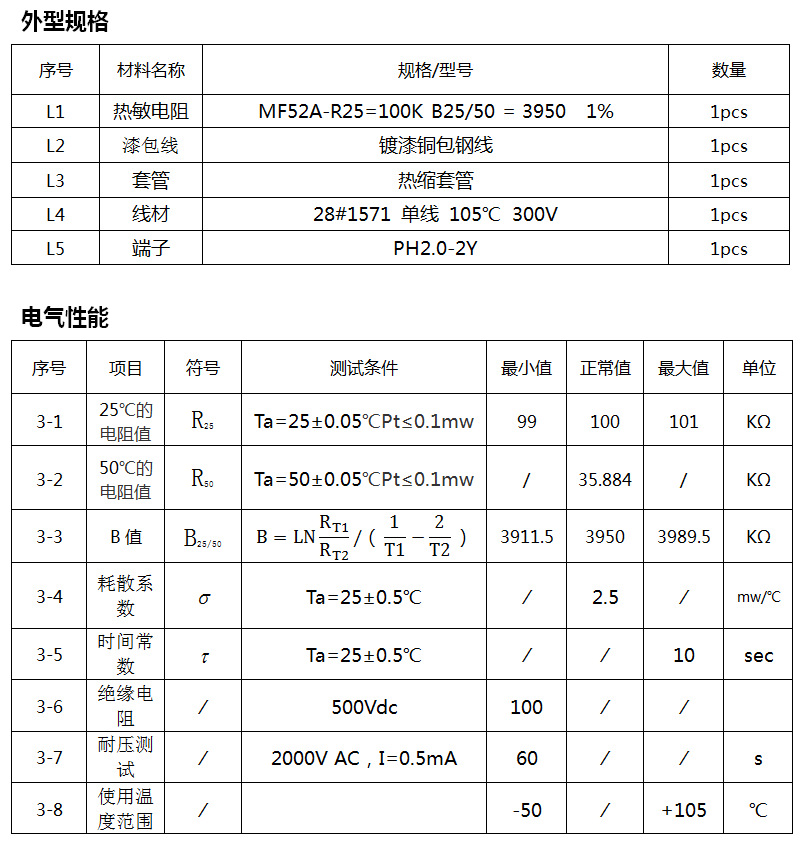

General parameters:
1. Resistance 103-10k Ω - 104-100k Ω
2. Accuracy: 1%, 2%, 3%, 5%
3. B value 3950

(special parameters can be customized, please consult customer service)

Function:
Temperature measurement and temperature protection
Application scope:
Air conditioning equipment, heating equipment, medical instruments, temperature control instruments, electronic gifts, electronic Thermohygrometer, automobile temperature measurement, electronic perpetual calendar, rechargeable battery pack, wireless charger, notebook battery, led shower, household appliances, computers, beauty products, digital instruments, lithium battery, switching power supply, adapter, LED power supply, LED driver Fan, desktop computer exhaust fan, alarm, etc.
