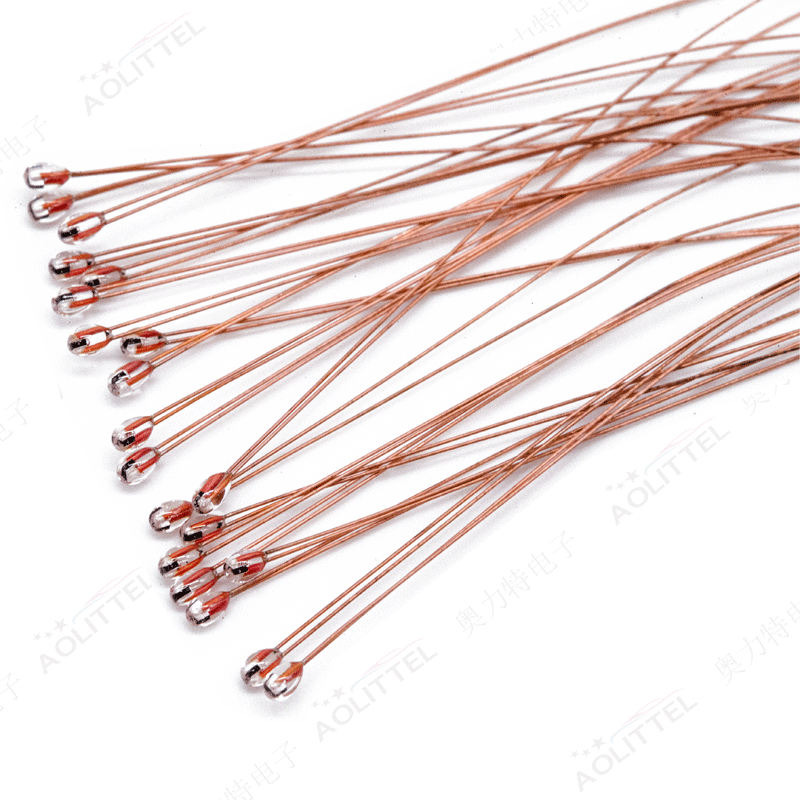

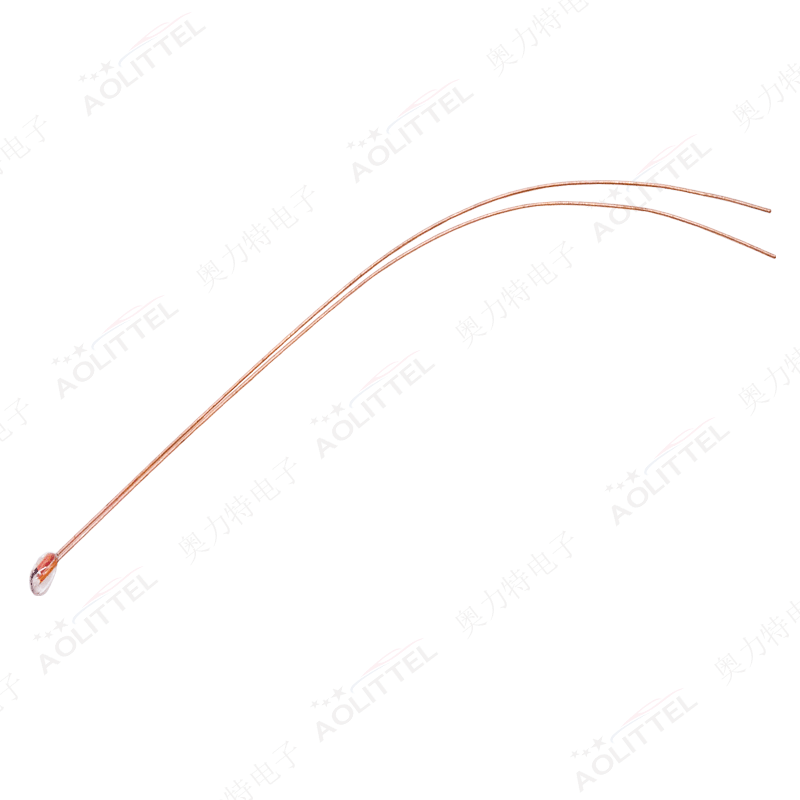

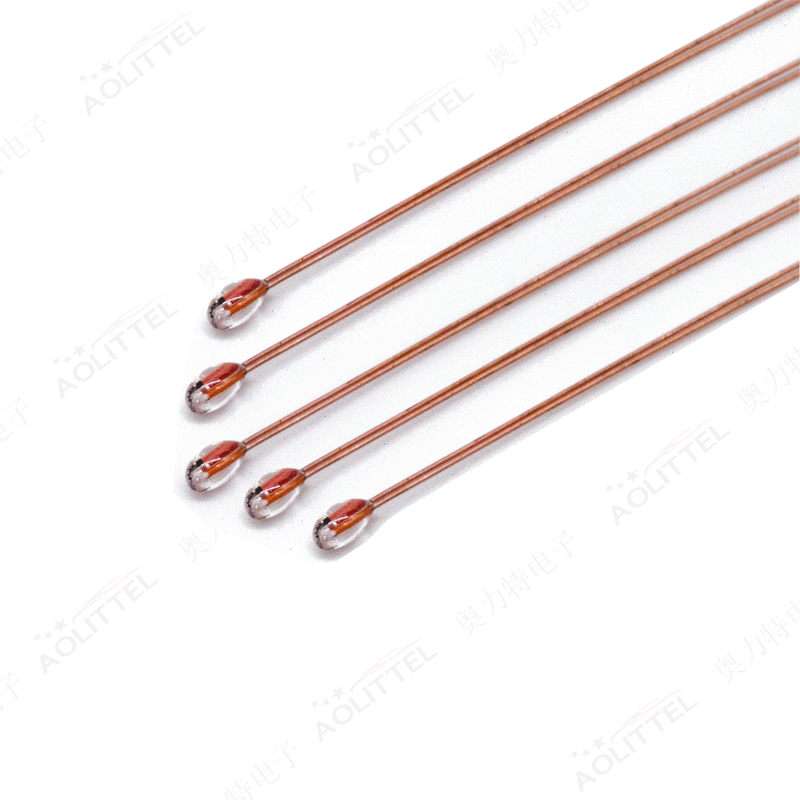

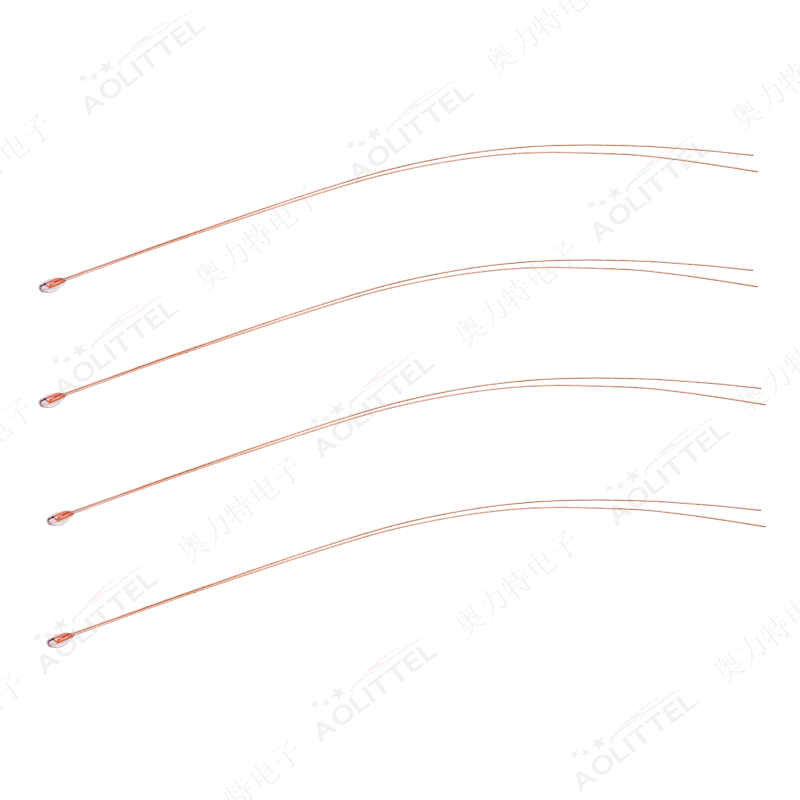

Single ended glass package mf58d ntc100k b3950 1% printer thermistor


characteristic:
1. High temperature resistance of glass package
2. Resistance range: 1 ~ 200K
3. Meet ROHS requirements
4. Convenient for automatic installation
5. High reliability and stable operation for a long time
6. Operating temperature range: - 40 ~ + 300 ℃

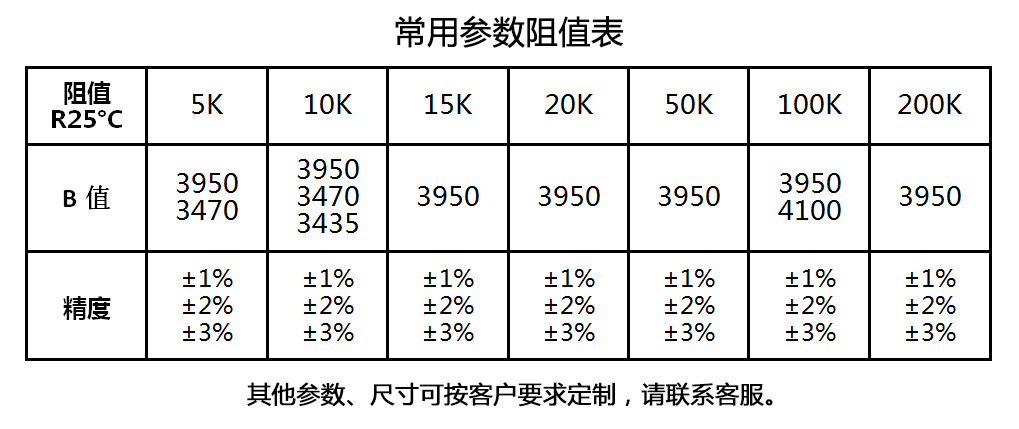

General parameters:
1. Resistance 103-10k Ω, 503-50k Ω, 104-100k Ω
2. Accuracy: 1%, 2%, 3%, 5%
3. B value 3950, 3435, 3380
(special parameters can be customized, please consult customer service)

Function:
Temperature measurement and temperature protection
Application scope:
1. Temperature control and temperature detection of induction cooker, electric pressure cooker, electric rice cooker, electric oven, disinfection cabinet, water dispenser, microwave oven, electric heater and other household appliances.
